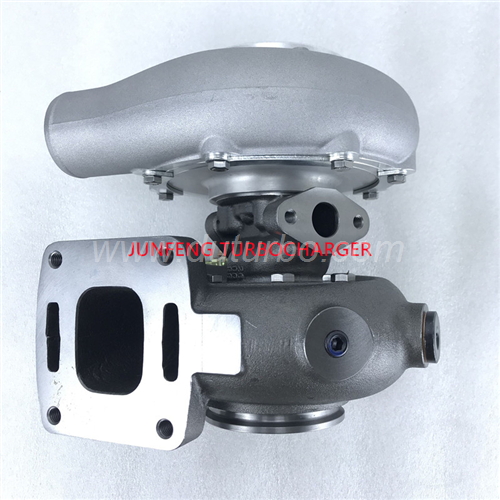

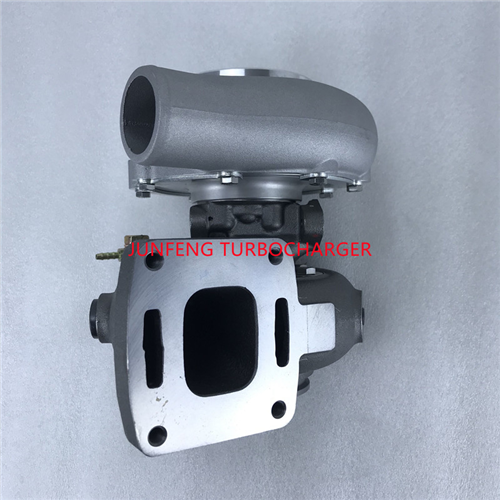

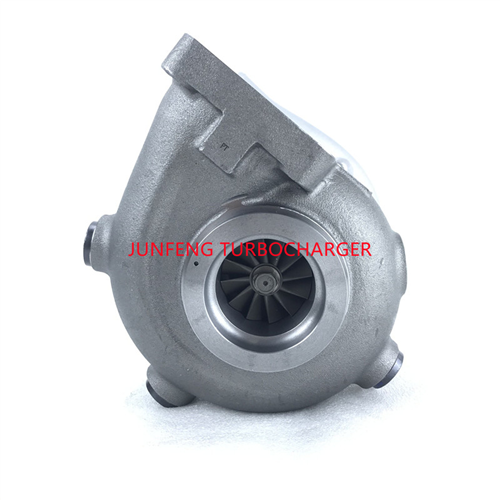

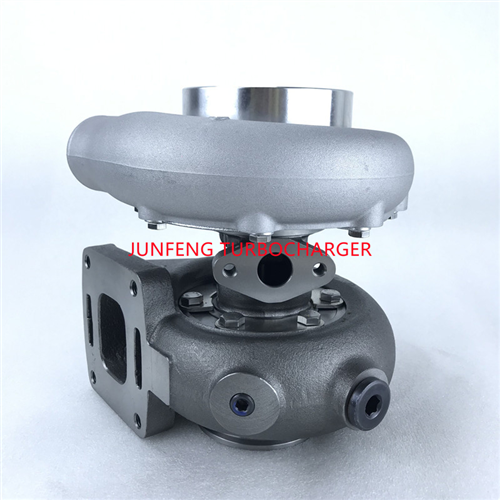

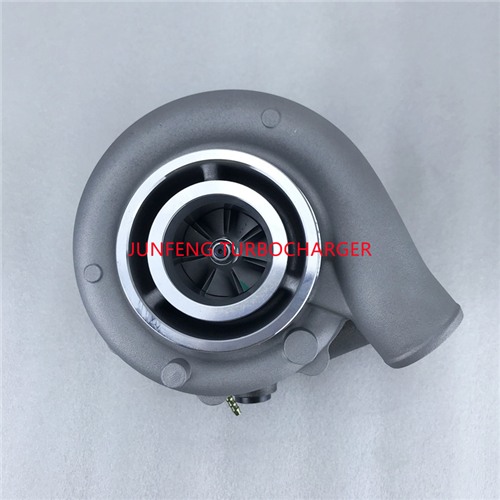

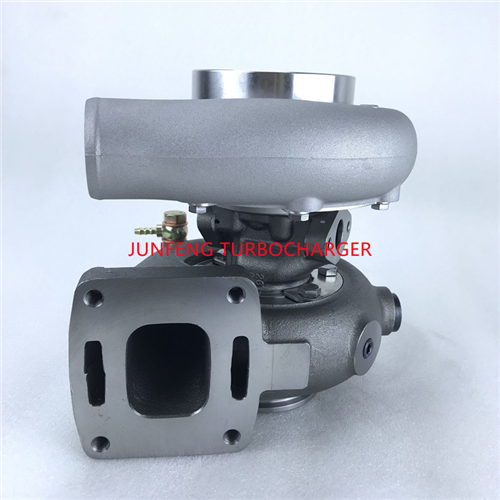

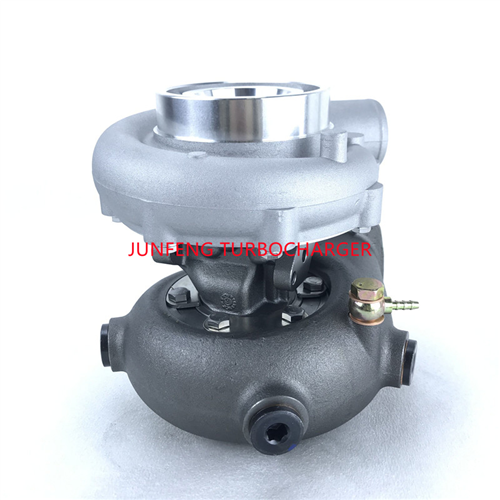

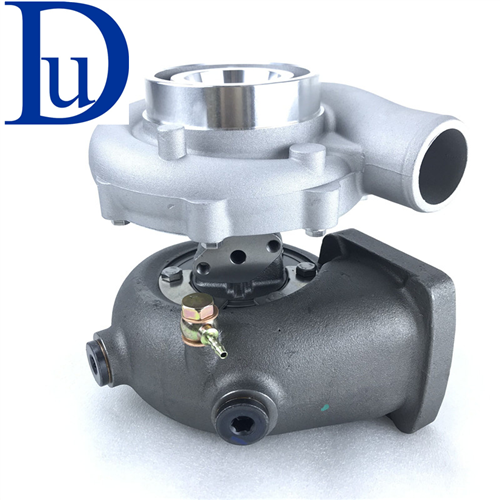

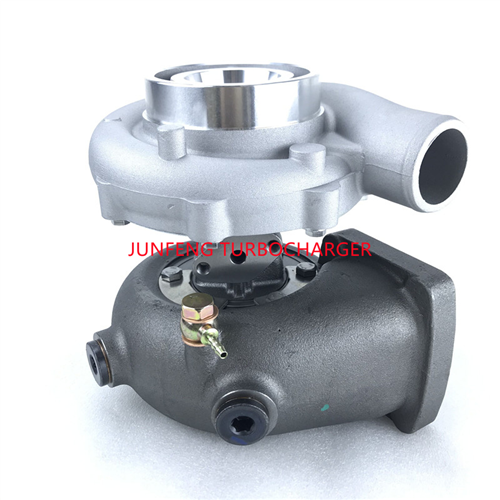

VM marine Ship 2.8t MD704LH Engine S200W Turbo 319411 319683

S200W Turbo 319411 319683
Model : S200W, S200W/64H12AACSM/0.50YR1
part number : 524 2109F, 35242109F, C5240136C
CHRA 319684
Displacement 2.8L, 2800 ccm
KW 147/200
OEM: 35242124F 12649700001 1264-970-0001 1264-988-0001, 1264 988 0001
Engine MR704LH MD704LH
Year 2004-07
Comp. Wheel 318077 (Ind. 42.77 mm, Exd. 63.55 mm, 7+7 Blades)(302040001)
Applications 2006- VM Industrial 2006- VM Marine, Ship MR704LH 2004-07 VM Ship with MD704LH Engine

Product Detail

Product Description

Part Number	319683
OE Number	524 2109F, 35242109F, C5240136C
Year	2004-07
Description	Ship Marine
Manufacturer Part Number	319411
CHRA	319684
Turbo Model	S200W, S200W/64H12AACSM/0.50YR1
Engine	MD704LH
Displacement	2.8L, 2800 ccm
KW	147/200
RPM Max	2300
Fuel	Diesel
Angle α (compressor housing)	245°
Angle β (turbine housing)	315°
Bearing Housing	319620 (668462)(318330)(303040004)(Oil Cooled)
Turbine Wheel	319445
Comp. Wheel	318077 (Ind. 42.77 mm, Exd. 63.55 mm, 7+7 Blades)(302040001)
Back plate	167744 (166537)(1253200300)(304020003)
Heat Shield	198761 (306010011)
Repair Kit	318382 (318383)(1253200750)(309200001)
Turbine Housing (Water Cooled)	319443
Compressor Cover	319618

Part Number	12649880001
Previous Version	1264-988-0001, 1264 988 0001
OE Number	35242124F
Year	2006-
Description	Marine
Manufacturer Part Number	12649700001, 1264-970-0001
CHRA	N/A
Turbo Model	S200W-64H12AACSM/0.50YK1
Engine	MR704LH
Displacement	2.8L, 2800 ccm
KW	212
Fuel	Diesel
Engine speed	3800 RPM
Angle α (compressor housing)	245°
Angle β (turbine housing)	315°
Bearing Housing	319620 (668462)(318330)(303040004)(Oil Cooled)
Turbine Wheel	318331 (Ind. 63.5 mm, Exd. 50.8 mm, 10 Blades)
Comp. Wheel	318077 (Ind. 42.77 mm, Exd. 63.55 mm, 7+7 Blades)(302040001)
Back plate	167744 (166537)(1253200300)(304020003)
Heat shield Number	198761 (306010011)
Repair Kit	12007110002
Turbine Housing (Water Cooled)	12641009600
Compressor Cover	396188
