  3. Caterpillar Engine Truck 3406E 3406C C16 TURBO 177148 S410G 0R7152
  • Caterpillar Truck 3406 S410G Turbo 177148 169227

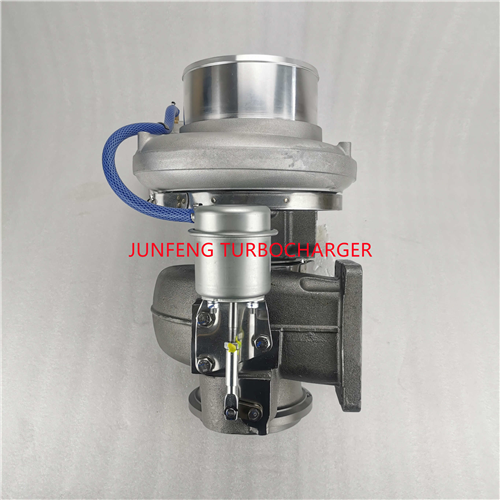

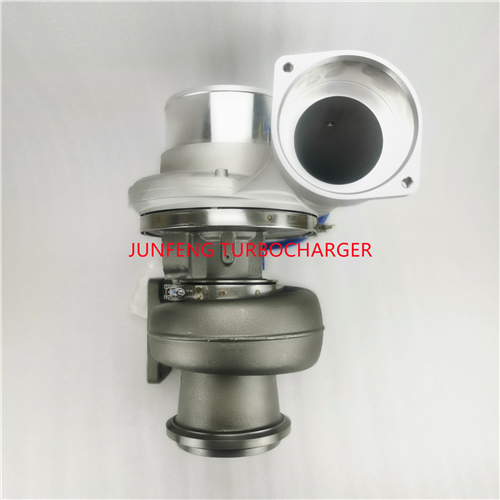

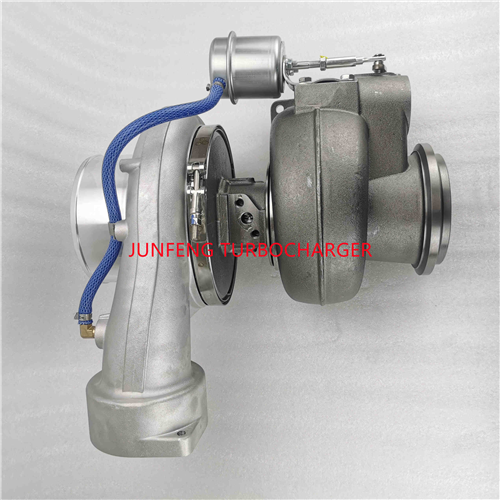

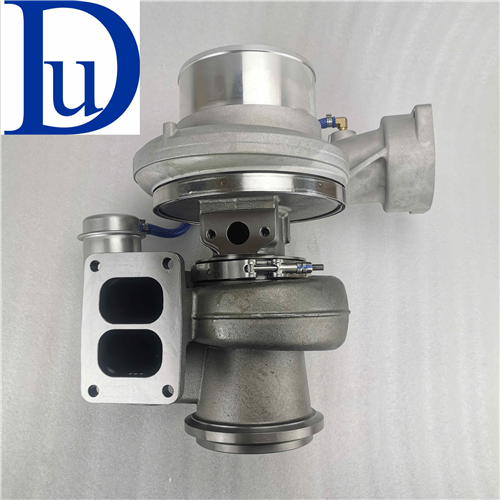

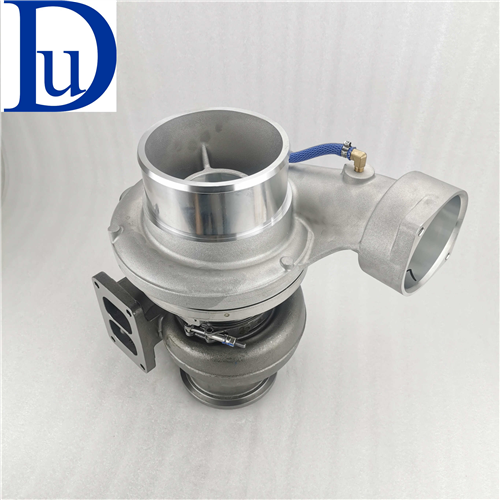

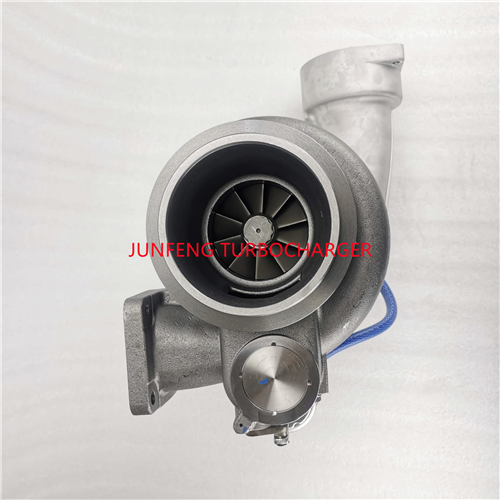

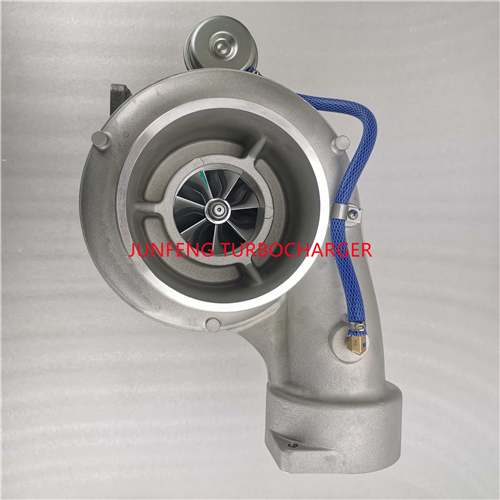

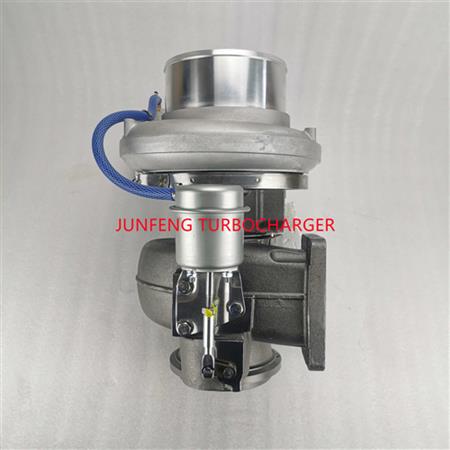

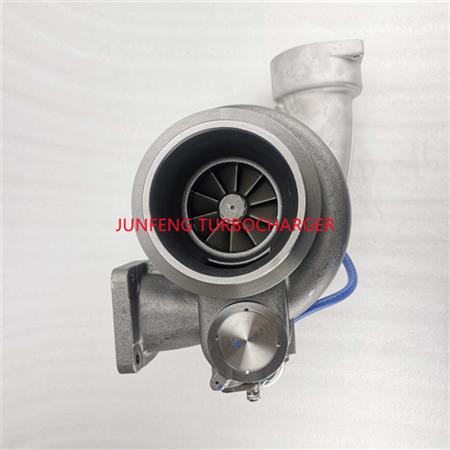

Caterpillar Engine Truck 3406E 3406C C16 TURBO 177148 S410G 0R7152

  • 177148 S410G
  • Model : S410G, GTA470201BS, GT4702, BTG7513, GT500201BS
  • part number : 169227, 170354, 704604-0007, 466445-0018
  • Part NO.: 466445-0023, 466445-9023, 471142-0005, 471142-9005, 471142-0003, 466445-0015, 466445-0021, 466445-9021, 471142-5005
  • OE numbers:0R7310, 0R7923, 1080004R, 160-6201, 1606201, 167-9271, 1679271, 177148, 177148R, 196-5951, 1965951, 477148
  • OE NO.: 0R7152, 0R6989, 0R7203, 0R7223, 0R6986, 0R7201, 0R7299, 166-6752, 141-8937, 124-3032, 136-6390, 146-4328, 141-8939, 124-3035, 137-4832
  • MOQ: 1PCS
  • Fuel: diesel
  • condiction:brand new
  • Manufacturer : booshiwheel
  • Engine 3406E, 3406C, C16, C-12, C-15, MT735

Product Detail

Product Description


Part Number 177148
Previous Version 169227, 170354, 704604-0007, 466445-0018, 466445-0023, 466445-9023, 471142-0005, 471142-9005, 471142-0003, 466445-0015, 466445-0021, 466445-9021, 471142-5005
OE number 0R7310, 0R7923, 1080004R, 160-6201, 1606201, 167-9271, 1679271, 177148, 177148R, 196-5951, 1965951, 477148, 0R7152, 0R6989, 0R7203, 0R7223, 0R6986, 0R7201, 0R7299, 166-6752, 141-8937, 124-3032, 136-6390, 146-4328, 141-8939, 124-3035, 137-4832
Description Tractor, Truck
CHRA 174248 (169062, 161-6780, 10R-0510, 0R7287, 0R-7143, 0R7143, 136-7620, 1367620, 474248)
Turbo Model S410G, GTA470201BS, GT4702, BTG7513, GT500201BS
Prefix 2WS, R1D, 6NZ, 9NZ, C2A, AKN
Engine 3406E, 3406C, C16, C-12, C-15, MT735
Displacement 14.64L, 14640 ccm
S/N OKC150148
RPM 1800
KW 317/404/550/355/475 HP
Fuel Diesel
Bearing Housing 174246 (Oil Cooled)
Turbine Wheel 169346 (Ind. 91.46 mm, Exd. 81.66 mm, Trm 14.4, 10 Blades)
Comp. Wheel (Hipped) 171691 (Ind. 74.57 mm, Exd. 105.3 mm, Trm 7.97, 7+7 Blades, Superback) $97.15 NEW IN STOCK
Back plate 167783 NEW IN STOCK
Heat shield Number 167790  NEW IN STOCK
Repair Kit 318396 (318397)(1253400750) $89.90 NEW IN STOCK
Turbine Housing NEW IN STOCK
Actuator 446131-0046
Gasket Kit 318417
Gasket oil inlet 129119 (210019, 201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 129120)(417378 Replaced by 420641)(1900000035)
Gasket (oil outlet) 210018 (210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)
Replaced By 704604-0007 (0R7310, 1679271, 167-9271, 704604-5011 (1965951. 196-5951, 160-6201))

Applications

1994-07 turbocharger for Caterpillar Engine Truck 3406E, 3406C, C16 C15 Engine
