Product Detail

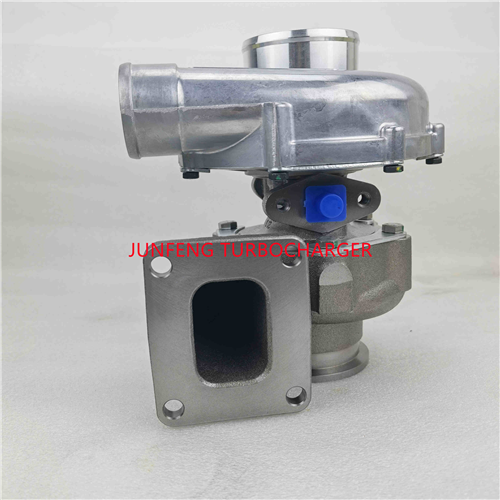

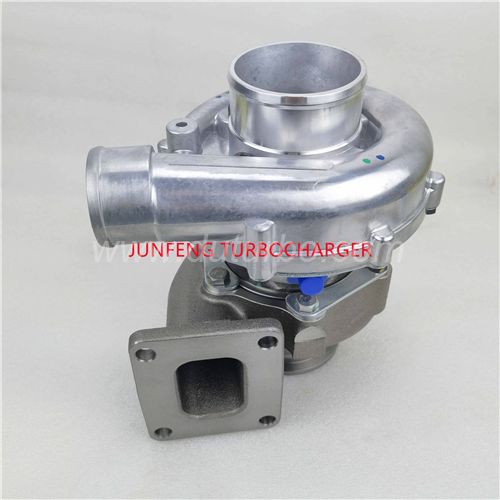

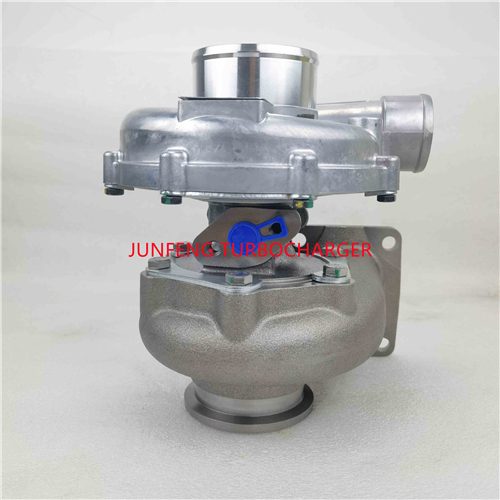

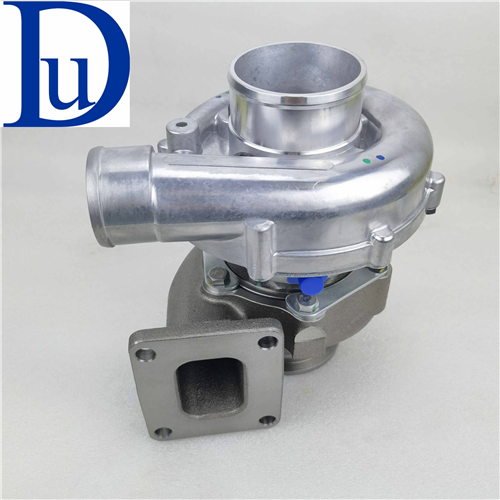

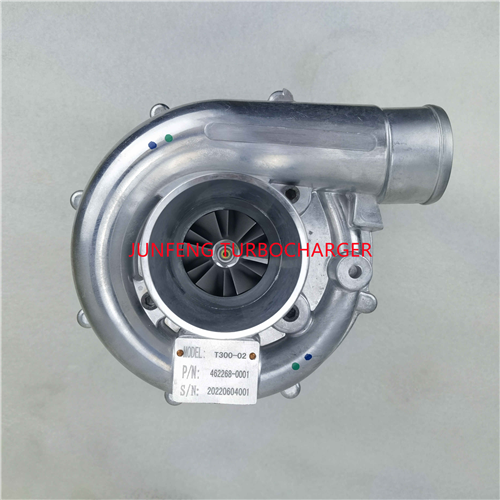

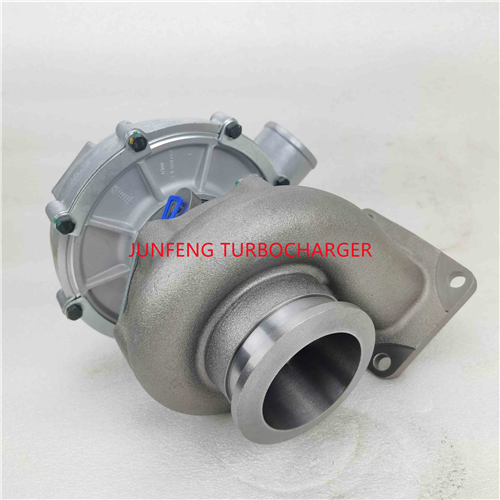

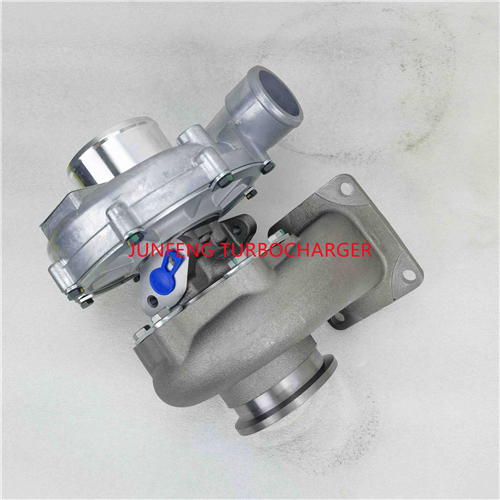

| Part Number | 454041-5002S |
| Previous Version | 452268-0001, 454041-0002, 454041-2, 454041-0003, 454041-0001, 454041-1, 452268-9001, 454041-5003S |
| OE number | RE47844, RE61594, RE61792, RE68896, SE500287 |
| Description | M2 Agricultural Tractor |
| CHRA | 446311-0002 (446311-5002S)(RE46348) |
| Turbo Model | T300-02 |
| Engine | 4045T |
| Engine Manufacturer | John Deere |
| Displacement | 3.9L, 3900 ccm, 4 Cylinders |
| Fuel | Diesel |
| KW | 68/75 |
| RPM Max | 2300 |
| Angle α (compressor housing) | 169° |
| Angle β (turbine housing) | 352° |
| Bearing Housing | 430027-0021 (407285-0019, 430027-0051)(AR63781)(Oil Cooled)(1900011104) |
| Turbine Wheel | 445812-0001 (E0NN6N678AA)(Ind. 54.5 mm, Exd. 61.5 mm, Trm 79, 10 Blades) |
| Comp. Wheel | 446340-0003 (E0NN6N662AA)(Ind. 41.75 mm, Exd. 63. mm, Trm 44, 6+6 Blades)(1200016561) |
| Back plate | 409629-0012 |
| Heat shield Number | 409627-0000 (409627-0001)(1100030340, 103121-0000) |
| Repair Kit | 468139-0000 (EFPN6K682AA)(1100030750, 5000010041)(Dynamic) |
| Turbine Housing | 447182-0022 |
| Compressor Cover | 446341-0009 |
| Housing AR | 0.86 |
| Fitting oil inlet | 400865-0011 |
| Gasket (turbine inlet) | 407294-0002 (210152-0000) |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027 |
