Product Detail
Product Description
| Part Number | 466200-5011S |
| Previous Version | 466200-0012, 466200-0013, 466200-0014, 466200-0015, 466200-0016, 466200-0017, 466200-0018, 466200-0019, 466200-0020, 466200-0021 |
| OE number | 5000670512, 5000681664, 5000670625, 5000670626, 5000681269, 5000789400 |
| Description | FITS FOR Renault G260/G290 Truck |
| CHRA | 441398-0021 (441398-5021S) |
| Turbo Model | TA4505 |
| Engine | MIDS |
| Displacement | 9.8L, 9840 ccm, 6 Cylinder |
| RPM Max | 2200 |
| Fuel | Diesel |
| KW | 265/280 /291 |
| Angle α (compressor housing) | 205º |
| Angle β (turbine housing) | 225º |
| Bearing Housing | 410310-0001 (410310-0004, 311548)(Oil Cooled)(1900011222) |
| Turbine Wheel | 441064-0001 (Ind. 82. mm, Exd. 71.60 mm, Trm 11.88, 11 Blades)(1100016046) |
| Comp. Wheel | 441029-0005 (Ind. 58.15 mm, Exd. 84. mm, Trm 48, 8+8 Blades, Superback) |
| Back plate | 442752-0001 (1300016014) |
| Heat shield Number | 410366-0003 (410366-0004, 410366-0007, 410310-0001)(2030016005) |
| Repair Kit | 468132-0000 (5000010045B) |
| Turbine Housing | 441041-0003 |
| Compressor Cover | 443211-0005 |

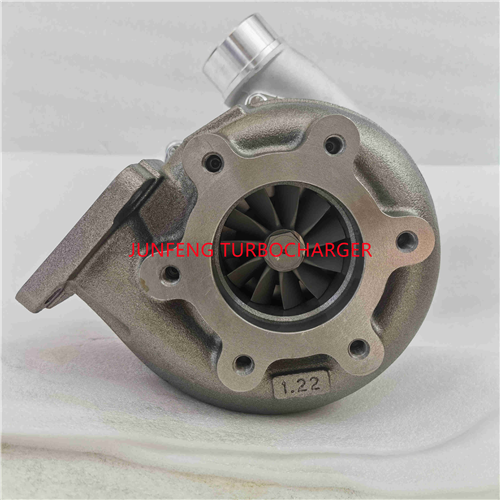

| Turbine Housing AR | 1.22 |
| Gasket (turbine inlet) | 409123-0002 (310694) |
| Gasket oil inlet | 210019 (409266-0004, 210019-0000, 201049, 129119, 409266-0003) |
| Gasket (oil outlet) | 210060 (409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585) |
| Replaced By | 312250, 311785, 43289886602, 312294, 352469S, 312233, 312583, 212232 |

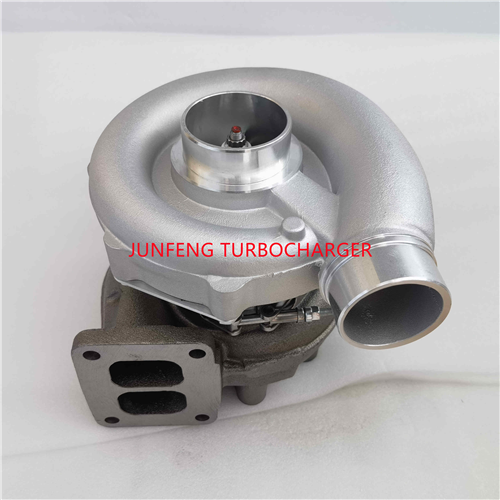

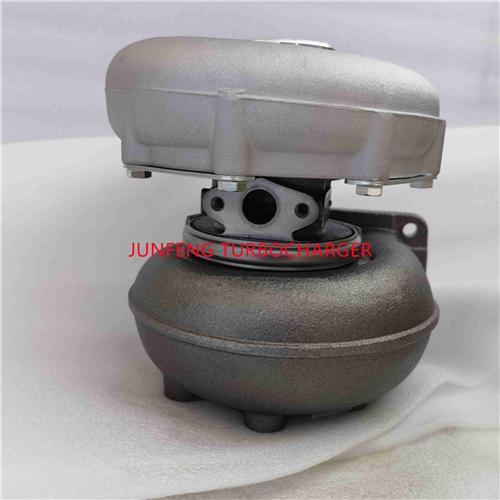

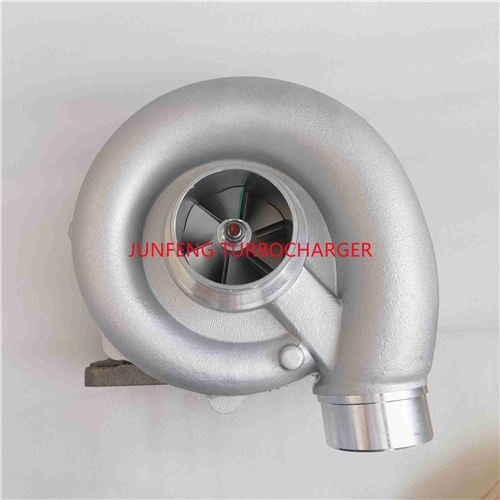

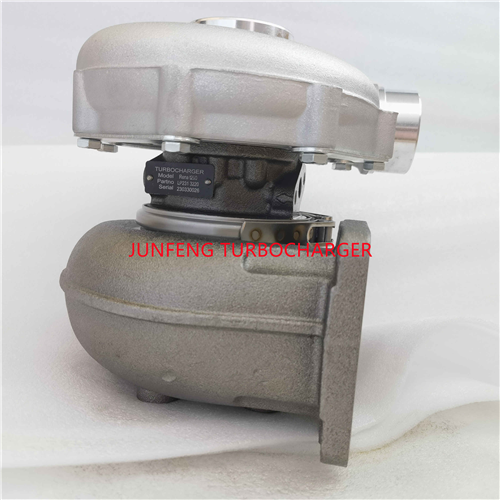

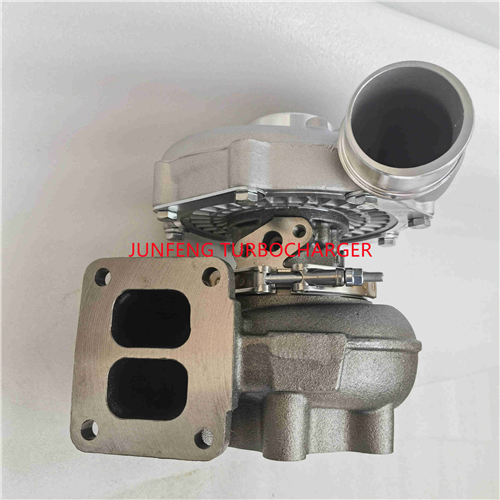

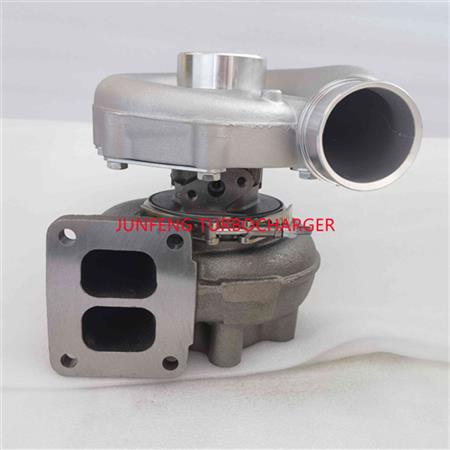

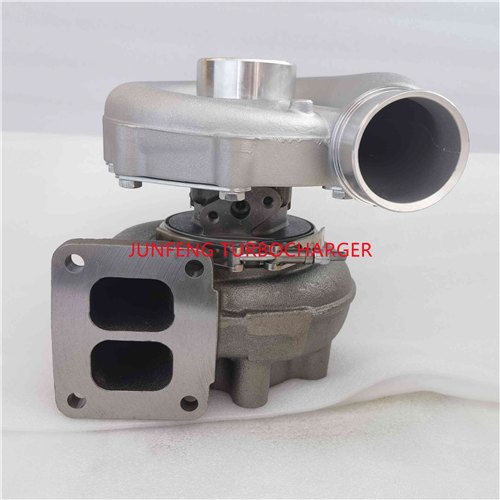

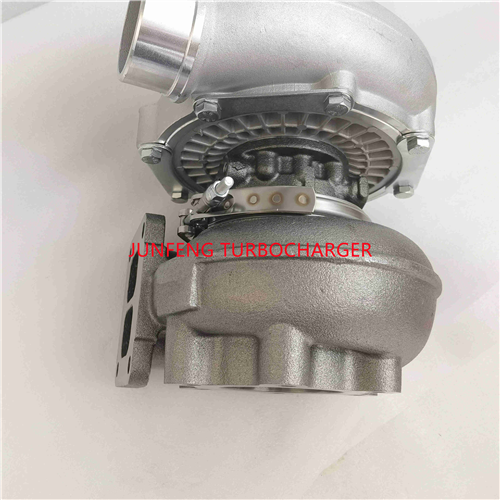

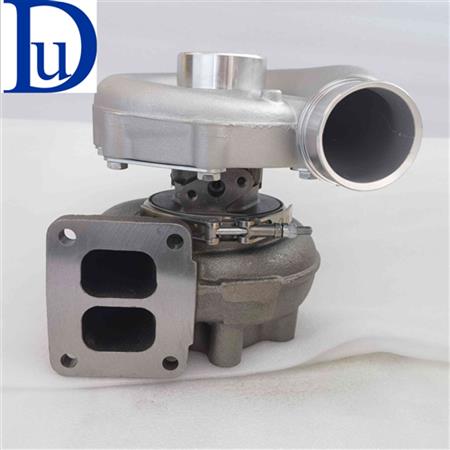

Turbocharger for Renault DG290 Truck G260 with MIDR-062045 Engine
