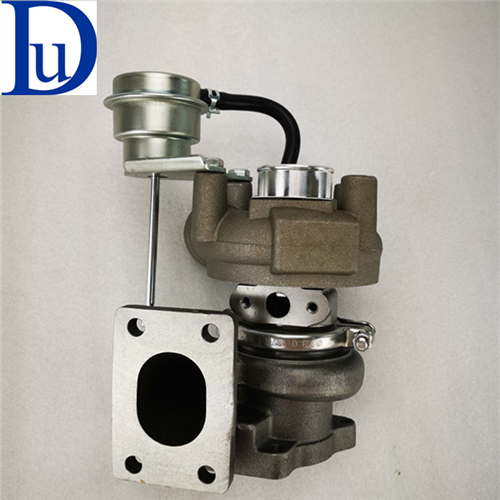

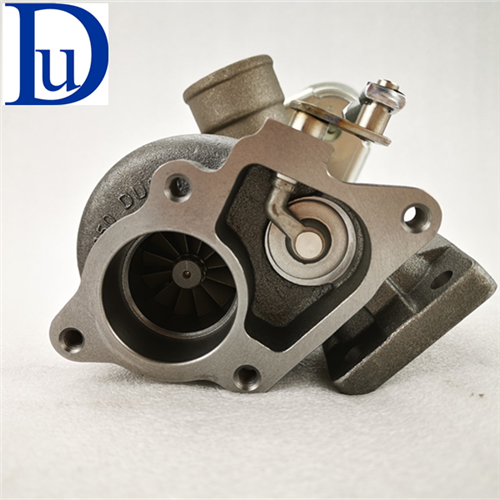

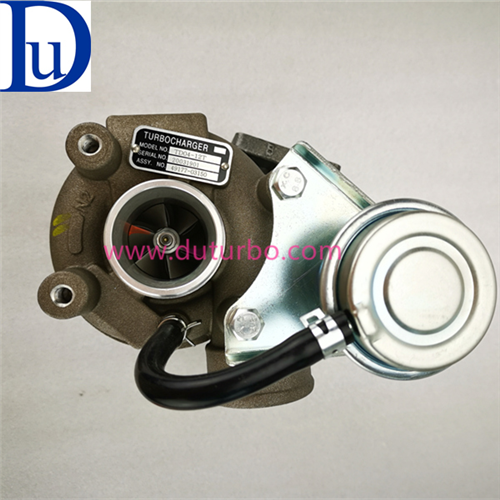

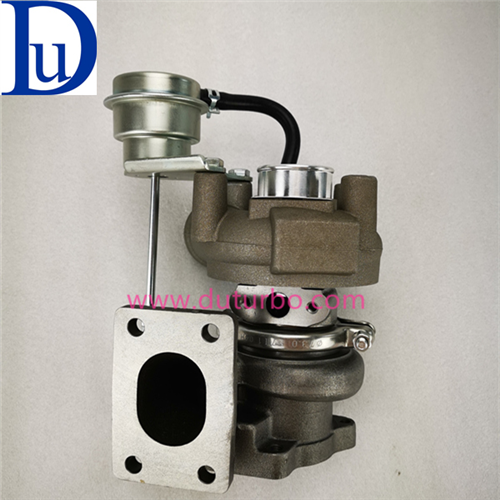

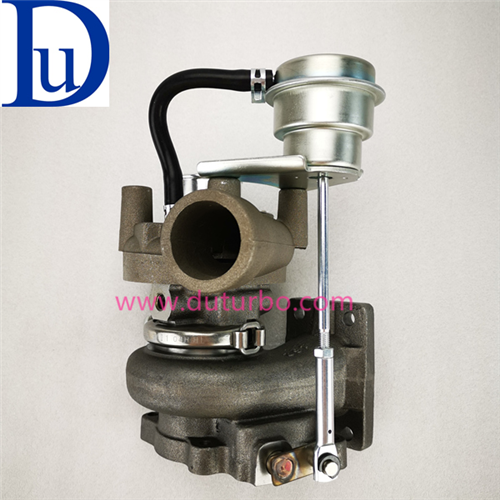

49177-03150 TD04-12T 49177-03160 1C041-17014 1C050-17013 turbo for Kubota V3300DI-T Engine
Product Description
| Part Number | 49177-03160 |
| Previous versions | 49177-03130, 49177-03140, 4917703160 |
| OE number | 1G565-1701, 1G565-17012, 1G565-17013, 1G5651701, 1G56517012, 1G56517013, 1C04117014, 1C041-17014 |
| Description | Industrial Engine |
| Manufacturer Part Number | 1G565-1701, 1G56517012, 1G565-17013, 1C040-1701, 1C0401701 |
| CHRA | 49177-08300 (49177-08130) (1401404903, 1401404703) $250.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | TD04-12T, TD04-12TH-7.0 |
| Engine | V3300-T |
| Fuel | Diesel |
| Bearing Housing | 49177-25100 (1401404450) $69.00 NEW IN STOCK |
| Turbine Wheel | 49177-30120 (49177-30130, 49177-30200)(Ind. 47.2 mm, Exd. 40. mm, Trm 72, 12 blades)(1401404435, 1401404437, 1100040162) $95.00 NEW IN STOCK |
| Comp. Wheel | 49177-44400 (Ind. 37.8 mm, Exd. 49. mm, Trm 60, 6+6 Blades, Flatback)(1401404404) $39.00 NEW IN STOCK |
| Back plate | 49135-00044 (1401635300) $19.96 NEW IN STOCK |
| Heat shield Number | 49170-19100 (1401404340) $14.64 NEW IN STOCK |
| Repair Kit | 49177-80410 (1401404755) $98.80 NEW IN STOCK |
| Turbine Housing | 49377-14490 |
| Actuator | 49377-17943 (49377-19020) |
| Gasket (turbine inlet) | 210346 (Stainless Steel) $12.00 |
| Gasket (turbine outlet) | 210568 (Stainless Steel) $28.00 |
| Gasket (oil outlet) | 210243 (Paper) |
Applications
Mitsubishi Pajero, L200, V3300-T
2001- Bobcat S250 Skid Steer Loader, Kubota 3.3L, V3300-T
