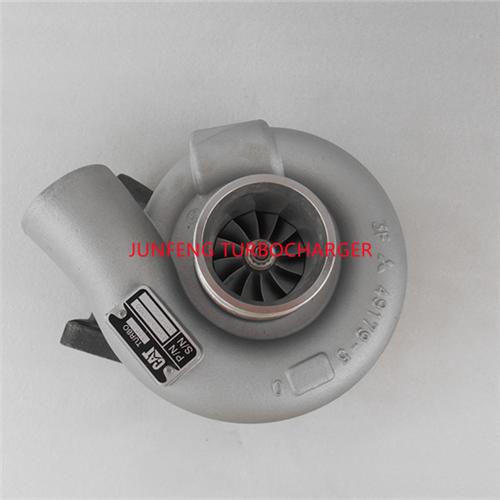

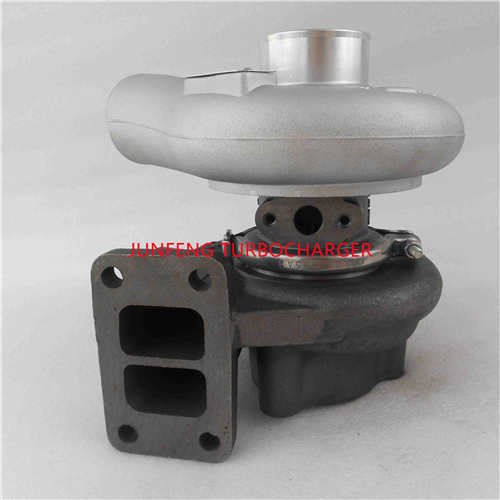

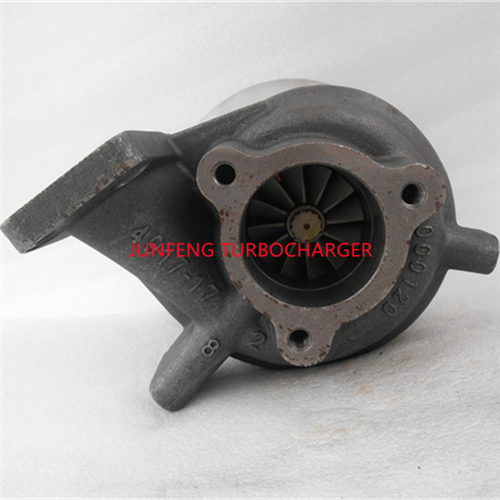

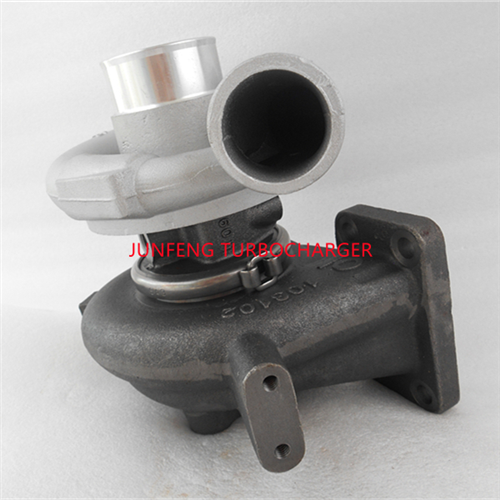

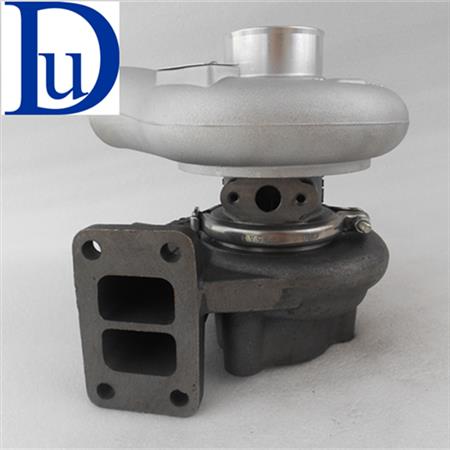

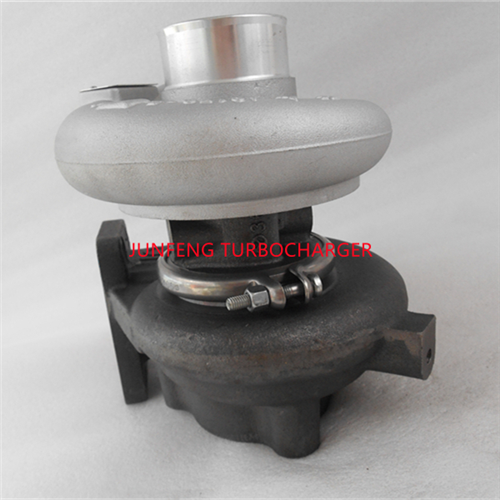

TD06H Turbo for Hyundai Crawler CAT Excavator 3066 S6K 49179-02300 49179-02340

TD06H 49179-02300
Model : TD06H, TD06H-16M-12.0
part number : 49179-02340 4917902340, 316375, 49179-02300, 4917902300, 49179-02350, 4917902350, 49179-02360, 4917902360
Interchangeable Number: 49179-02370, 4917902370, 49179-02390, 4917902390, 49S79-02300, 49S7902300, 49S79-02350, 49S7902350, 49S79-A2340, 49S79A2340
OEM Number: 205-6741, 2056741, 222-8219, 2228219, 227-1027, 2271027, 279-7860, 2797860, 5I-8018, 5I8018, ME2056741
Engine: 3066, 3066T, C6.4, S6K, S6K-T, S6S-DT, S6S-Y2DT, S6S-Y2DT61HS
Displacement: 6.4L
Fuel: Diesel
CHRA: 49179-08600 (316402)(5I7589, 5I-7589)
Repair Kit: 49178-80030/49178-81100 (49178-89200)(2455063)(1401405750)
Application: Caterpillar 320, 320B L, 320B LL, 320B LU, 320B N, 320B U, 320B, 320C L, 320C, 320D L, 320D LRR, 320D RR, 320D, 321B, 321C, 323D L, 323D LN, 323D S, E320

Product Detail

Product Description

Part Number: 49179-02340
Interchangeable Number: 4917902340, 316375, 49179-02300, 4917902300, 49179-02350, 4917902350, 49179-02360, 4917902360, 49179-02370, 4917902370, 49179-02390, 4917902390, 49S79-02300, 49S7902300, 49S79-02350, 49S7902350, 49S79-A2340, 49S79A2340
OEM Number: 205-6741, 2056741, 222-8219, 2228219, 227-1027, 2271027, 279-7860, 2797860, 5I-8018, 5I8018, ME2056741
Turbo Model: TD06H, TD06H-16M-12.0
Manufacturer: BOOSHIWHEEL

Engine: 3066, 3066T, C6.4, S6K, S6K-T, S6S-DT, S6S-Y2DT, S6S-Y2DT61HS
Displacement: 6.4L
Fuel: Diesel

Back Plate: 49168-22500 (197340)(1352351)(2455007)
Bearing Housing: 49179-20300 (1352359)(Oil Cooled)
CHRA: 49179-08600 (316402)(5I7589, 5I-7589)
Compressor Housing: 49179-57860/443213-0020 (5I7587)
Compressor Wheel: 49185-40700 (1352360)(Ind. 48.04 mm, Exd. 68.01 mm, 6+6 Blades)
Cooling: Air
Gasket (Oil Outlet): 210317 (5I7689)(Paper)
Gasket (Turbine Inlet): 409039-0001/409039-0000 (210022-0000, 2405022)(5I7742)
Heat Shield: 49168-18900 (193975, 1352346)
Repair Kit: 49178-80030/49178-81100 (49178-89200)(2455063)(1401405750)
Turbine Housing A/R: 12.0
Turbine Housing: 49179-17821/49179-17822/49179-17820 (5I8041)
Turbine Wheel: 49179-30220 (1352357)(Ind. 58.8 mm, Exd. 68 mm, 12 Blades)

Application:
Caterpillar 320, 320B L, 320B LL, 320B LU, 320B N, 320B U, 320B, 320C L, 320C, 320D L, 320D LRR, 320D RR, 320D, 321B, 321C, 323D L, 323D LN, 323D S, E320 Hydraulic Excavator, Earth Moving with 3066, 3066T, C6.4, S6K Engine
Hyundai 320 Excavator, Crawler with 3066 Engine
Hyundai 7 Series Crawler Excavator
Hyundai R160-7, R160-9S, R170W-7, R170W-9S, R180-7, R180-9S, R180W-9S Wheel Excavator
Hyundai R160LC-7, R180LC-7 Crawler Excavator
Mitsubishi, Caterpillar Construction with S6K, S6K-T, S6S-Y2DT Engine
