  3. CT16V 17201-30180 17201-30181 17201-30150 Turbocharger for Toyota Hiace D-4D 1KD-FTV 3.0L Engine
  • CT16V 17201-30180 17201-30150 Turbocharger for Toyota Hiace VAN 1KD-FTV 3.0L Engine

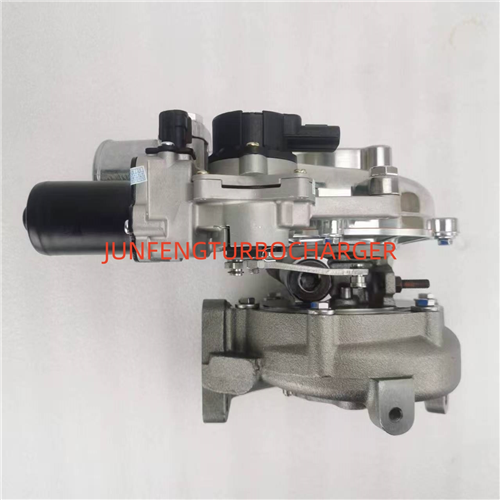

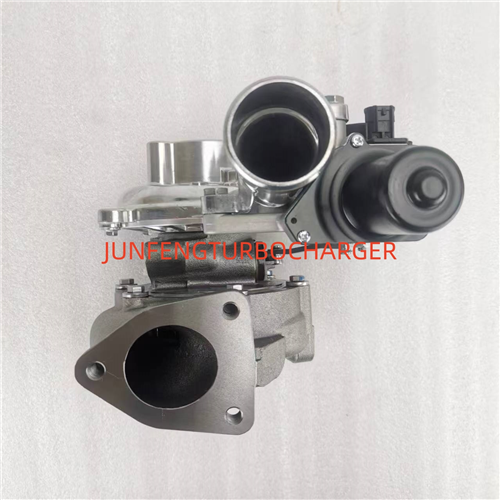

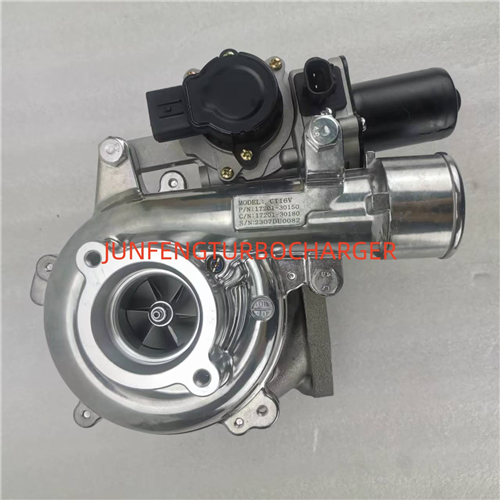

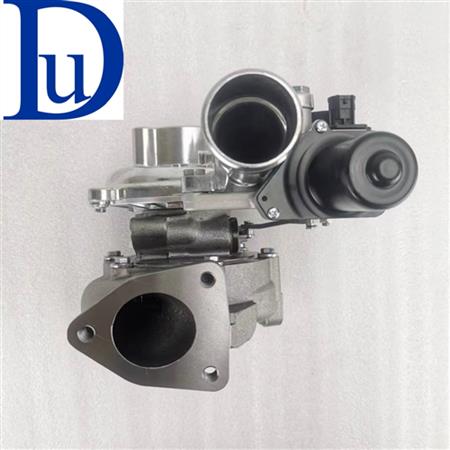

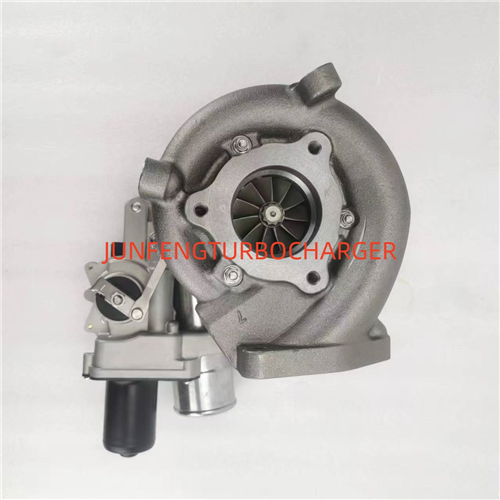

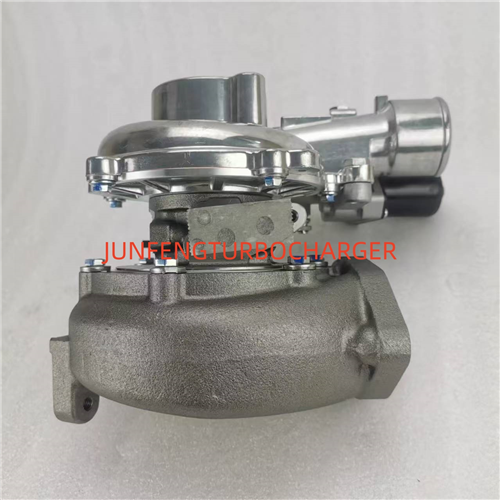

CT16V 17201-30180 17201-30181 17201-30150 Turbocharger for Toyota Hiace D-4D 1KD-FTV 3.0L Engine

  • CT16V 17201-30180
  • Model: CT16V CT CT12CV
  • Part Number 17201-30180 17201-30181 17201-30150
  • Previous versions 1720130180 1720130181 1720130150
  • OE Number VA120015 TC3VET-S0015B TC3VETS0015B
  • CHRA TC1VET-S0011C
  • Electric Actuator: SD04T120002
  • GASKET: DGK0020
  • Fuel Diesel
  • Engine 1KD-FTV
  • Dispalcement: 30L

Product Detail

Product Details

Part Number 17201-30180
Previous Part Number 1720130180, 17201 30150, 17201 30180, 17201-30180, 17201-30181
OE Number 1720130180, 17201-30180
Description HiLux 2.5L D Land Cruiser, HiLux Vigo
CHRA 17202-90040 (1720290040)(1500-326-903, 1000-060-003)
Turbo Model CT, CT16V
Engine D-4D, KZJ90, KZJ95
Displacement 3.0L, 2982 ccm
Fuel Diesel
Bearing Housing (Water Cooled)(1500326460, 1900011141)
Turbine Wheel (Ind. 55.86 mm, Exd. 63.00 mm, 10 Blades)(1500326435, 1100016159)
Comp. Wheel (Ind. 48.93 mm, Exd. 70.93 mm, 7+7 Blades, Superback)(1500326404, 1200016219)
Back plate (1500326300, 1300016056)
Heat shield Number NEW IN STOCK
Repair Kit (1500326756, 5000070022)
Nozzle Ring (1500316830, 300001044)
Actuator (Electronic) (1500326380, 2063050021)
Gasket Kit (1900100428, 2090505442)
