Product Detail
Product description

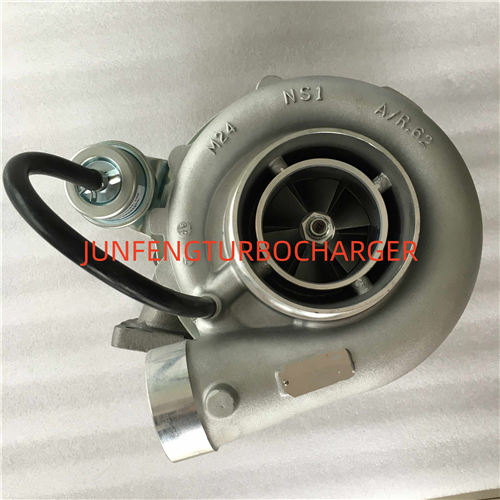

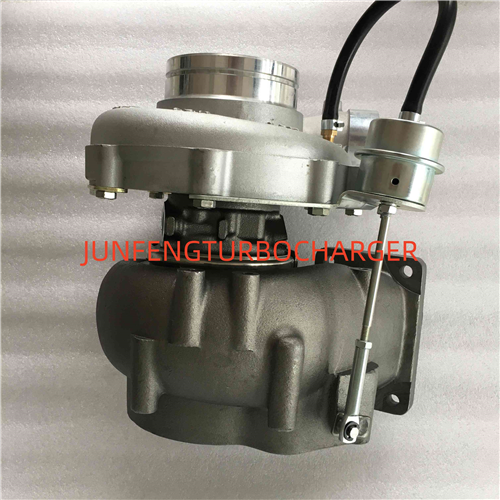

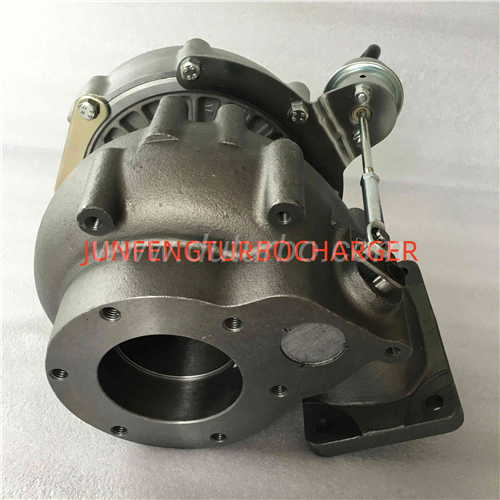

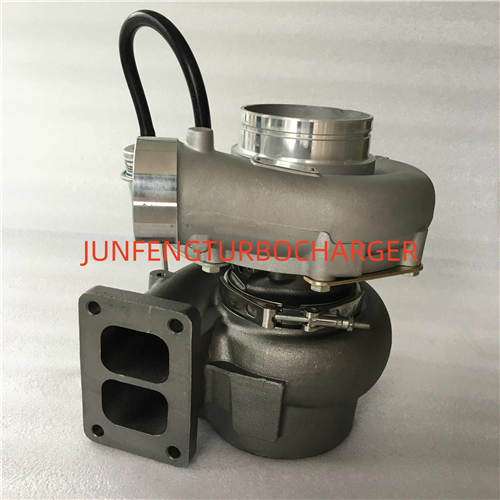

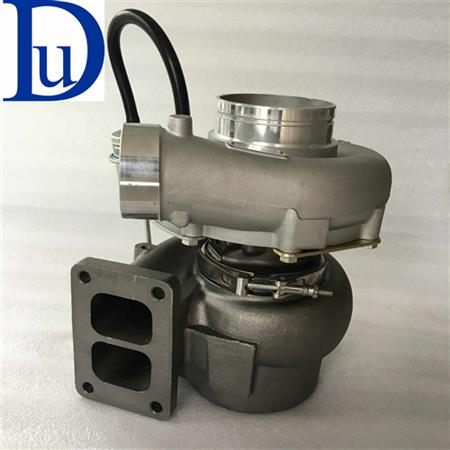

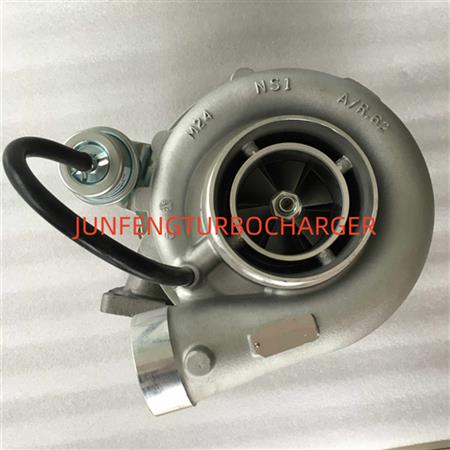

| Part Number | 735059-5004S |
| Previous Version | 721644-0002, 721644-0006, 721644-0008, 735059-0002, 735059-0004 |
| OE number | 1448806, 1453029, 1616752, 1616433, 1453029.0 |
| Year | 2002- |
| Description | Truck DAF XF95 .480 |
| CHRA | 712402-0028 (712402-5028S)(1000010389) |
| Turbo Model | GT4594S |
| Engine | XE355C1 Euro 3, XE355C1 |
| Displacement | 12.6L, 12580 ccm, 6 Cylinders |
| Application | Leyland DAF |
| Fuel | Diesel |
| KW | 390/476/483/523/530 |
| RPM Max | 1900 |
| Bearing Housing | 712342-0016 (712342-0004, 712342-0015)(Oil Cooled)(1900011222C) |
| Turbine Wheel | 705080-0012 (763590-0001)(Ind. 82. mm, Exd. 75.13 mm, Trm 12.98, 10 Blades)(1100016323) NEW IN STOCK |
| Rotor Assembly | (2300010290) |
| Comp. Wheel | 712340-0012 (Ind. 67.94 mm, Exd. 94.13 mm, Trm 6.8, 6+6 Blades)(1200016457) NEW IN STOCK |
| Back plate | 725273-0004 (1300016140) |
| Heat shield Number | 410366-0007 (410366-0003, 410366-0004)(2030016004) |
| Repair Kit | 709153-0005 (5000010193) |
| Turbine Housing | 731885-0002 |
| Compressor Cover | 707709-0094 |
| Actuator | 434133-0052 |
| Gasket (turbine inlet) | 409038-0000 (1S4295, 132040, 52231083002, 210835-0000, 9749, 7M7273, 7H1558, 8N2835) |
| Gasket oil inlet | 210019 (409266-0004, 210019-0000, 201049, 129119, 409266-0003)(Paper) |
| Gasket (oil outlet) | 210060 (311585, 148062, 2475013)(Paper) |
| Replaced by | 735059-5002S, 721644-5008S |
