Product Detail
Product Description

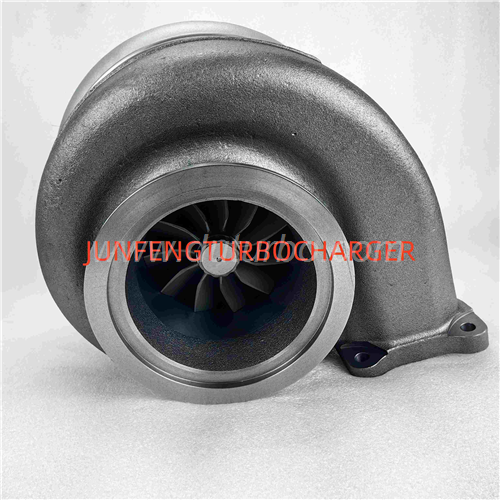

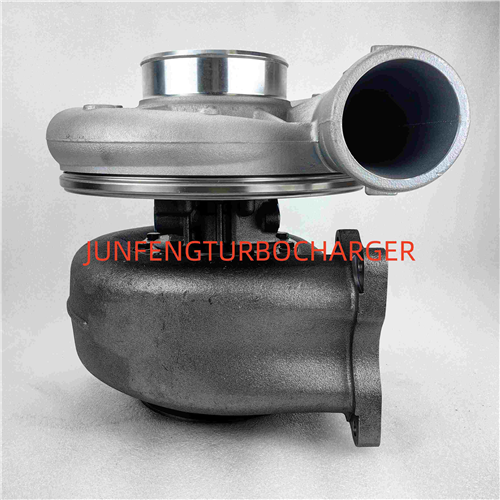

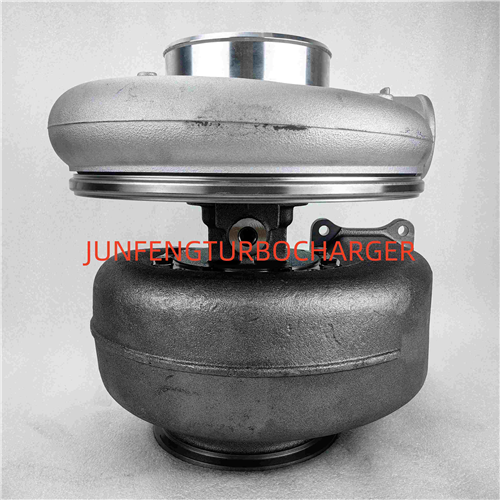

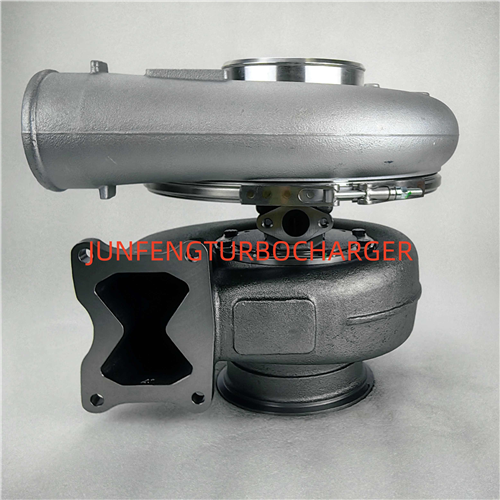

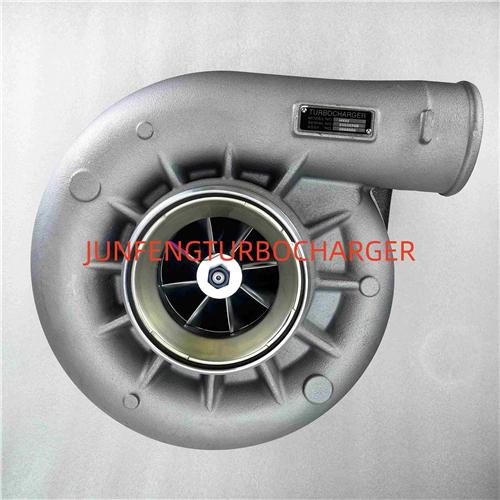

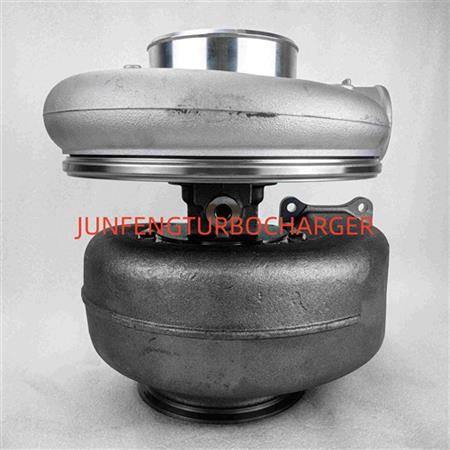

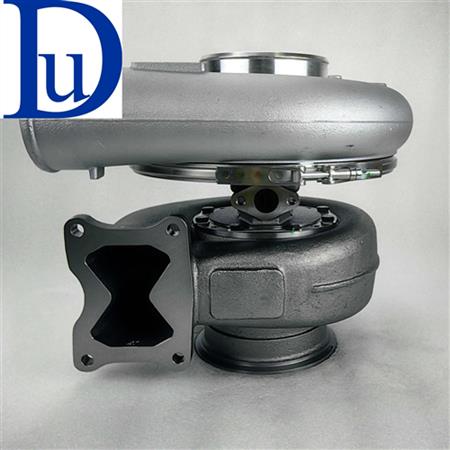

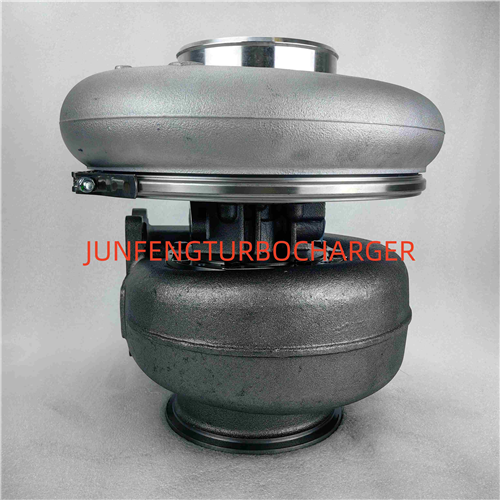

| Part Number | 3774192 |
| Previous Version | 3595850 |
| OE number | 4025150, 6240-81-8900, 6240818900 |
| Description | FITS FOR Cummins CTT Komatsu Powergen |
| Manufacturer Part Number | 3793507, 3595851, 3595852, 3599388 |
| CHRA | 3774248 (4027658) |
| Turbo Model | HX82, HX82-H5153BC/AR37HA4 |
| Engine | QSKV45, QSK23 G3 |
| KW | 1035/1200/1810 HP |
| Fuel | Diesel |
| Angle α (compressor housing) | 16/195/202° |
| Angle β (turbine housing) | 22.5/45/360° |
| Bearing Housing | 3595037 (Water Cooled) |

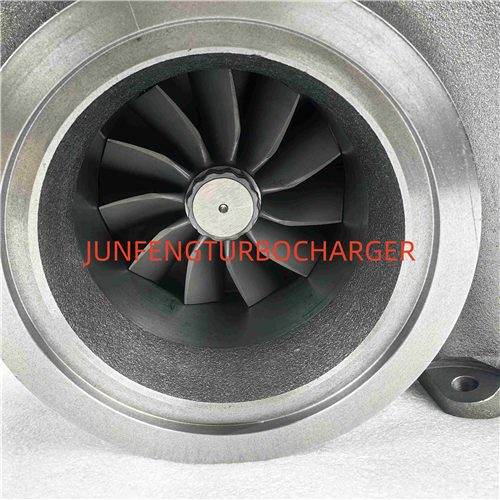

| Turbine Wheel | 3535977 (Ind. 129. mm, Exd. 111. mm, Trm G, 13 Blades) |
| Rotor Assembly | 4017423 |
| Comp. Wheel | 3593926 (4048021)(B151N66, F151N66)(Ind. 100. mm, Exd. 152.04 mm, Trm 12.88, 8+8 Blades, Superback) |
| Back plate | 3534703 |
| Heat shield Number | 3536588 (353658800) (1153080340) |
| Repair Kit | 4027972 |
| Shim (0.010) | 3524418 (316069) |
| Gasket Kit | 4032525 (3575178) |
Applications
2000- Turbocharger fits for Cummins Komatsu Powergen with QSKV45 Engine
