Product Detail
| Part Number | 701100-5007S |
| Previous Version | 465329-0002, 465329-0005, 701100-0001, 701100-0007 |
| OE number | 211391A, 211391G, 211391N, 211391T, X6X5006 |
| Description | Industrial Genset/Various |
| CHRA | 431922-0008 (431922-5008S, 452670-0005, 452670-0008, 431922-0020)(23507415, 23507339) |

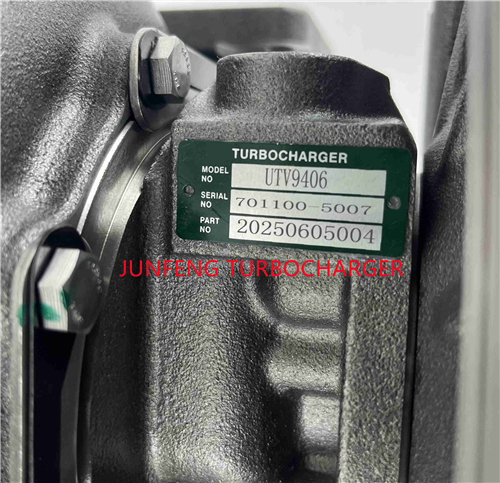

| Turbo Model | UTV9406, UTL9406 |
| Engine | L7042GL, L7042 GL |
| Displacement | 58.0L. 11.5L, 8, V12 Cylinders |
| KW | 738/1547 HP |
| Fuel | CNG, Natural Gas |
| Engine Manufacturer | Waukesha |
| Bearing Housing | 410301-0003 (443245-0002, 451860-0002)(8923985)(Oil Cooled) |
| Turbine Wheel | 442208-0001 (442208-0003, 451882-0004)(23503611, 1101094435, 4W1223)(Ind. 106.8 mm, Exd. 129. mm, Trm 19.95, 11 Blades)(1100016382) |
| Comp. Wheel | 441813-0007 (451883-0008)(23503609, 7E0478)(Ind. 93.8 mm, Exd. 141.3 mm, Trm 9.65, 7+7 Blades, Superback) |
| Back plate | 408487-0032 (408487-0042, 452668-0001)(4P3820, 489019, 109-3481) |
| Heat shield Number | 407566-0001 (407566-0003)(23507343) |
| Repair Kit | 468416-0000 (707899-0001, 705731-0001)(1N3593, 1089342)(1101090755) |
| Turbine Housing | 407738-0042 |
| Compressor Cover | 432078-0001 |
| Gasket (turbine inlet) | 409038-0001 (409038-0000, 1S4295, 132040, 205396, 202873, 3500683, 1215736, 210017-0000, 210835-0000, 9749)(1900000003) |
| Gasket oil inlet | 210019 (409266-0004, 210019-0000, 201049, 129119, 409267-0002, 409266-0003)(Paper)(1900000035) |
| Gasket (oil outlet) | 210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) |

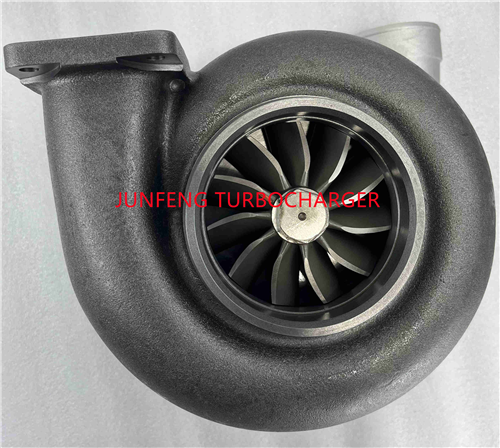

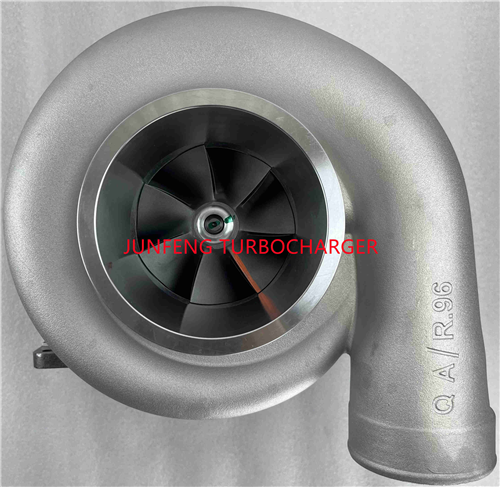

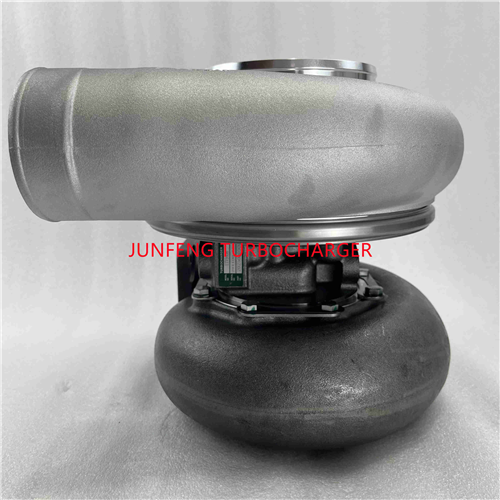

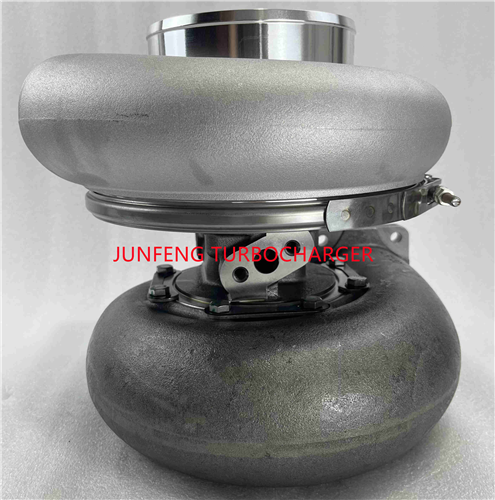

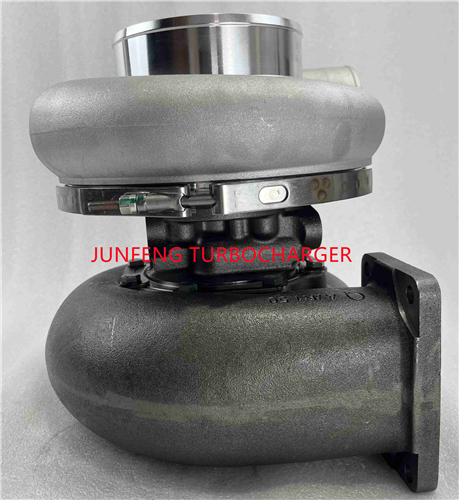

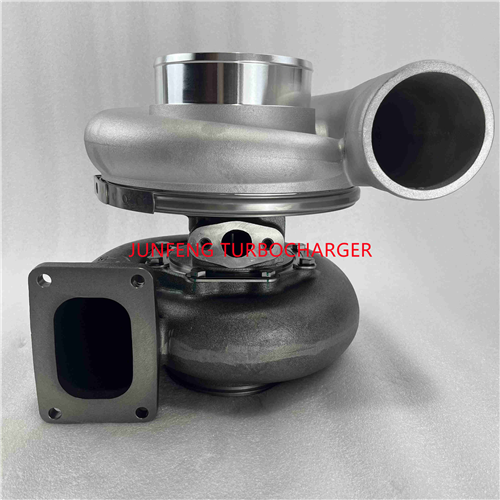

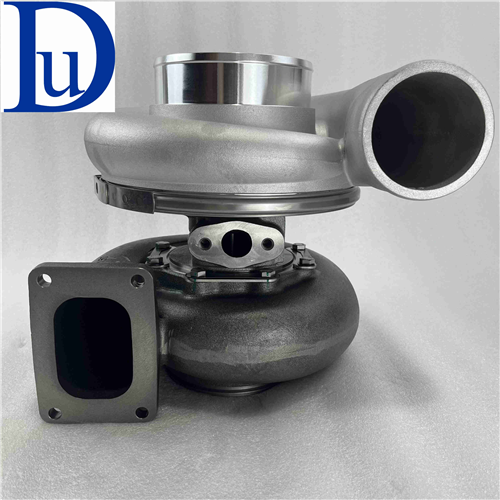

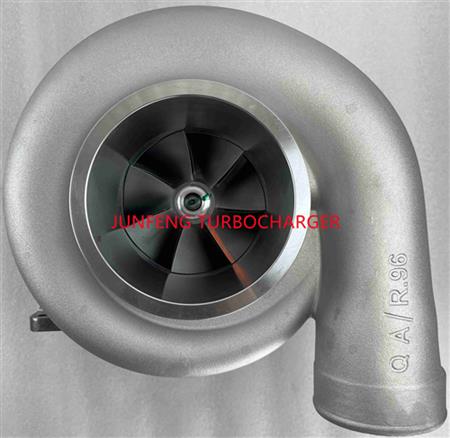

Turbocharger for Waukesha Industrial Engine & Power Units with L7042GL Engine
