Product Detail

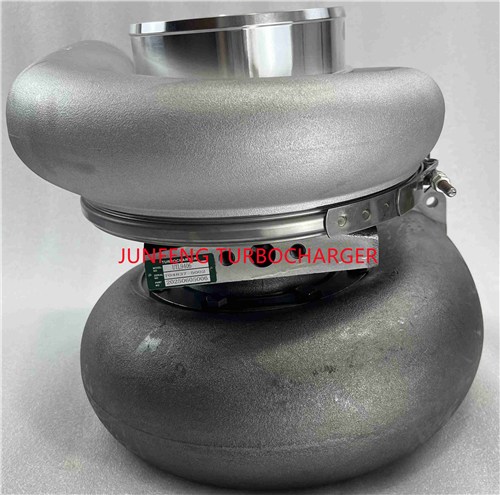

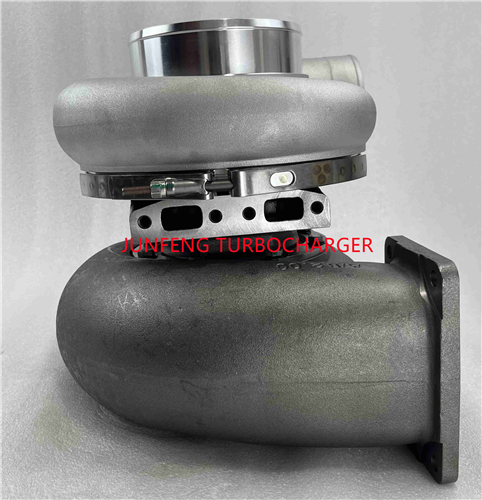

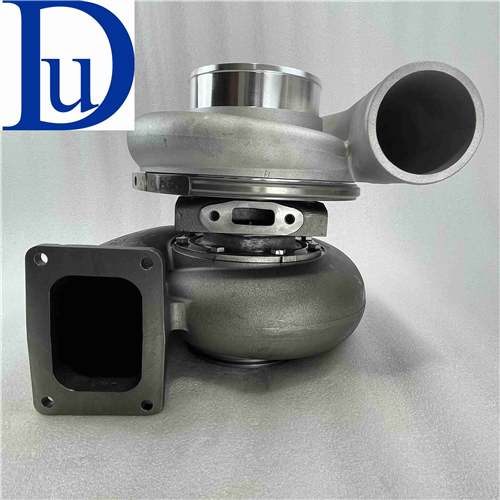

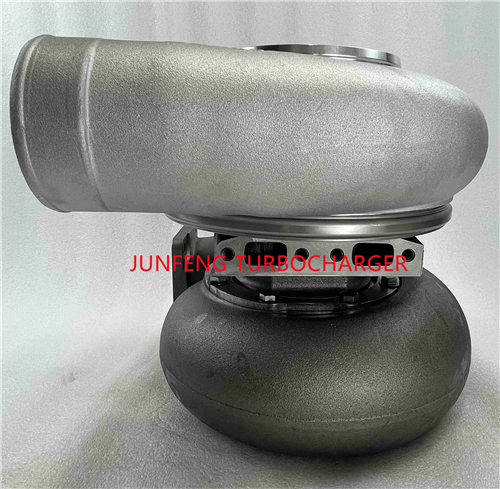

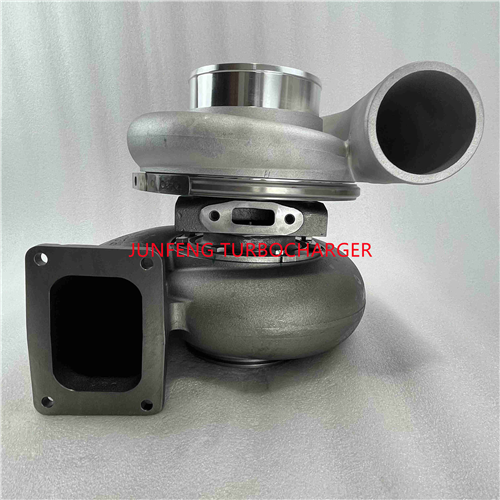

| Part Number | 704837-5002S |
| Previous versions | 704837-0002, 704837-0004 |
| OE Number | 211896.0, 211896, 214007 |
| Description | Industrial Caterpillar CV Off Highway |
| CHRA | 452669-0006 (452669-5006, 452669-9006) |
| Turbo Model | UTL9406 |
| Engine Model | F3524GSI, L7044GSI, F3524, L7044GSI Engines Draw Thru, 7044 |
| Fuel | CNG (Compressed Natural Gas) |
| Bearing Housing | 451861-0002 (Water-Cooled) |
| Turbine Wheel | 451882-0004 (Ind. 129. mm, Exd. 111.6 mm, Trm 18.72, 11 Blades) |
| Comp. Wheel | 451883-0008 (Ind. 93.8 mm, Exd. 141.3 mm, Trm 9.6, 7+7 Blades, Superback) |
| Back plate | 452668-0001 (408045-0057) |
| Repair Kit | 705731-0001 |

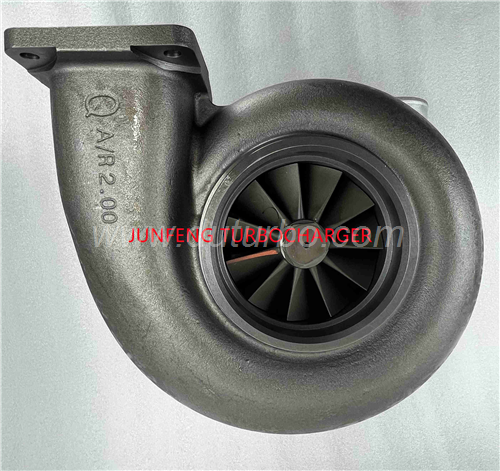

| Turbine Housing | 409688-0033 (1100181821) |

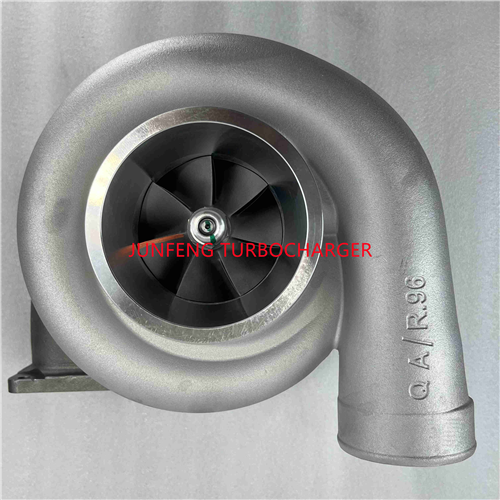

| Compressor Cover | 432078-0001 (432078-0004)(23503610) |
| Turbine Housing A/R | 2.0 |
| Gasket (turbine inlet) | 409038-0001 (409038-0000, 1S4295, 210835-0000, 9749, 132040, 202873, 205396, 3500683, 210017-0000)(1900000003) |
| Gasket oil inlet | 210161 (paper) |
| Gasket (oil outlet) | 210172 (Paper) |
| Gasket (water inlet and outlet) | 210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807)(1900000027) |
| Replaced By | 701100-0009 |
1999- Turbocharger for Waukesha, Caterpillar Industrial Engine F3524GSI
