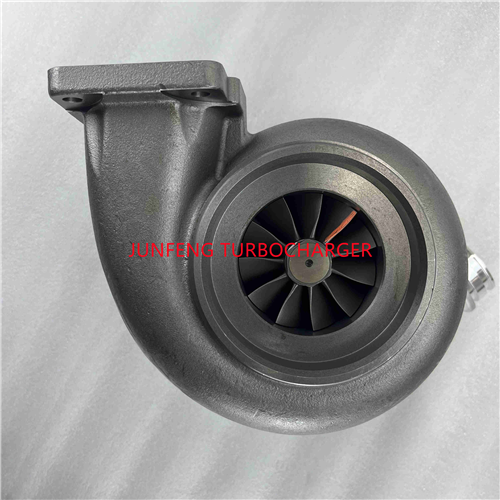

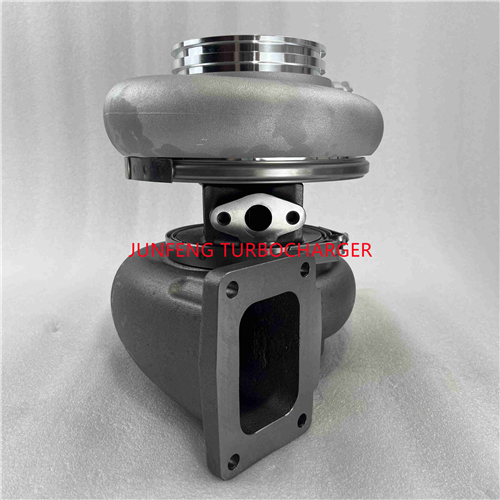

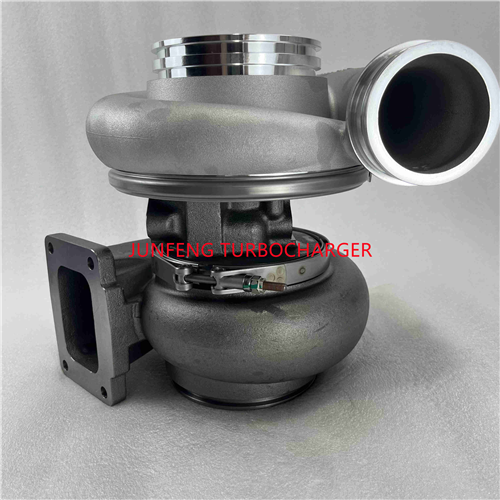

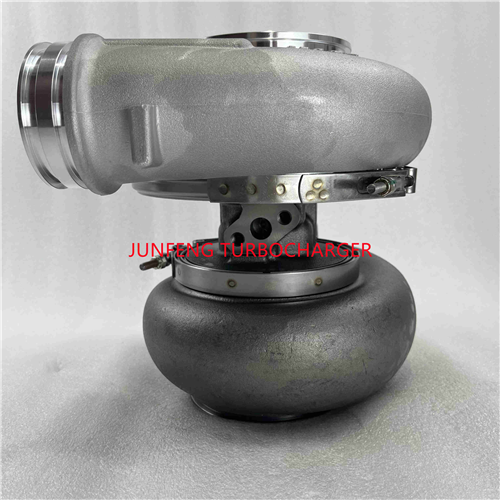

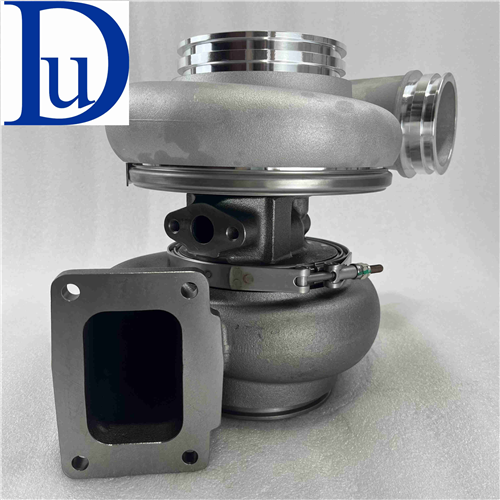

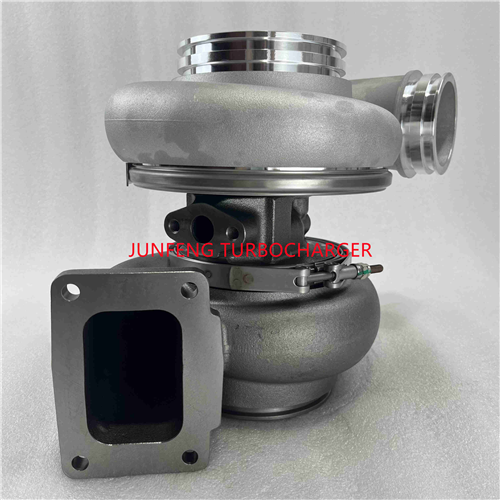

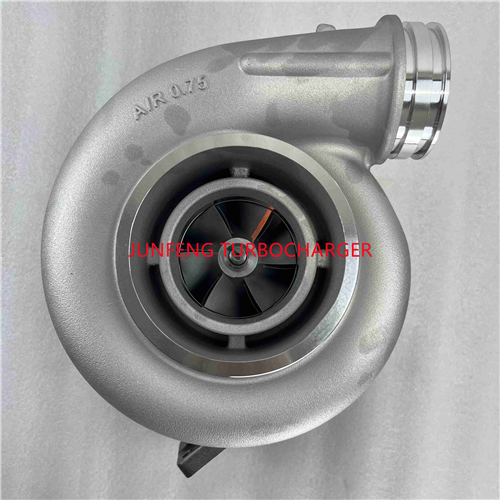

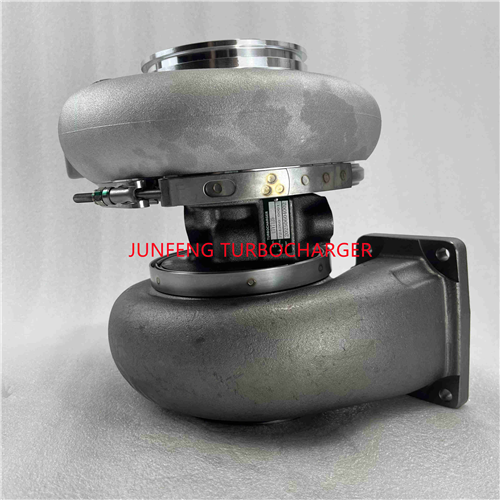

724260-0001 724260-5001S 305996 UTV7125 Turbocharger for Waukesha Stationary Gen Set with VGF Engine

724260-0001
Model : UTV7125
turbo part number : 724260-0001, 724260-1 724260-5001S
OE Number 305996
Year 2001-
Description Stationary Engines Industrial Gen Set
Engine VGF
Displacement 18.0L, 18000 ccm
Fuel CNG
Comp. Wheel 441829-0003 (Ind. 72.39 mm, Exd. 102.31 mm, Trm 8.07, 6+6 Blades, Superback)
Applications 2001- Waukesha Stationary Engines Gen Set with VGF Engine

Product Detail

Product Description

Part Number	724260-5001S
Previous Version	724260-0001, 724260-1
OE Number	305996
Year	2001-
Description	Stationary Engines Industrial Gen Set
CHRA	449530-0042 (449530-5042S)(208350)
Turbo Model	UTV7125
Engine	VGF
Engine Manufacturer	Waukesha
Displacement	18.0L, 18000 ccm
Fuel	CNG
Bearing Housing	449072-0016 (Oil Cooled)
Turbine Wheel	451215-0002
Comp. Wheel	441829-0003 (Ind. 72.39 mm, Exd. 102.31 mm, Trm 8.07, 6+6 Blades, Superback)
Back plate	447241-0007
Heat shield Number	410113-0002 (407967-0003)
Repair Kit	711494-0001 (468267-0010)
Turbine Housing	408532-0034 (5149174)
Compressor Cover	446823-0003
Turbine Housing A/R	1.23

2001- Turbocharger for Waukesha Stationary Engines Gen Set with VGF Engine
