Product Detail
| Part Number | 724260-5003S |
| Previous Version | 724260-0003, 724260-3 |
| OE Number | 305996B |
| Description | Industrial Gen Set |
| CHRA | 449530-0042 (449530-5042S)(208350) |
| Turbo Model | UTV7125 |
| Engine Manufacturer | Waukesha |
| Displacement | 18.0L, 18000 ccm |
| Fuel | CNG |
| Angle α (compressor housing) | 330º |
| Angle β (turbine housing) | 133º |
| Bearing Housing | 449072-0016 (Oil Cooled) |
| Turbine Wheel | 451215-0002 |
| Comp. Wheel | 441829-0003 (Ind. 72.39 mm, Exd. 102.31 mm, Trm 8.07, 6+6 Blades, Superback) |
| Back plate | 447241-0007 |
| Heat shield Number | 410113-0002 (407967-0003) |
| Repair Kit | 711494-0001 (468267-0010) |
| Turbine Housing | 408532-0036 |
| Compressor Cover | 446823-0003 |
| Turbine Housing A/R | 1.60 |

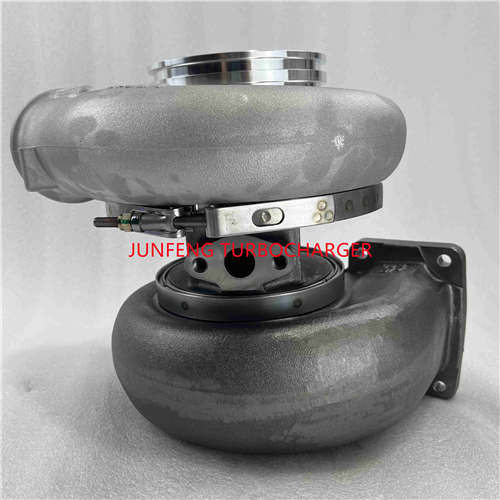

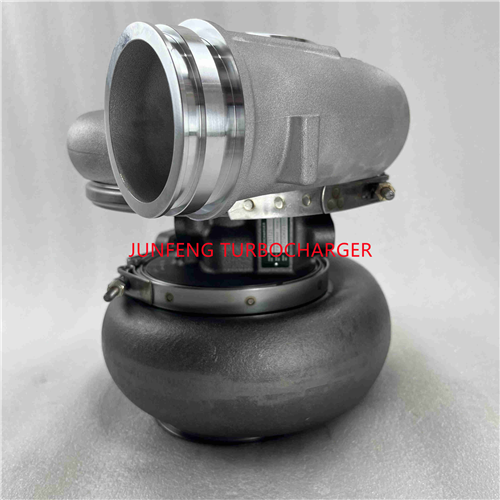

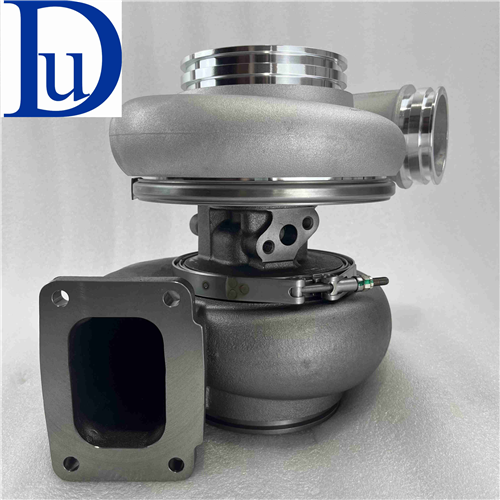

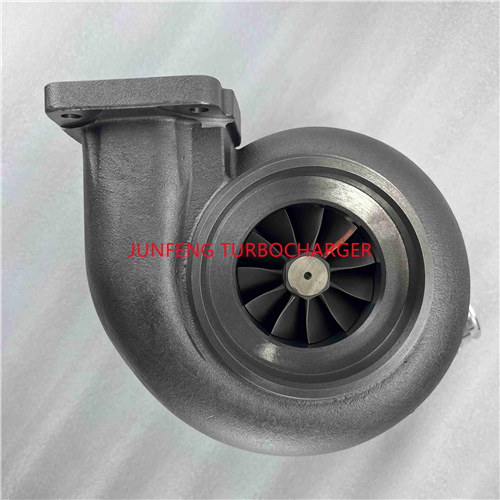

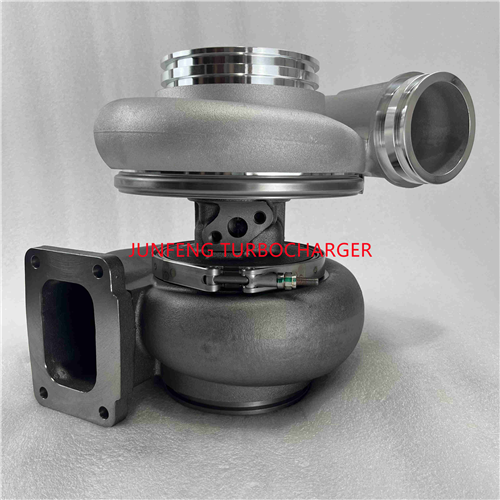

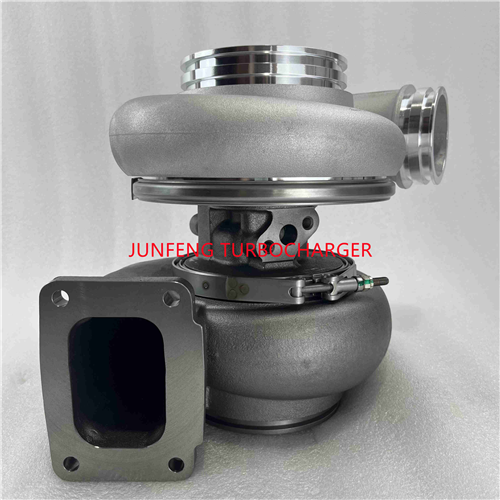

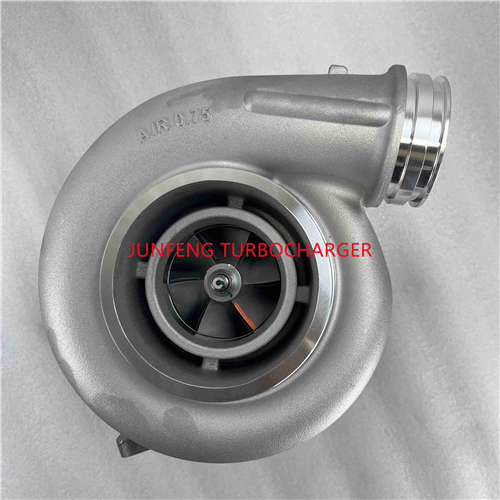

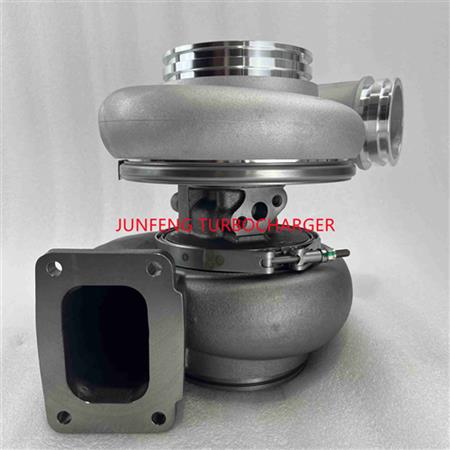

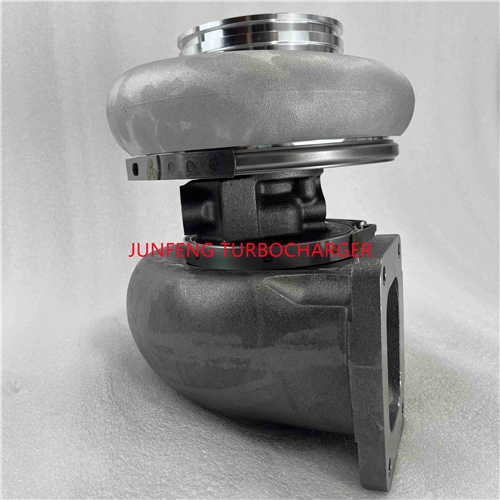

2001- Turbocharger for Waukesha Industrial Gen Set with CNG VGF Engine
