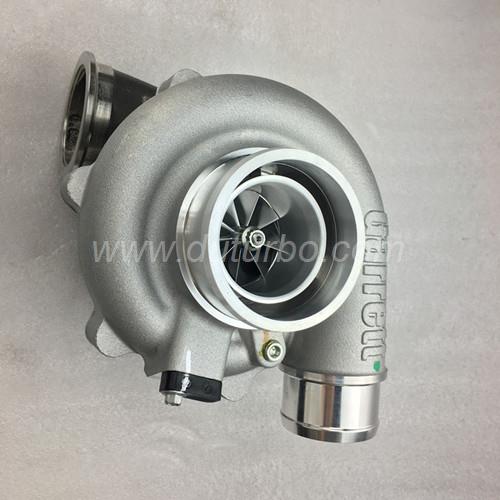

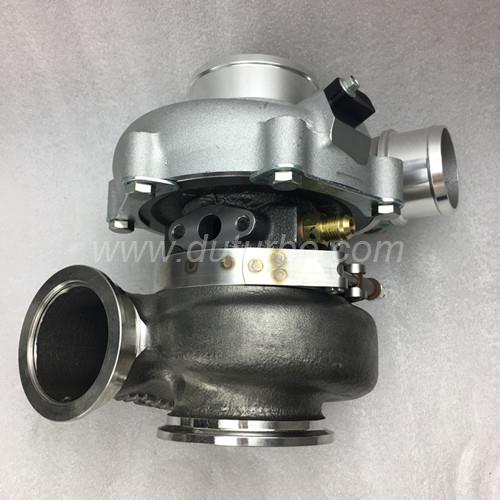

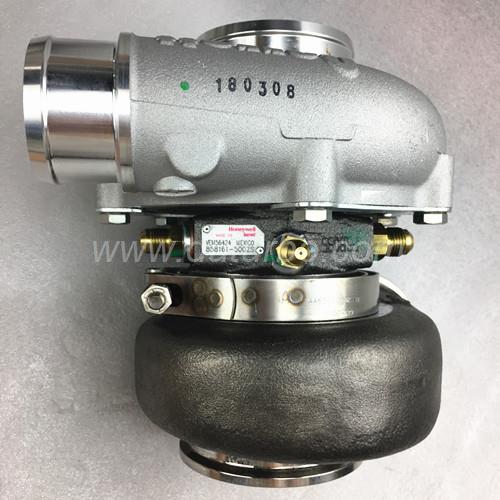

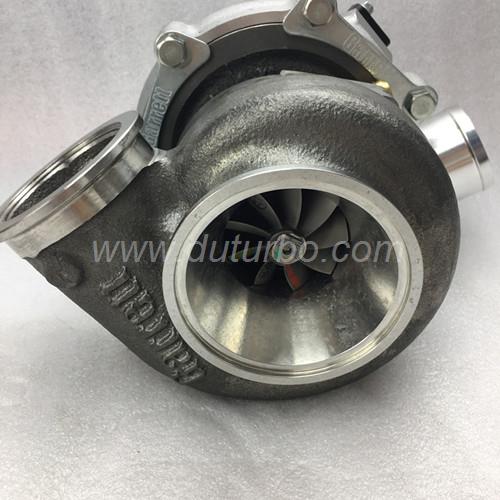

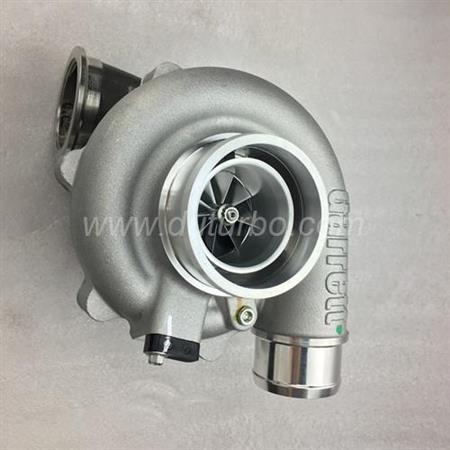

Garrett turbo G25-550 turbo 871389-5005s 858161-5002S New G-series performance turbo for 1.4L- 3.0L displacement cars

  • G25-550 turbo 871389-5005s
  • Part number:871389-5005s
  • Displacement:1.4L- 3.0L
  • KW:550-660 HP
  • Packing: Neutral packing
  • sample order:Accept
  • Delivery Time: Within 2days after your payment arrives
  • payment:T/T,western union
  • Trade term:EXW

Product Detail

  • Part Number; 871389-5001S
  • Previous Version ;877895-5001S, 877895-5011s
  • OE number ;871389-5002s
  • Year ;2018-
  • Description :for racing vehicles
  • CHRA ;858161-5002S
  • Turbo Model :G25 G25-550
  • Displacement ;1.4L- 3.0L
  • KW ;550-660 HP
  • turbine housing kit ;740902-0080
  • inlet; T25 /T4
  • outlet:V-BAND



  • PRODUCT SPECIFICATIONS:
  • Compressor Wheel Inducer: 48mm
  • Compressor Wheel Exducer: 60mm
  • Compressor Wheel Trim: 54
  • Compressor Housing Inlet: 3 Inch Diameter
  • Compressor Housing Outlet: 2 Inch Diameter
  • Compressor Housing A/R: .70
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 49mm
    Turbine Wheel Trim: 84
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 inch O.D. V-Band
  • Includes Oil Feed (1mm) Restrictor Fitting to -4AN
  • Includes two Coolant Fittings to -6AN
  • Alternate Garrett Product Code(s): 858161-5002S; 740902-0069
