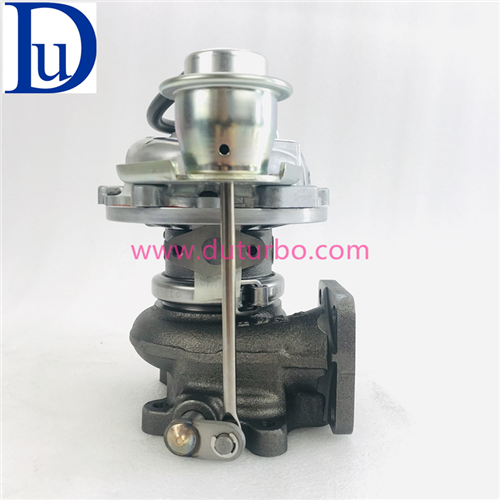

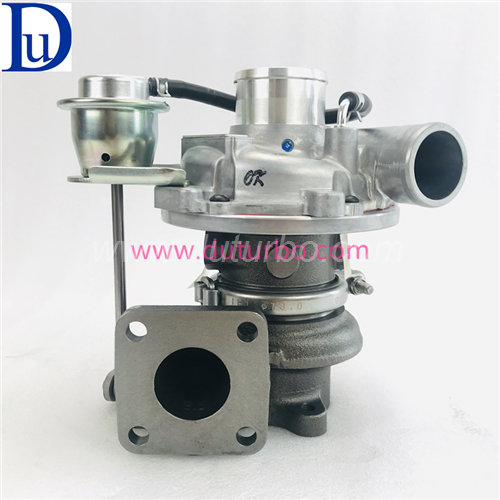

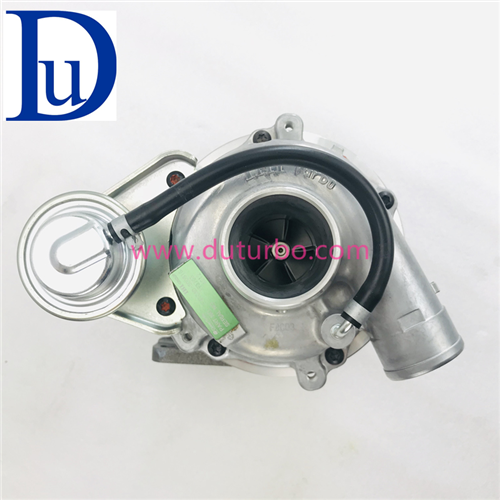

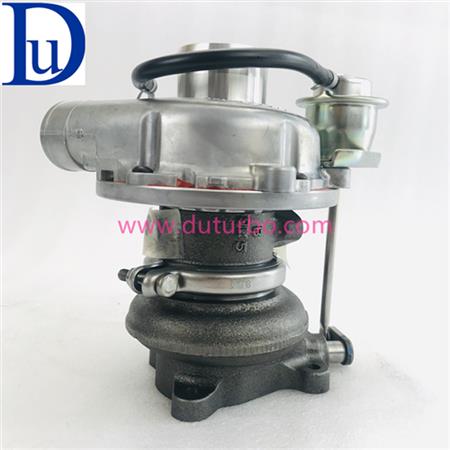

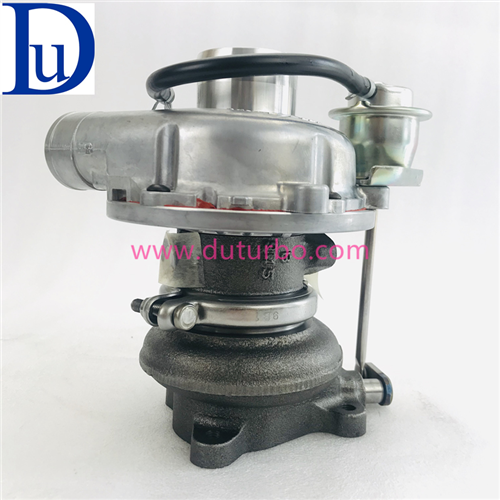

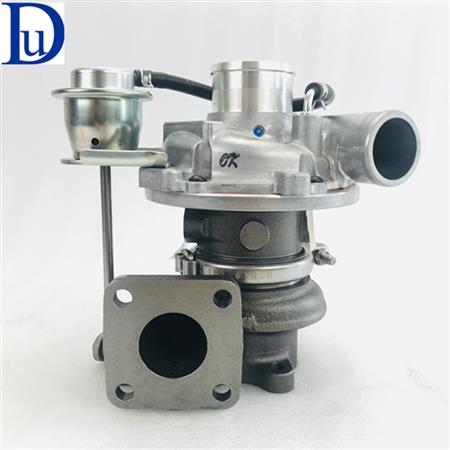

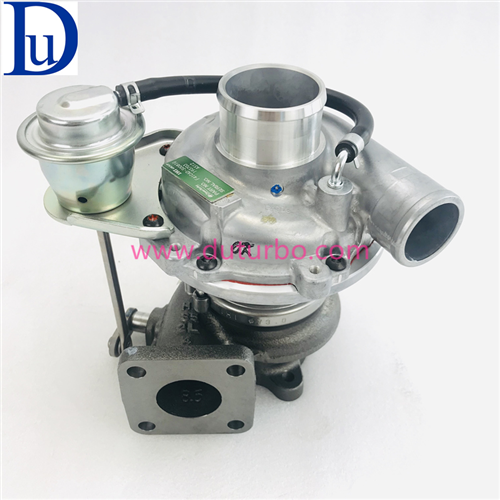

Geunine IHI RHF4 VA420081 238-9349 13575-6180 turbo for SHIBAURA Tractor ST445
Product Description
| Part Number | VB420081 |
| Previous Part Number | VA420081 |
| V-SPEC. | AS12 |
| OE Part number | 135756180, 238-9349, 2389349, 0104-890-012, 4T-506, 3170981, 4429826, 2390230, 2825179, 3082308, 3240237, 4429826 |
| Description | Shibaura New Holland Agricultural Caterpillar Skid Steer 3024C |
| CHRA | NZ870564 (1450040900, 1000040161) $300.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | RHF4-46001P8.5NHBRL323CAZ |
| Yanmar Part No | 135756180, 13575-6180 |
| Cat Engine | Models 3024C, C2.2T |
| Perkins Engine | Models 404C-22T and 404D-22 |
| Engine Manufacturer | Shibaura |
| Engine | N844L, N844LT |
| Displacement | 2.2L, 2200 ccm, 4 Cylinders |
| Fuel | Diesel |
| Machine Engine | 3024C, C2.2 |
| Marine Engine | C2.2 |
| Skid Steer Loader | 247B, 257B, 216B, 226B |
| Industrial Engine | 3024, 3024C, C2.2 |
| Multi Terrain Loader | 247B, 257B |
| Multi Terrain Loader | 247B2, 257B2 |
| S/N | 4241-2602, SAG1-UP, GGA1-3651, CSD1-3651, GGA3652-14251, CSD3652-10346, JAW1-UP, CYP1-UP, CYS1-UP, CYP1-UP, CYS8300-UP, 4RF00001-UP, 42400001-UP, JAW00001-UP, BXM00001-04224, MTL00001-05074, C4M00001-UP, MJH10575-UP, BXM04225-UP, MTL05075-UP, SLK07300-UP |
| Angle α (compressor housing) | 90° |
| Angle β (turbine housing) | 60° |
| Bearing Housing | (Oil Cooled)(1900011259) $85.00 NEW IN STOCK |
| Turbine Wheel | (Ind. 46.4 mm, Exd. 35.43 mm, 9 Blades)(1100016372) $97.00 NEW IN STOCK |
| Comp. Wheel | (Ind. 31.14 mm, Exd. 45.97 mm, 5+5 Blades, Superback)(1200016519) $65.00 NEW IN STOCK |
| Back plate | (1300016149) $36.00 NEW IN STOCK |
| Heat shield Number | (2030016050) $14.82 NEW IN STOCK |
| Repair Kit | NH449813 (5000080027) $95.10 NEW IN STOCK |
| Turbine Housing AR | 8.5 |
| Actuator | (2061016851) |
| Gasket (turbine inlet) | 210385 (2445130, 2258533)(Stainless Steel) $14.00 |
| Gasket (turbine outlet) | 210393 (2445136)(Inox Steel) |
| Gasket (oil outlet) | 210636 (210019)(2485006) (Paper) $4.40 |
| Replaced by | VB420081 |
| Perkins list price | $1954.02 |
| Manufacturer | IHI |
Replace IHI Turbo VA420057 Directly
Applications
Various, New Hollander, Cat 247 series skid, Terex loaders, ASV, Tractor TC55DA, SHIBAURA Tractor ST445 as well as many other applications.
