Product Detail

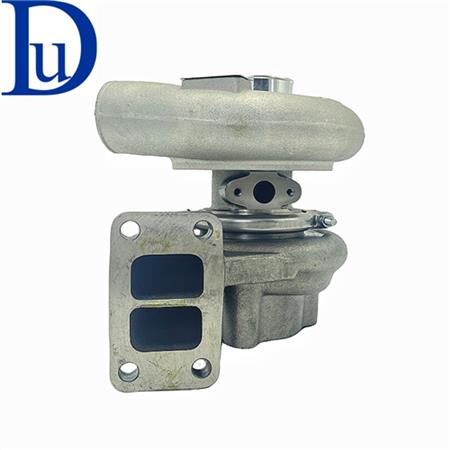

| Part Number | 49179-02230 |
| Previous Version | 4917902230, 49179-02220, 49179-02240, 49179-02260 |
| OE number | 117-7867, 1177867, 316375, 316375R, 5I-7585, 5I-7952, 5I7585, 5I7952 |
| Description | Mitsubishi Excavator Excavator 3046, 3066, 320, Cat 312, Cat 320B Mitsubishi Industrial |
| CHRA | 49179-08600 (316402)(5I7589, 5I-7589)(1000050142) |
| Turbo Model | TD06H-16M/12 |
| Manufacturer Part Number | 316375 |
| Displacement | 6.3L, 6300 ccm |
| Fuel | Diesel |
| KW | 143 |
| Engine | Track Hoe, S6K-T, E320L |
| Excavators | 318C L &318C LN, 320B &320B L, 320, Cat 312, Cat 320B |
| Track-Type Excavators | 320, 320L, 320N, 320B & 320B L, 322B L, 320B N |
| S/N | 7JK1-UP, 4XW00001-UP, GPA00001-UP, BTG00001-UP, 1KL00001-UP, 2DL00001-00213, 1XM00001-UP, 5BR00001-UP, 1ES00001-UP, 4NR00001-UP |
| Bearing Housing | 49179-20300 (49179-25310)(135-2359)(Oil Cooled) |
| Turbine Wheel | 49179-30220 (135-2357)(Ind. 67.31 mm, Exd. 58.75 mm, Trm 10.64, 12 Blades)(1100016084) |
| Comp. Wheel | 49185-40700 (135-2360)(Ind. 48.2 mm, Exd. 68.01 mm, Trm 5.38, 7+7 Blades, Superback)(1200016144) |
| Back plate | 49168-22510 (49178-22500)(197340)(135-2351, 245-5007)(1800016015) |
| Heat shield Number | 49168-18900 (193975)(135-2346)(2030016029) |
| Repair Kit | 49178-81100 (49178-89200)(2455063)(1401405750, 5000050111) |
| Turbine Housing (16 cm/Twin Scroll) | 49179-17800 (316371)(5I7586) |
| Compressor Cover | 49179-57860 (443213-0020, 316373)(5I7587) |
| Turbine Housing A/R | 12.0 |
| Gasket (turbine inlet) | 409039-0000 (210022-0000, 240-5022)(5I7742) |
| Gasket (oil outlet) | 210317 (34336-04100)(5I7689)(Paper) |
| NOTE | Complete replacement turbo. Internal Parts Not Interchangeable |
| Replaced by | 49179-02260 |
Use 316375
1999- turbocharger fits for Caterpillar S6K, E320B, Excavator 320 with S6K-T Engine
