Cummins CTT Industrial Crane HE451Ve HE400VG 4309124 Turbo rotor kits 4956C26 5350607

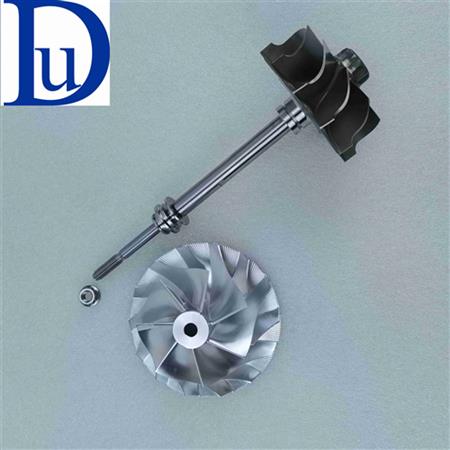

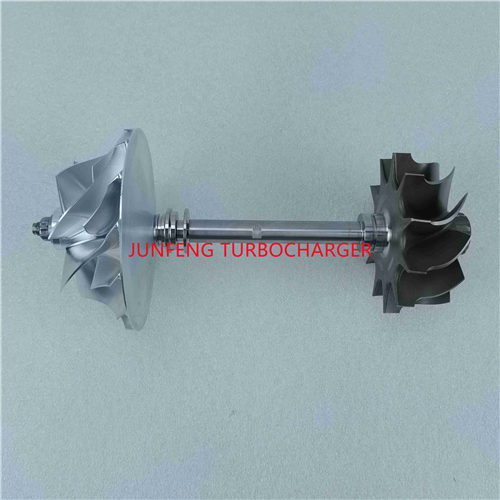

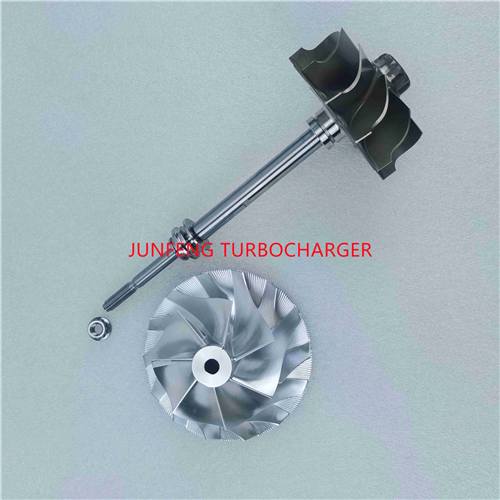

HE451Ve HE400VG 4309124 Turbo rotor kits
Model : HE451Ve, HE400VG
Previous Version 19700523D 2836368 2836369, 2836373, 2838786, 2838787 2838788 2838791 2840539 2840540 2840541 2840544
Part NO.: 5350526 5350607 5350627 5350627NX 5350627RX 5350629 5355262 5355263
OE numbers: 5355264 5355981NX 5359981, 5359981RX, 5455669, 5456971, 545697100 545697100H 545697100HX
OE NO.: 5456971H, 5456971HX, 5457032, 5457032H 5457032HX 5457203NX 5457203RX 5458510
OEM: 5458510NX, 5458510RX, 5458511, 5458511NX, 5458511RX
Year 2006-14
Turbine Wheel : 75.9mm x 66.97mm
COMPRESSOR WHEEL: 93MMx64mm
Applications 2006-14 Cummins (CTT) Industrial Crane with ISC ISL, B3, B4, ISM Engine

Product Detail

Product Description

Part Number	5350607
Previous Version	19700523D, 2836368, 2836369, 2836373, 2838786, 2838787, 2838788, 2838791, 2840539, 2840540, 2840541, 2840544, 2840545, 2840548, 2840549, 2840550, 2881791, 2881791NX, 2881791RX, 2881792, 2881792NX, 2881792RX, 2881793, 2881793NX, 3774353, 3774354, 3774355, 3774356, 3774358, 3774623, 3774624, 3774637, 3774638, 3774650, 3775131, 3775132, 3775141, 3775650, 3776837, 3776838, 3776839, 3792242, 3792244, 3792246, 3792247, 3792247NX, 3792247RX, 3792248, 3792250, 379225000HX, 3792250H, 3792250HX, 3792251, 3795128, 3795150, 3795151, 3795152, 3797541, 3797542, 379754200, 3797542HX, 4039980, 4040648, 4040649, 4040650, 4040651, 4042426, 4042428, 4042430, 4042432, 4044519, 4044520, 4045268, 4045269, 4046226, 4046227, 4309083, 4309083NX, 4309083RX, 4309124, 430912400, 4309124NX, 4309124RX, 4955428, 4955428NX, 4955429, 4955429NX, 4955582, 4956026, 4956026NX, 4956027, 4956027NX, 4956028
OE Number	4956C26, 4955428
Year	2006-14
Description	Industrial Crane
Manufacturer Part Number	5350526, 5350607, 5350627, 5350627NX, 5350627RX, 5350629, 5355262, 5355263, 5355264, 5355981NX, 5359981, 5359981RX, 5455669, 5456971, 545697100, 545697100H, 545697100HX, 5456971H, 5456971HX, 5457032, 5457032H, 5457032HX, 5457203, 5457203NX, 5457203RX, 5458510, 5458510NX, 5458510RX, 5458511, 5458511NX, 5458511RX
Turbo Model	HE451Ve, HE400VG
CHRA	N/A
Engine	ISC, ISL, B3, B4, ISM
Displacement	320V
Fuel	Diesel
Angle α (compressor housing)	257º
Angle β (turbine housing)	158º

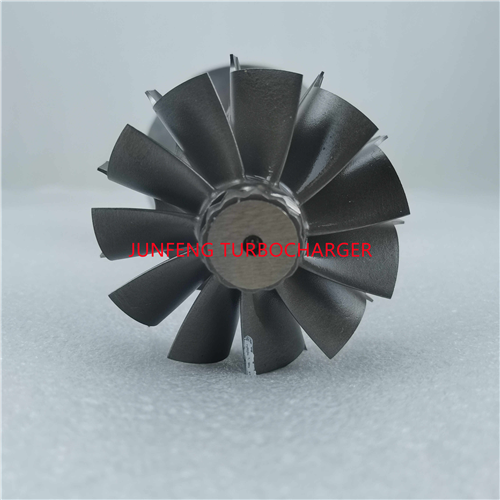

Turbine Wheel	2840238RX (Ind. 66.35 mm, Exd. 71.28 mm, 11 Blades) NEW IN STOCK

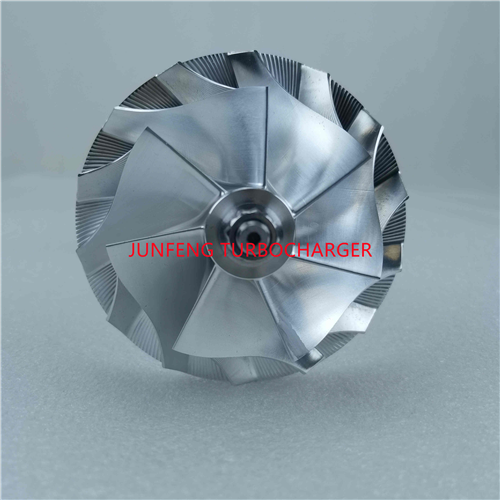

Comp. Wheel	(Ind. 61.95 mm, Exd. 92.96 mm, 7+7 Blades, Superback) NEW IN STOCK
Turbine Housing AR	VGT
Speed Sensor Kit	4034201H
Electronic Actuator	4034289H (12V) Reman
Electronic Actuator	4034290H (24V) Reman
Gasket (turbine inlet)	3088984
Gasket Kit	3685535

Applications

2006-14 turbocharger for Cummins (CTT) Industrial Crane with ISC, ISL, B3, B4, ISM Engine
