Product Detail
Product Description
| Part Number | 5352845 |
| Previous Version | 19514480D, 23536422, 23539062, 23539570, 2836826, 4043261, 4045291, 4047269, 2836826, 3781169, 3792071, 3798597, 3781169, 3786234, 378623400, 378623400H, 378623400HX, 3786234H |
| OE number | 23539062, 23536422, R23539062, R23536422, 23536802 |
| Description | Detroit Diesel Various, Fire Truck Class 3-8, Truck Kenworth, Peterbilt, Freightliner |
| Turbo Model | HE531VE |
| CHRA | 4034440 (4034440H) |
| Engine Manufacturer | Detroit Diesel, MTU Detroit Diesel |
| Manufacturer Part Number | 5329513, 5352845, 5498208, AP80055, 23536422, 23539062, 23536422, 23539062, E23536422, E23539062, E23539570, R23536422, R23539062, R23539570, 3792069, 4047598 |
| Fuel | Diesel |
| Displacement | 14.0L, 14000 ccm |
| Engine | Series 60 (VGT) on EPA07, MTU Detroit Diesel |
| SN | 1209197011 |
| Fuel | Diesel |
| Angle α (compressor housing) | 194° |
| Angle β (turbine housing) | 90 ° |
| Bearing Housing | (Oil cooled) |

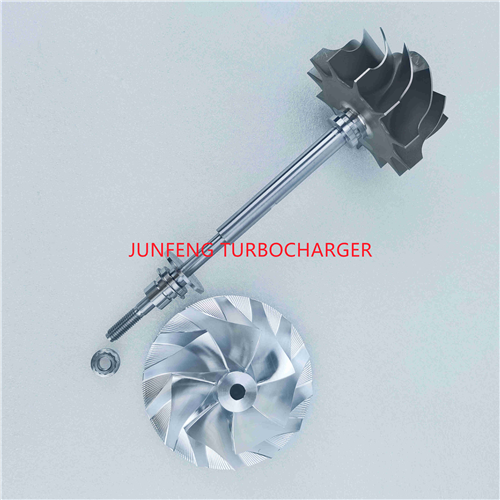

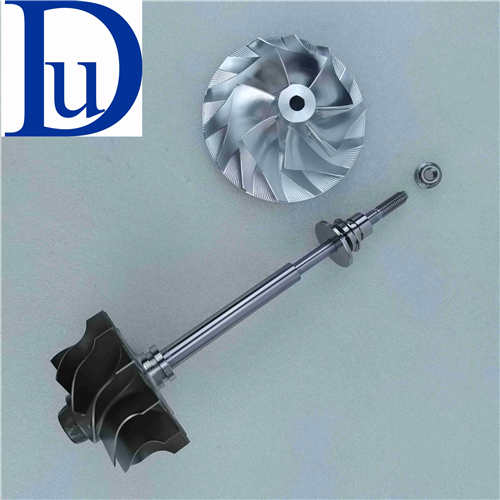

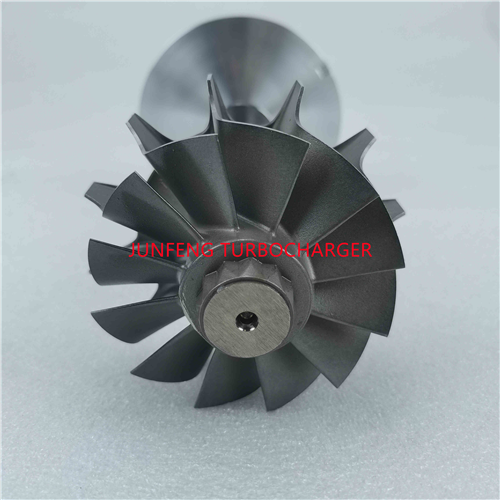

| Turbine Wheel | 4042581 (Ind. 84 mm, Exd. 70 mm, 12 Blades) |

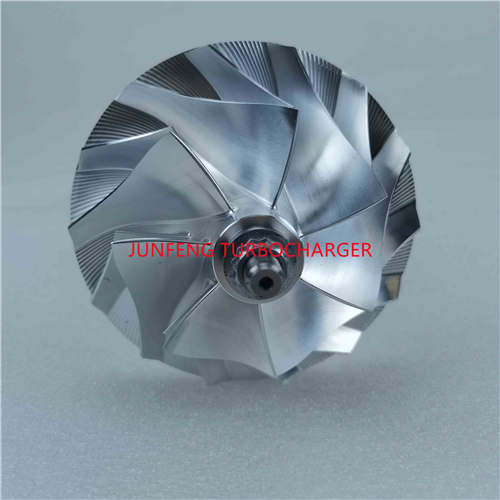

| Comp. Wheel | 4035068 (2836825)(Ind. 67 mm, Exd. 99 mm, Trm 6.30, 7+7 Blades, Superback) |
| Repair Kit | (1154500755) |
| Actuator Kit | 4034121 (3787580, 3787582, 4032244, 403412100, 403412100H, 4034121H, 23537677, E23537677, R23537677, 4034120H, AP80082, 4042309, 5352845, 5352847)(12 Volts) |
| Nozzle Ring Assembly | (1154500990) |
| Actuator Installation Kit | 4031365 (20837312, 23537048, 403136500H, 4031365H) |
| Gasket Kit | 3545576 (201049, 3519763) |
| Turbine Housing AR | VI EGR |
