Product Detail

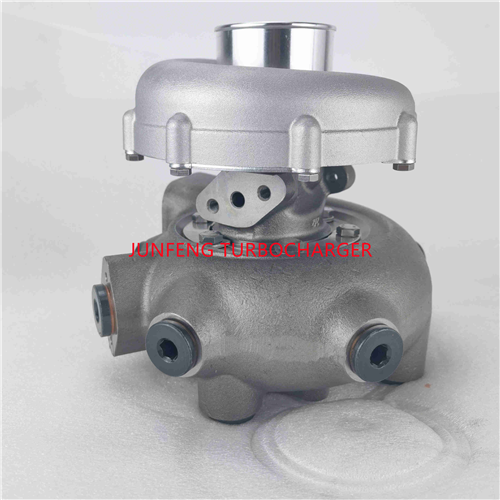

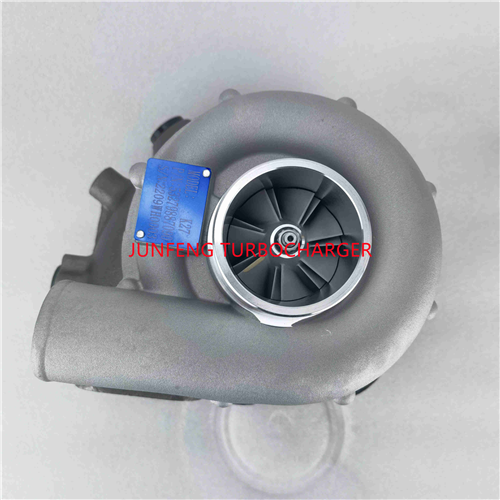

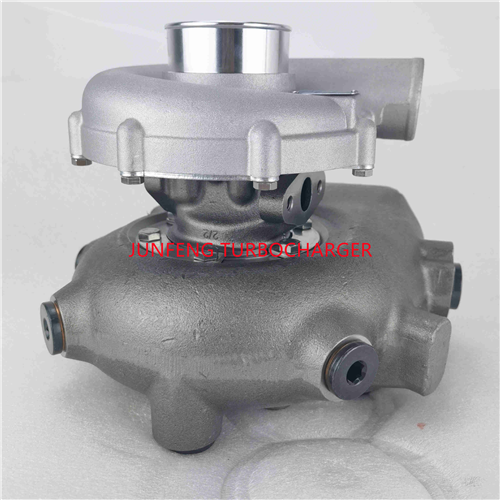

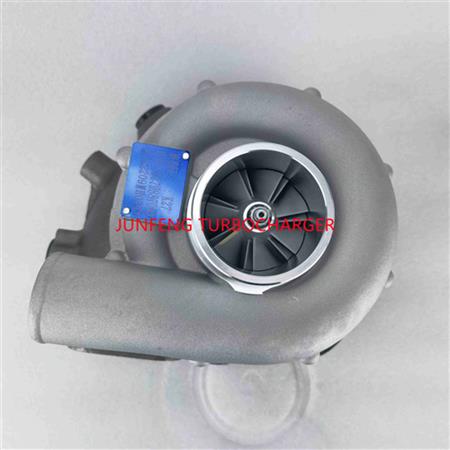

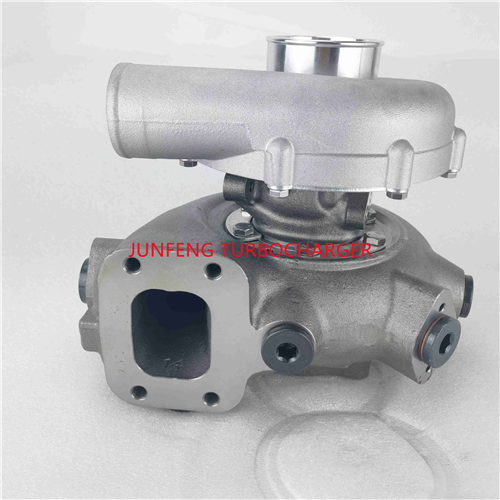

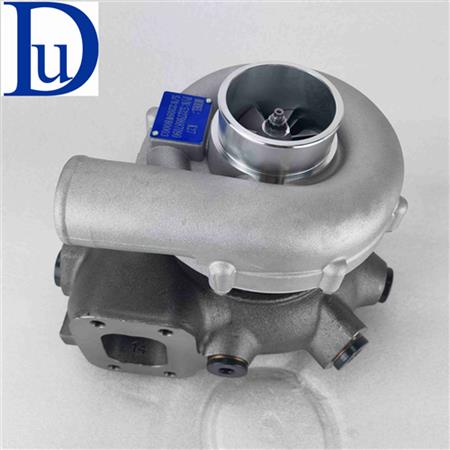

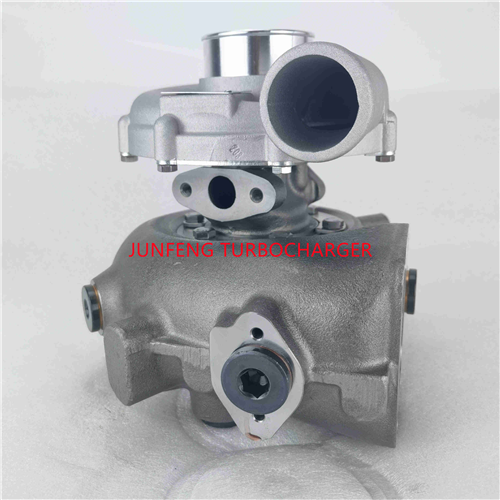

Turbo Details
Part Number | 53279887090 |
Previous Version | 5327-988-7090, 5327 988 7090, 5327-988-7090 |
OE number | 30-31627-1, 843663, 3802012 |
Year | 1977-07 |
Description | fits for Ship, Marine, Alaska Diesel, Komatsu |
Manufacturer Part Number | 53279707090, 5327-970-7090, 5327 970 7090 |
CHRA | 53277100000 (5327-710-0000)(NL# 30-00027) |
Northern Lights (Lugger) | 30-31627-1 |
Turbo Model | K27-2970N14.71GZATB |
Engine | used for John-Deere 6-359, TAMD60, TAMD60B |
Displacement | 5.9L, 5900 ccm |
KW | 100/134/197/200 |
RPM Max | 1800/2500 |
Fuel | Diesel |
Angle α (compressor housing) | 90° |
Angle β (turbine housing) | 90° |
Bearing Housing | 53271500010 (NL# 30-31633)(53271500001, 53271500004, 53271500006)(Oil Cooled)(1301027450) |
Turbine Wheel | 53271202103 (NL# 30-31637)(53271205013, 53271202105)(Ind. 60.25 mm, Exd. 75.56 mm, Trm 11.6, 12 Blades)(1301027435) |
Comp. Wheel | 53271232236 (NL# 30-31646)(53271232002)(Ind. 55.83 mm, Exd. 49.17 mm, Trm 2970N, 6+6 Blades, Flatback)(1301027406) |
Back plate | 53271515708 (NL# 30-31643) |
Heat shield Number | 53271652003 (NL# 30-31659)(53271652002) |
Repair Kit | 53277110001 (NL# 30-31630)(1301027753, 5000040117B) |

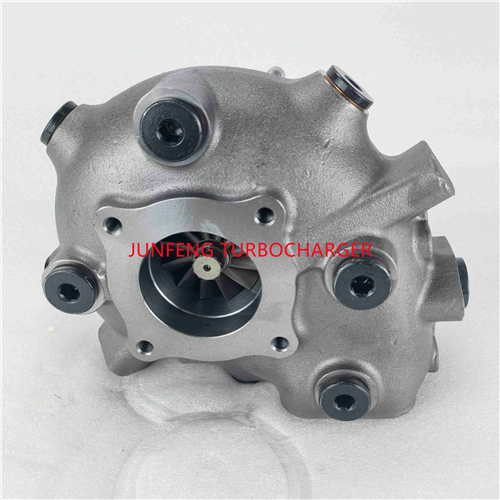

Turbine Housing (water-cooled) | 53271006408 (53271006400, 3271006404)(NL# 30-31628) |
Compressor Cover | 53271015004 (NL# 30-31629) |
Turbine Housing AR | 14 |
Gasket turbine inlet (single flow) | 52231083000 (NL# 11-31615) |
Gasket (oil outlet) | 52231586501 (210060, 210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001)(1900000037) |
Gasket (oil inlet) | 52231586500 |
NOTE | NL# Northern Lights |
1977-07 TURBOCHARGER FOR Alaska Diesel Ship with John-Deere 6-359, TAMD60 Engine
1977-07 TURBOCHARGER FOR Volvo Penta, Komatsu Ship with John-Deere 6-359, TAMD60 Engine
