Product Detail
| Part Number | 53269881590 |
| Previous Version | 5326-988-1590, 5326 988 1590 |
| OE number | 829368, 3802003 |
| Year | 1976-02 |
| Description | Marine, Ship |
| Manufacturer Part Number | 53269701590, 5326-970-1590, 5326 970 1590 |
| CHRA | 53267100002 (5326-710-0002) |
| Turbo Model | K26-2470/10.71W |
| Engine | TMD40 |
| Capacity | 3.5L, 3450 ccm, V-6 Cylinders |
| KW | 96/170 HP |
| RPM Max | 3600 |
| Angle α (compressor housing) | 225° |
| Angle β (turbine housing) | 315° |
| Bearing Housing | 53261500014 (858705)(Oil Cooled) |
| Turbine Wheel | 53261205002 (53261202107, 53261202119)(843998, 845831, 3581661)(Ind. 64.3 mm, Exd. 54.5 mm, 12 Blades)(1301026435) |
| Comp. Wheel | 53261232030 (53261232001)(Ind. 42. mm, Exd. 65.94 mm, 6+6 Blades) |
| Back plate | 53261515703 |
| Heat shield Number | 53261652001 |
| Repair Kit | 53267110001 (875632)(1301026751) |
| Turbine Housing (Water Cooled) | 53261016401 |
| Compressor Cover | 53261015227 |
| Turbine Housing AR | 10 |
| Gasket (turbine inlet) | 843009 Replaced by 3582676 |
| Gasket oil inlet | 210023 (842943, 859004)(409036-0000, 210023-0000, 55739, 147837) |
| Gasket (oil outlet) | 210060 (842986)(409267-0003, 409267-0002, 210060-0000, 51914, 148062, 311585) |
| Gasket Kit | (1900100139) |

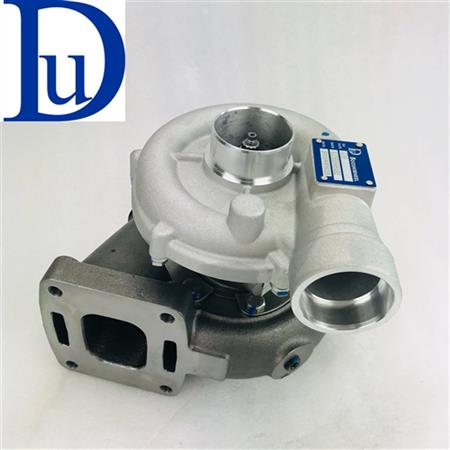

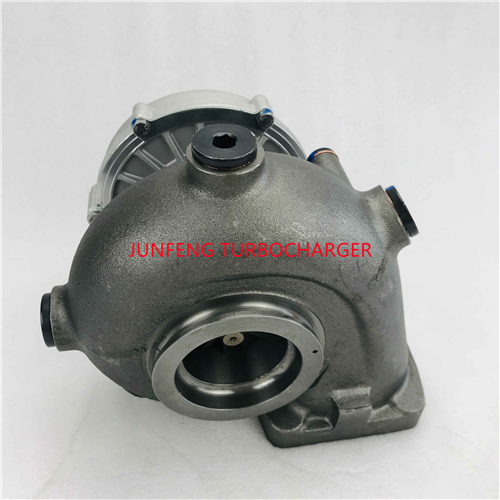

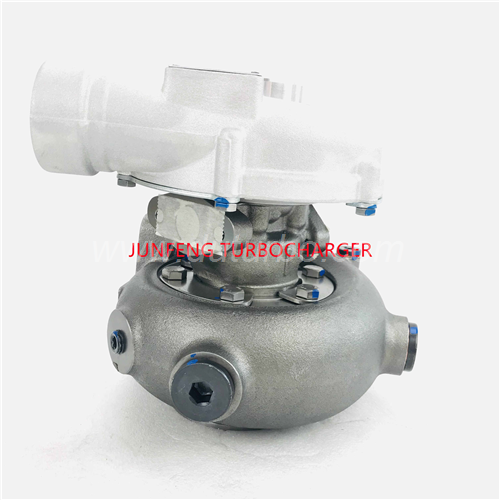

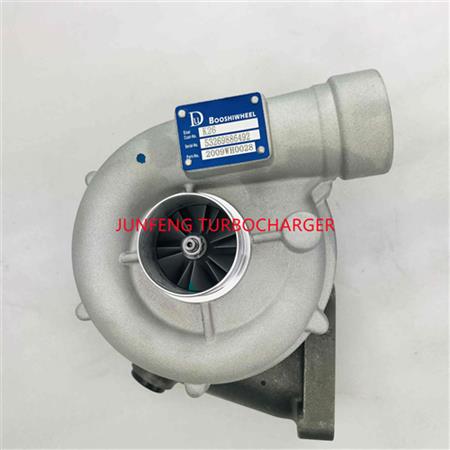

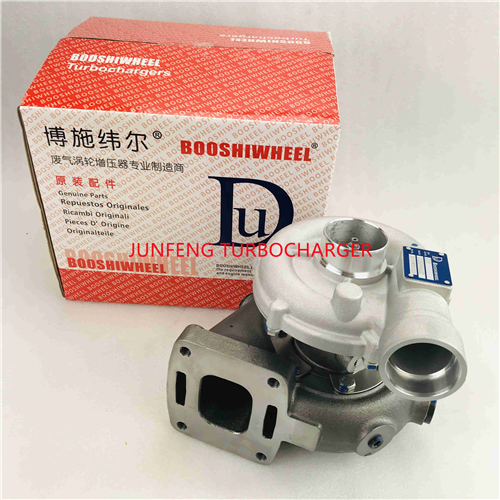

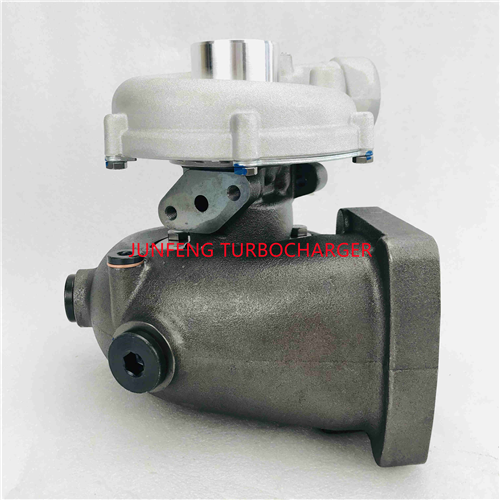

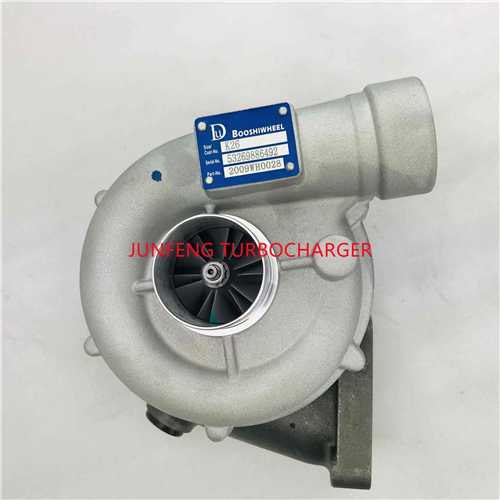

1976-02 TURBOCHARGER FITS FOR Volvo Penta Marine with TMD40 Engine
