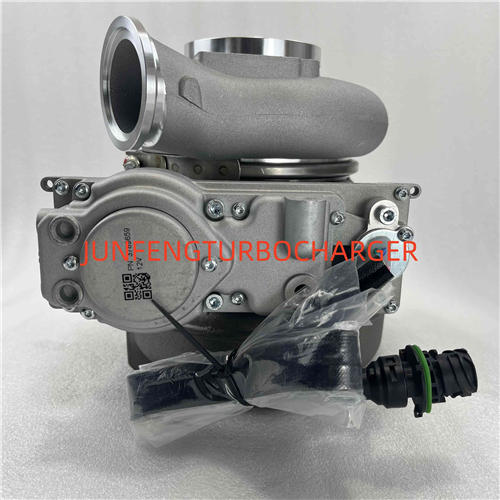

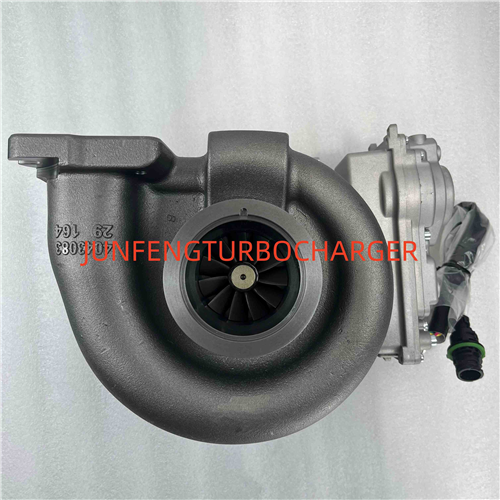

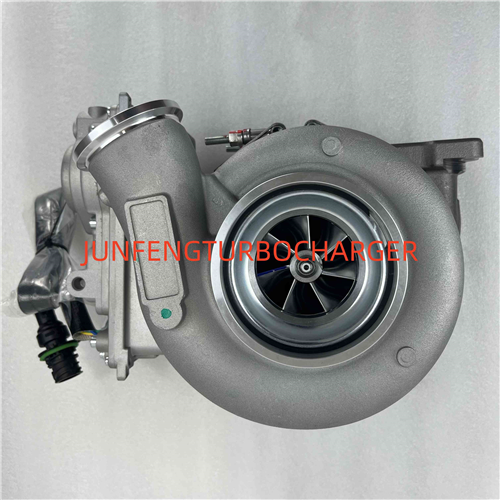

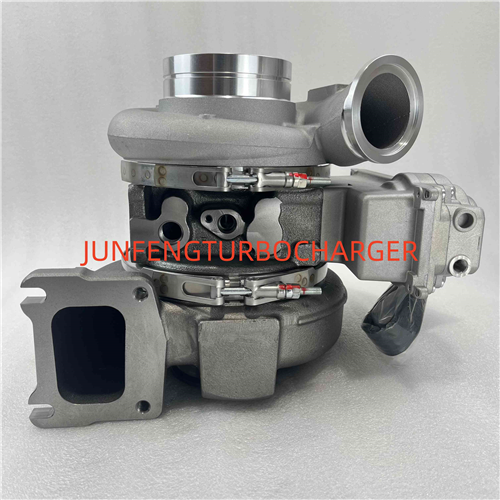

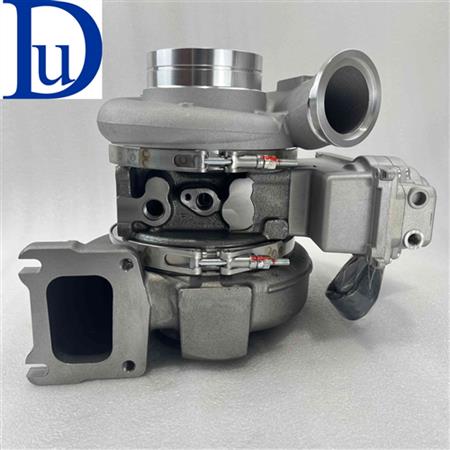

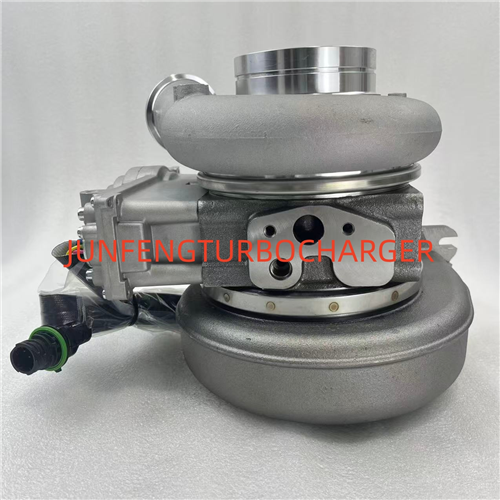

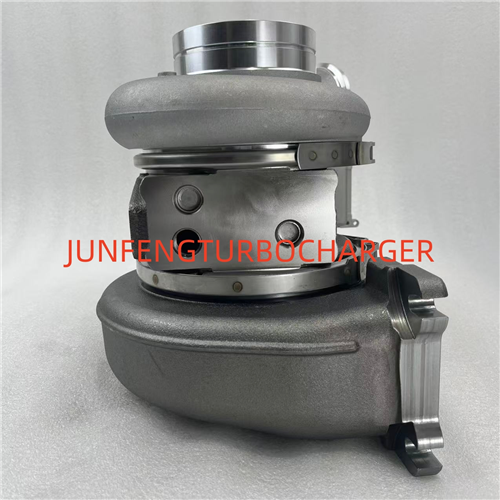

22014295 22014296 4031002 3776805 HE400VG VGT Turbocharger for Volvo Truck MD11 US07 Engine

4031002 HE400VG
Model: HE400VG, HE431VE
Part Number 3776805 2835095, 2840775, 3769171, 3773435, 4031002, 403100200
Previous Version 403100200H, 4031002H, 4031002HX, 4031003, 403100300, 4031003H, 4031205
OEM Customer Number 2835093, 2835094, 2835095, 2835096, 2835097, 2840771, 2840773, 2840775, 2840777, 2840779 3769170, 3769171
OEM Supplied Number 20941931, 20941933, 21012875, 21012876, 21012877, 21080078, 21080079, 21080080, 21178032
OE NO. : 21178033, 21178034, 21424404, 21424405, 21424406, 21424419 21592749, 21592750, 21592751
OEM. : 21597914, 22014294, 22014295, 22014296, 22883059, 22883060
Year 2006-12
Manufacturer Part Number 4031003, 5328825, 5328826, 5353325, 5353326, 5355445, 5355446, 5355450
Engine MD11 US07

Product Detail

Product Description

Part Number	3776805
Previous Version	2835095, 2840775, 3769171, 3773435, 4031002, 403100200, 403100200H, 4031002H, 4031002HX, 4031003, 403100300, 4031003H, 4031205, 403120500H, 4031205H, 4031205HX, 4031239, 40312NX, 40312RX, 40313HX, 4046514, 4046515, 4046516, 4046517, 4046518, 4047365, 4047366, 4047367, 4047368, 4047369, 4048068, 4048069
OEM Customer Number	2835093, 2835094, 2835095, 2835096, 2835097, 2840771, 2840773, 2840775, 2840777, 2840779, 3769170, 3769171, 3769180, 3769181, 3769182, 3769182RX, 3773434, 3773435, 3776801, 3791468, 3791469, 3791493, 3791494, 3791495
OEM Supplied Number	20941931, 20941933, 21012875, 21012876, 21012877, 21080078, 21080079, 21080080, 21178032, 21178033, 21178034, 21424404, 21424405, 21424406, 21424419, 21592749, 21592750, 21592751, 21597914, 22014294, 22014295, 22014296, 22883059, 22883060
Year	2006-12
Manufacturer Part Number	4031003, 5328825, 5328826, 5353325, 5353326, 5355445, 5355446, 5355450, 5355451, 5355452, 5451879, 85003608, 85013027, 85013028, 85013029, 85013053, 85021420, 85110393, 85115989, 85115990, 85115991, 85123286, 85123288, 85123290, 85136170, 85136171, 85136180, 85151099, 85213710
CHRA	4034328 (4034328H)
Turbo Model	HE400VG, HE431VE
Engine	MD11 US07
Displacement	13.0L, 1300 ccm
Fuel	Diesel
KW	325/440 HP
Angle α (compressor housing	127/234°
Angle β (turbine housing)	166/173°
Service Kit	(Major)(1154400755) NEW IN STOCK
Nozzle Ring Assembly	IN STOCK
Turbine Housing AR	VGT
Actuator (Electronic)	4034114 (21517180, 21754439, 28084716, 28209382, 2837207, 3780595, 3783399, 3787586, 3787591, 3789659, 3789659H, 3789662, 4032170, 4032798, 403411400, 4034114H, 4047112, 5359093, 535909300, 535909300H, 5359093H, 599-5002, 5995002, 85013730, 85013731)(12 Volts) $1,170.75
Gasket Kit	4032585
Gasket (oil inlet)	5264570 (3899343, 4938639)
Gasket (turbine inlet)	3755843
NOTE	With Actuator
