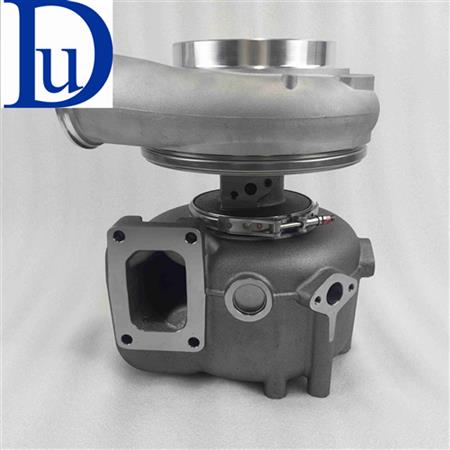

Product Detail

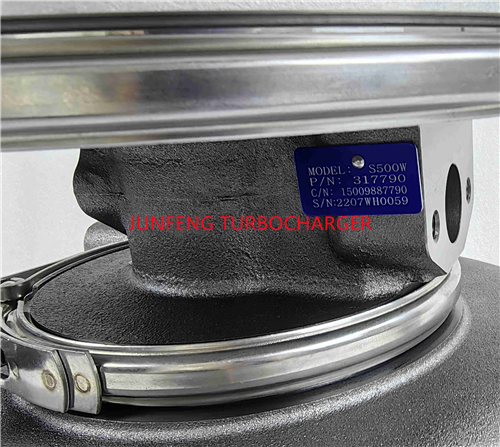

| Part Number | 15009987790 |
| Previous Version | 1500-998-7790, 317790, 1500-988-7790, 1500 998 7790 |
| OE number | 3826598, 3802116, 3802114 |
| Year | 1999-11 |
| Description | Ship, Marine |
| Manufacturer Part Number | 317790, 1500-970-7790 |
| CHRA | 317865 |

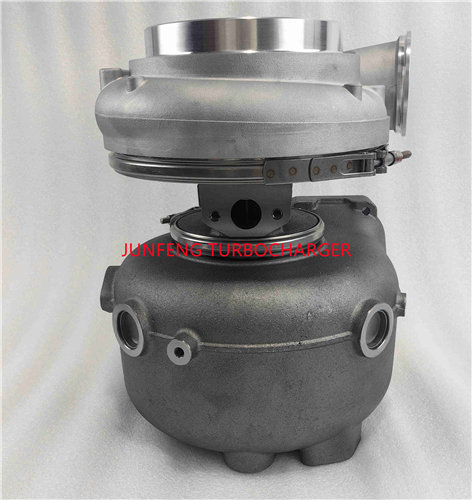

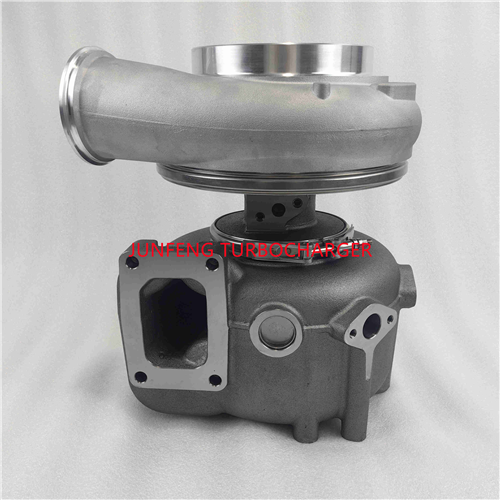

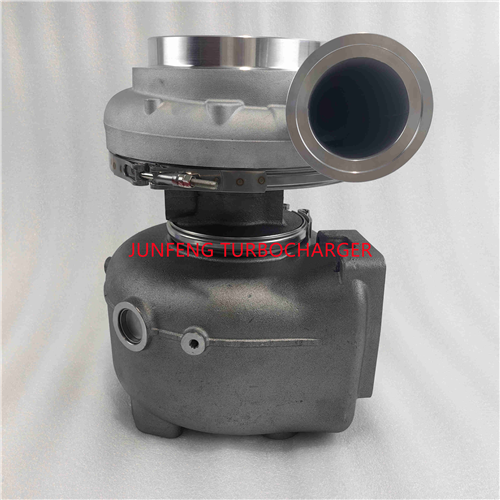

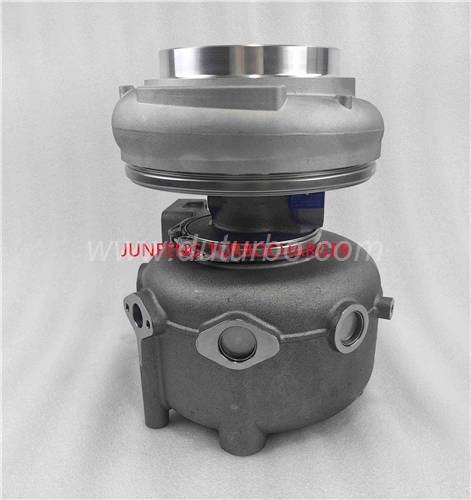

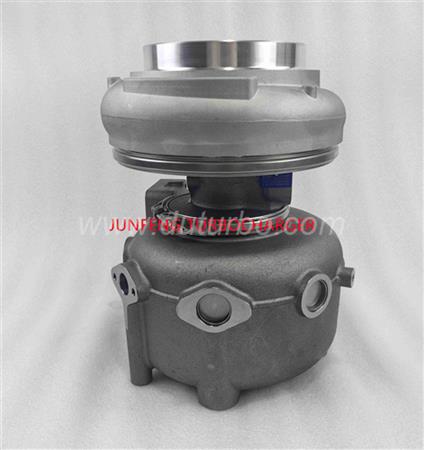

| Turbo Model | S500W-110_55AABM/0.82HJ2 |
| Engine Model | D12, D31A, D31B and D31D, MD11 EURO 3 |
| Interchangeable Turbo Part OE No | 317790, 3802116, 3826598 |
| Fuel | Diesel |
| Source Reference | 866720 |
| Displacement | 12.0L, 12000 ccm |
| Engine Manufacturer | Volvo - Penta |
| KW | 507/680 |
| RPM Max | 2300 |
| Fuel | Diesel |
| Angle α (compressor housing) | 90° |
| Angle β (turbine housing) | 320° |
| Bearing Housing | 317303 (Oil Cooled) NEW IN STOCK |
| Turbine Wheel | 318156 (Ind. 88.95 mm, Exd. 99. mm, 11 Blades) |

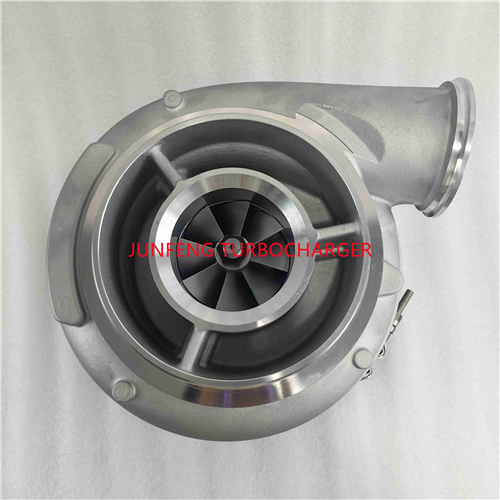

| Comp. Wheel | 317294 (Ind. 78.32 mm, Exd. 114.57 mm, Trm 8.99, 8+8 Blades, Billet) |
| Back plate | 317311 (171524) |
| Heat shield Number | 318032 NEW IN STOCK |
| Repair Kit | 318416 |

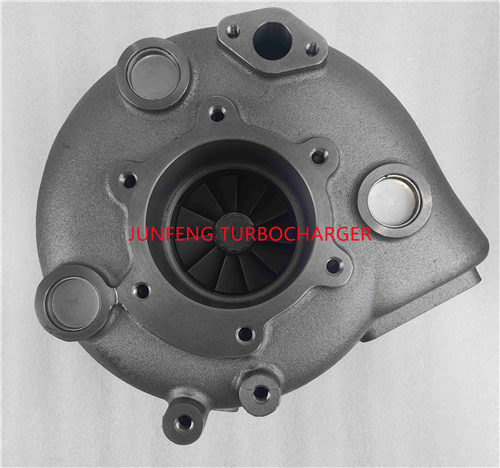

| Turbine Housing (water-cooled) | 317867 |
| Compressor Cover | 317295 |
| Gasket (turbine inlet) | 470939 (417382, 20784537) (Stainless Steel) |
| Gasket oil inlet | 420641 (1006177) |
| Gasket (oil outlet) | 470993 (1027702) |
| NOTE | Intercooler, Restricted to Volvo-Penta |
1999-11 Volvo Penta Ship with MD11 EURO 3 Engine
