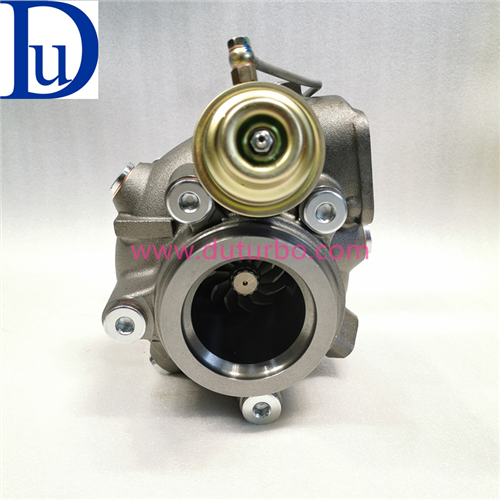

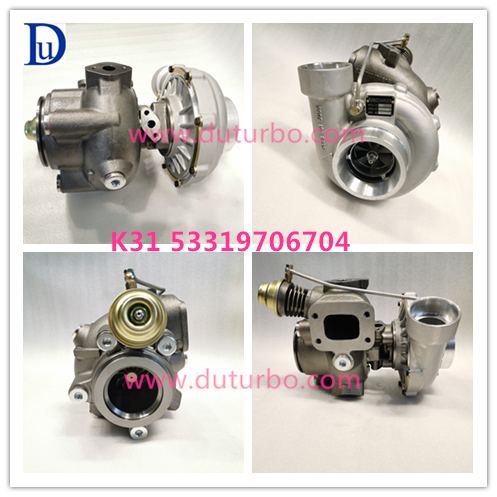

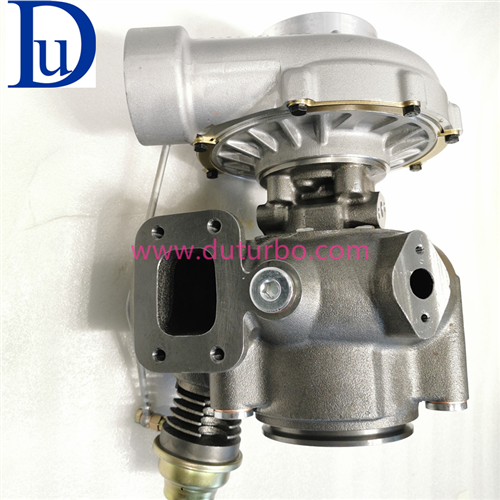

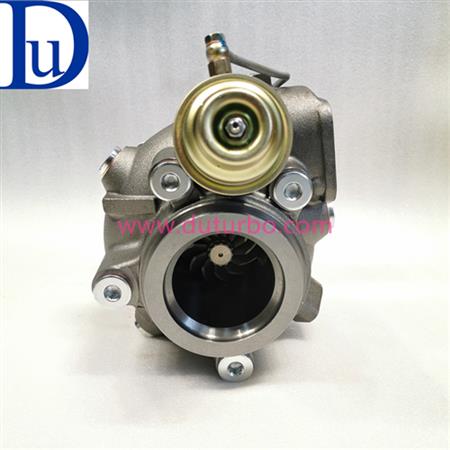

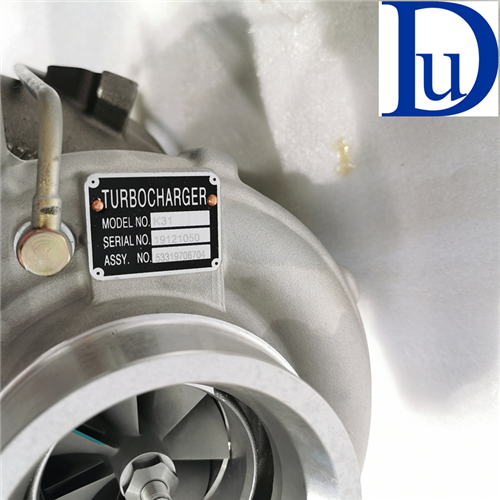

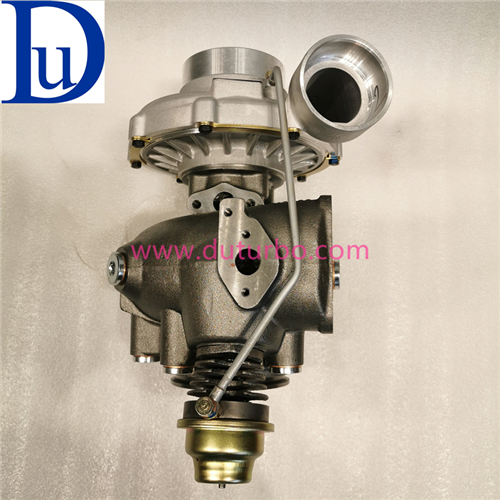

K31 Turbo 53319986719 53319706704 53319706719 53319886704 3837691 turbo for Volvo Penta Ship with TAMD74P, D7M+ Engine
Turbo Product Description
| Part Number | 53319986719 |
| Previous Version | 5331-998-6719, 5331 998 6719, 53319886704, 53319886719 |
| OE number | 53319986719, 53319706719, 53319886704, 53319706704, 3837691, 3827195 |
| Year | 2002-09 |
| Description | Marine, Ship |
| Manufacturer Part Number | 53319706704, 53319706719, 5331-970-6704, 5331-970-6719 |
| CHRA | 53317100012 (5331-710-0012) $1,840.07 |
| Turbo Model | K31-3767OOAKB9.61RYCSB |
| Engine | TAMD74P, D7M+ |
| Engine Manufacturer | Volvo-Penta |
| Capacity | 7.3L, 7300 ccm |
| Power | 350/490 HP |
| KW | 350 |
| RPM Max | 2600 |
| Angle α (compressor housing) | 70° |
| Angle β (turbine housing) | 90° |
| Bearing Housing | 53331500008 |
| Turbine Wheel | 53311205008 |
| Comp. Wheel | 53311232004/53311232014 $275.00 |
| Compressor back plate | 53331515713/53331515714 |
| Heat shield | 53311652001 |
| Repair Kit | 53277110076 $281.48 |
| Turbine Housing (water-cooled) | 53311007400 $821.98 |
| Actuator | 58061100372/58061100368/58061100364 $486.28 |
| Waste gate valve | 58061100364/58061100368 $397.80 |
| Settings Waste gate (pressure) | 2 45 bar |
| Settings Waste gate (lift shaft) | 2.00 mm |
| NOTE | Inter cooler; restricted to Volvo-Penta; replacement for K31-6704 |
Application
2002-09 Volvo Penta Ship with TAMD74P, D7M+ Engine
