Product Detail
Product Details
| Part Number | 407370-5009S |
| Previous Version | 407370-0009, 407370-5004S, 407370-9, 407370-9009 |
| OE number | 5103838, 5141854, R5103838, R5141854 |
| Description | Truck, Gen. Set, Marine, Industrial Generator Engine |
| CHRA | 407302-0001 (407302-5001S, 407302-0005)(05149299, 118002XR, 5149637, R5149637, 5199020) |
| Turbo Model | T18A40 |
| Engine | 12V149T, 12V150T, 8V71T, 16V149T MTU, 16V149T, 8V71T |
| Engine Manufacturer | Detroit diesel inter cooled Engines 6-71 and 12V71 |
| Cylinders | V8/V12 Cylinders |
| Displacement | 13963/9300/39100 ccm |
| KW | 163 HP |
| NSN | 2950010898895, 2950-01-089-8895 |
| Fuel | Diesel |
| SN | 1704770-02C |
| Bearing Housing | 407214-0010 (407214-0011)(3022514, 5149403, 5199024)(Oil Cooled) |
| Turbine Wheel | 407218-0006 (407293-0004)(207424, 4061087, 6374154, 23511699, 5149298, 202851)(Ind. 95.65 mm, Exd. 127.05 mm, 11 Blades) |
| Comp. Wheel | 407869-0000 (5199023)(Ind. 82.65 mm, Exd. 127.0 mm, 8+8 Blades, Billet) |
| Back plate | 407215-0000 (407215-0006)(5199028, 207427, 490335, 637417, 3004583, 5149399, 4072156) |
| Heat shield Number | 406687-0002 (5199055)(Cast) |
| Repair Kit | 468107-0000 (1100181752) |
| Turbine Housing | 407738-0003 (5199484) |
| Compressor Cover | 407333-0000 (5199429) |

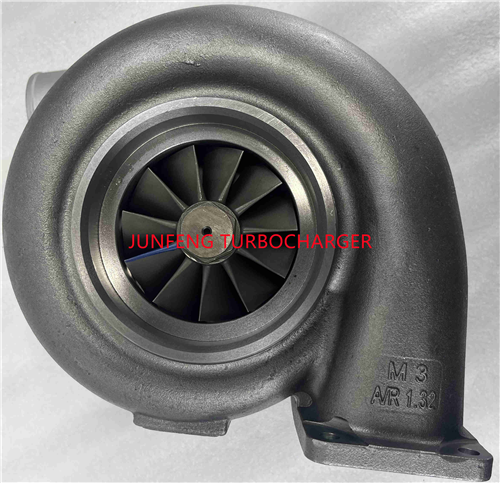

| Turbine Housing AR | 1.32 |
| Gasket (turbine inlet) | 409038-0001 (210835-0000, 9749, 7M7273) |
| Gasket oil inlet | 210019 (409266-0003, 3819900, 9737, 1S6595, 201049, 129119)(1900000035) |
| Gasket (oil outlet) | 210018 (409267-0002, 3500682, 3519763, 3709738, 9738, 9988, 1S4810, 201048, 129120)(1900000025) |
Application
turbocharger for Detroit MTU Diesel Truck, Marine, Industrial Generator Engine with 8V71/149, 16V149T Engine
