Product Detail

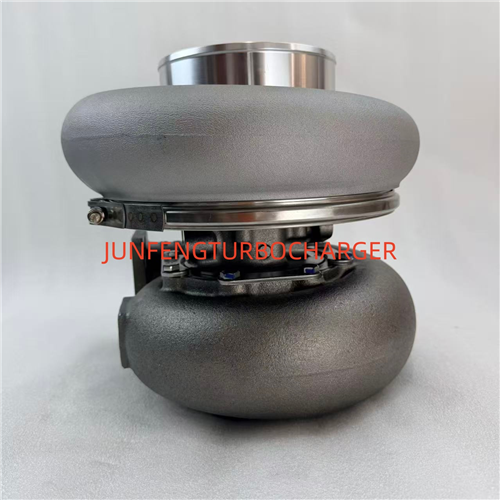

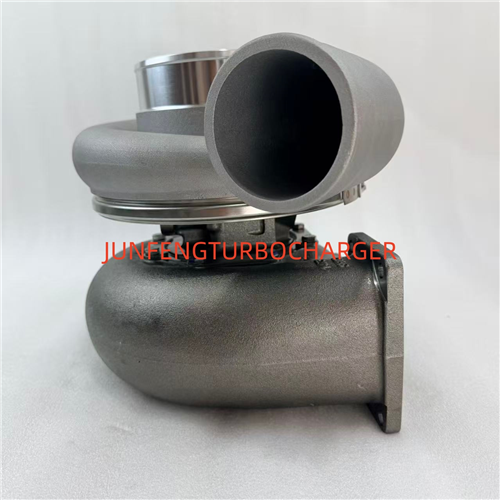

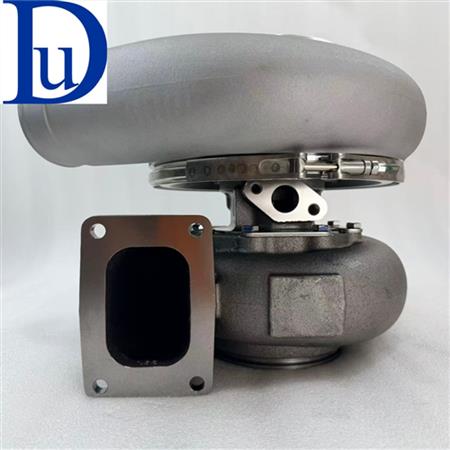

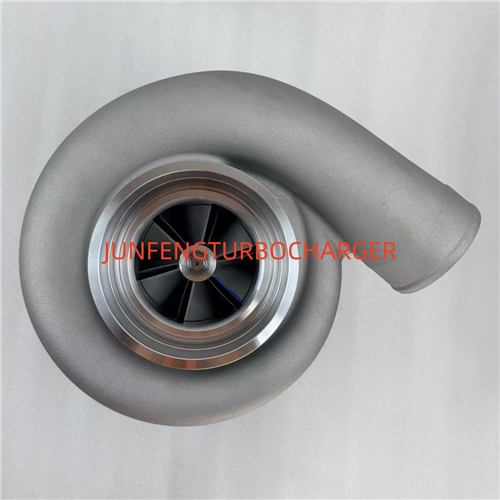

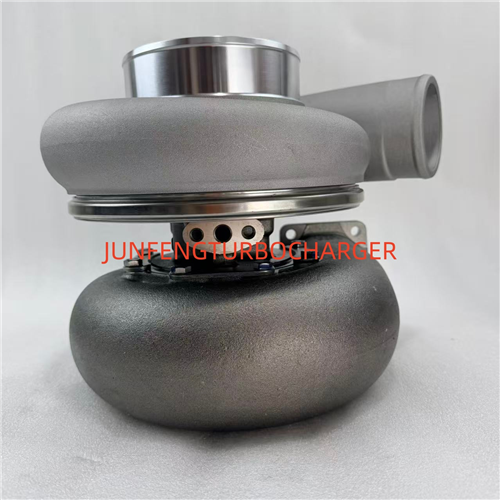

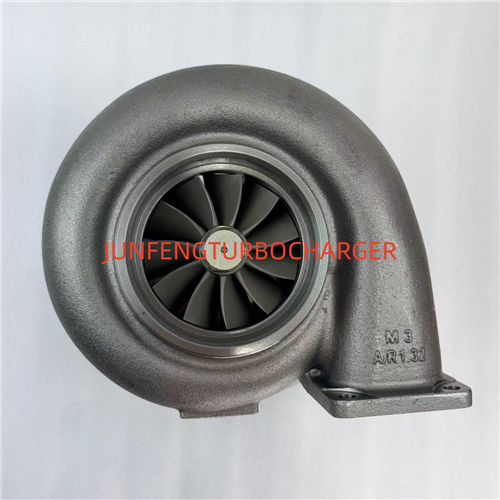

| Part Number | 409750-5003S |
| Previous Version | 409750-0003, 409750-3, 409750-5003, 409750-9003, 409750-9003S, 4097500003, 4097505003, 4097509003, 4097509003S, 465950-0001, 465950-5001, 465950-9001, 4659500001, 4659505001, 4659509001, |
| OE Number | 5103294, 5104478, R5103294, R5104478 |
| Description | Generator, Industrial |
| CHRA | 408685-0001 (408685-9001S, R5199868) |
| Turbo Model | T18A90 |
| Engine | 16V92TA |
| Engine Manufacturer | Cummins |
| Displacement | 24.1L, 24100 ccm, V16 Cylinders |
| KW | 880 |
| RPM Max | 2100 |
| Fuel | Diesel |
| Angle α (compressor housing) | 132º |
| Angle β (turbine housing) | 0º |
| Bearing Housing |
4407214-0011 (5149403, 3022514)(Oil Cooled) |
| Turbine Wheel | 408649-0005 (5149401, 5199856, 3026508)(408649-0001) |
| Comp. Wheel | 408648-0001 (5199855)(Ind. 91.1 mm, Exd. 127. mm, Trm M, 6+6 Blades) |
| Back plate | 407215-0000 (5199028, 207427, 490335, 637417) |
| Heat shield Number | 406687-0002 (5199055) |
| Repair Kit | 468107-0000 (1100181750) |
| Turbine Housing | 407738-0023 (3027452, 5149398) |
| Compressor Cover | 408557-0001 (5199854) |
| Turbine Housing AR | 1.32 |
| Gasket (turbine inlet) | 409038-0001 (132040, 7M7273)(9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-000 |
| Gasket (oil outlet) | 210018 (409267-0002, 3519763, 3500682, 3709738, 201048, 1S4810, 9738, 9988, 129120)(1900000025) |
1973- Turbocharger fits for Detroit Diesel Industrial with 16V92TA Engine
