Product Detail
| Part Number | 715690-5001S |
| Previous Version | 715690-0001, 715690-2, 7156905001S |
| OE Number | 23527084, R23527084, E23527084, RR23527084 |
| Description | Marine Engine, Engine & Power Units |
| Turbo Model | UTW75, UTW7503 |
| CHRA | 449530-0039 (449530-5039S)(23528608) |
| Displacement | 12.7L, 12700 ccm, 6L Cylinders |
| Engine | 6L60 |
| Fuel | Diesel |
| S/N | GEM29179 |
| KW | 807 HP |
| Bearing Housing | 449072-0003 (Oil Cooled) |
| Turbine Wheel | 449587-0005 (Ind. 86. mm, Exd. 102.09 mm, 11 Blades) |
| Comp. Wheel | 447033-0004 (Ind. 74.42 mm, Exd. 52.1 mm, 6+6 Blades, Superback) |
| Back plate, Seal plate | 432732-0008 |
| Heat shield Number | 407657-0009 |
| Repair Kit | 468267-0010 (468103-0000, 3545824)(1101678750) |
| Turbine Housing (water-cooled) | 409339-0201 (23504212, 141-2519) |
| Compressor Cover | 446608-0093 |
| Turbine Housing AR | 1.03 |
| Gasket (turbine inlet) | 409038-0001 (1215736, 210835-0000, 9749, 7M7273)(Inox Steel) |
| Gasket (oil outlet) | 210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) |

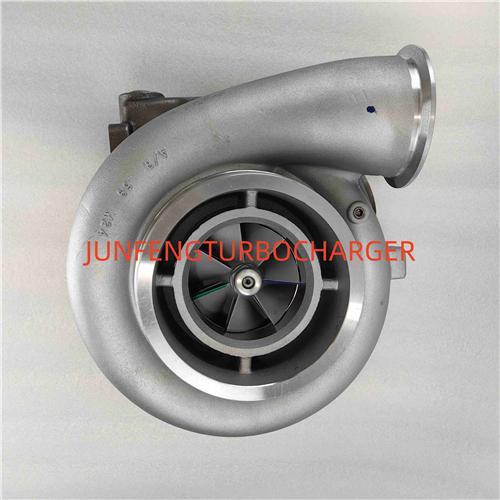

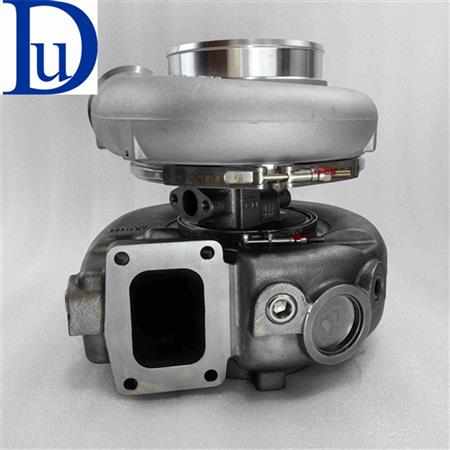

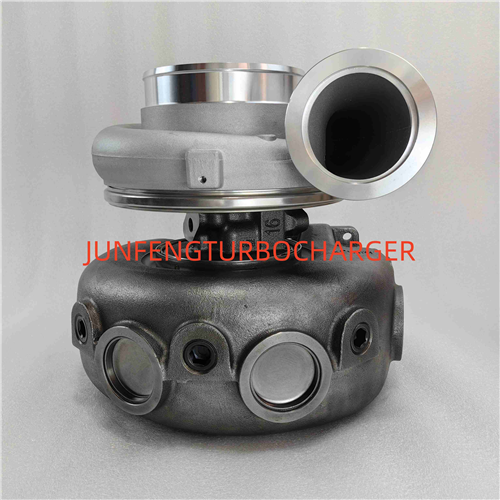

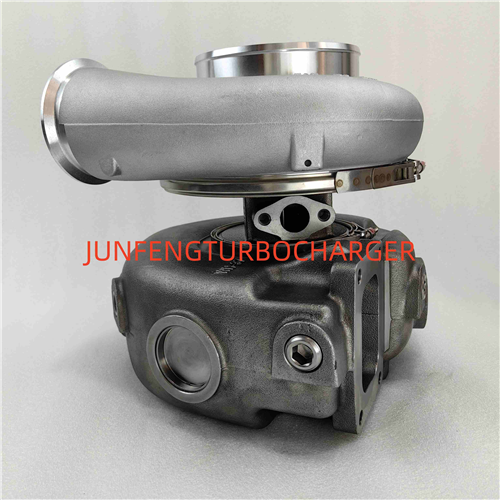

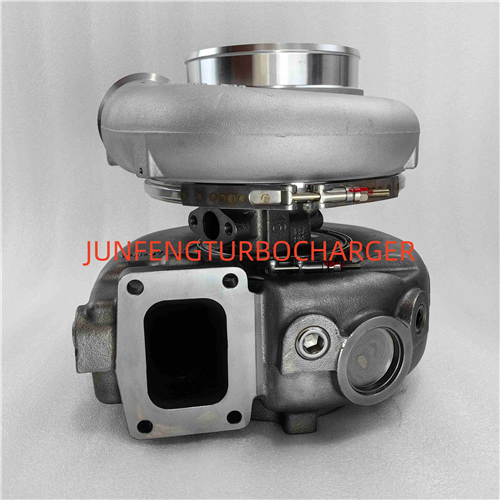

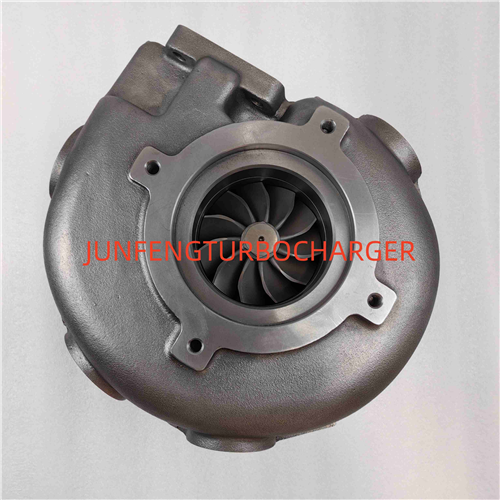

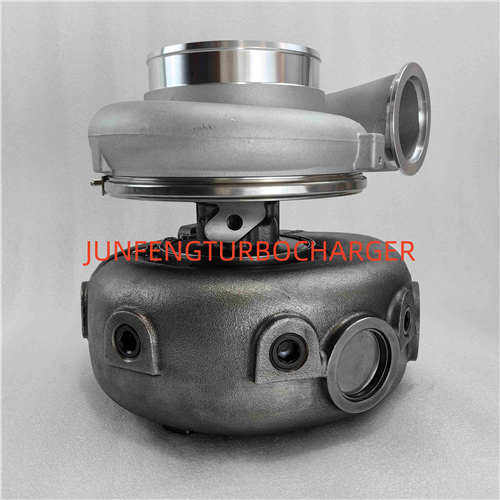

turbocharger fits for Detroit Diesel Marine 6L60 engine
