Product Detail
Product details

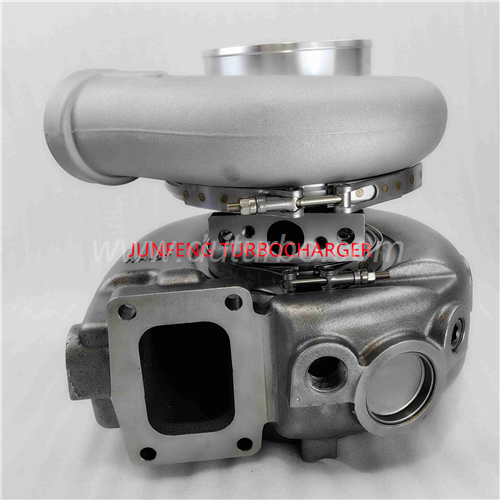

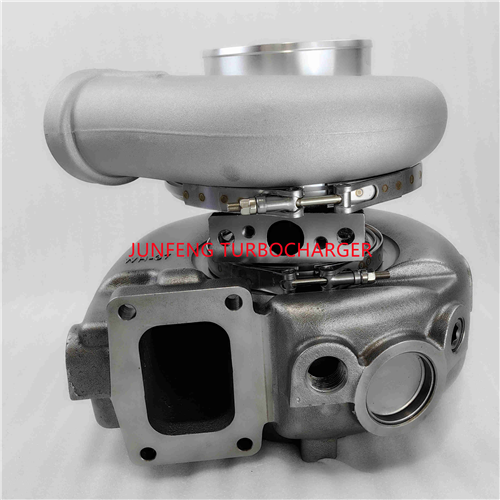

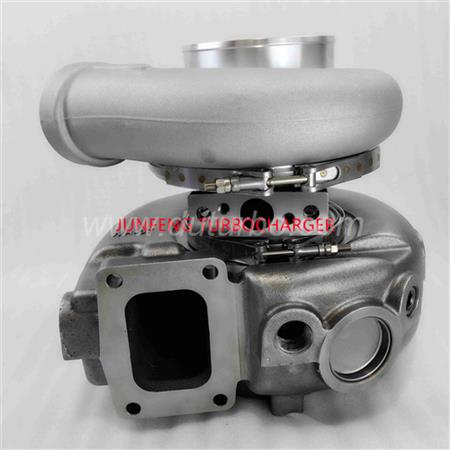

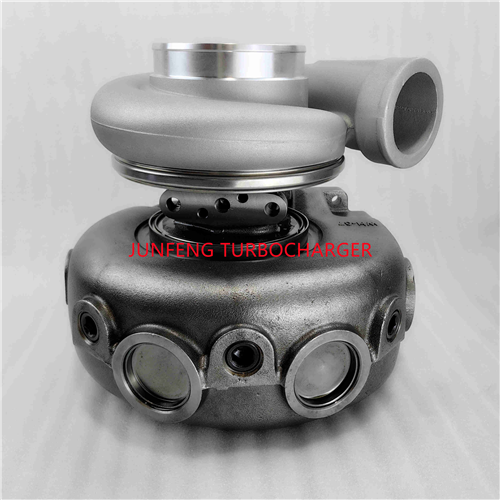

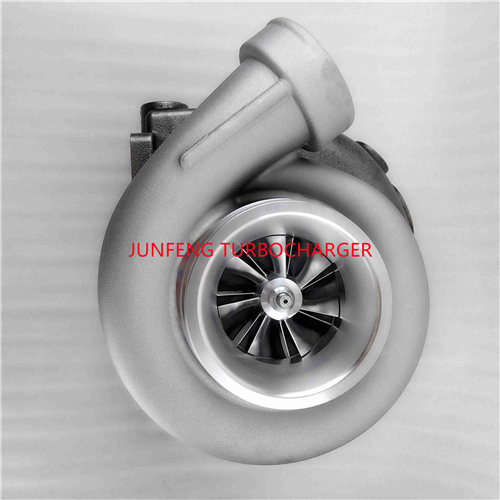

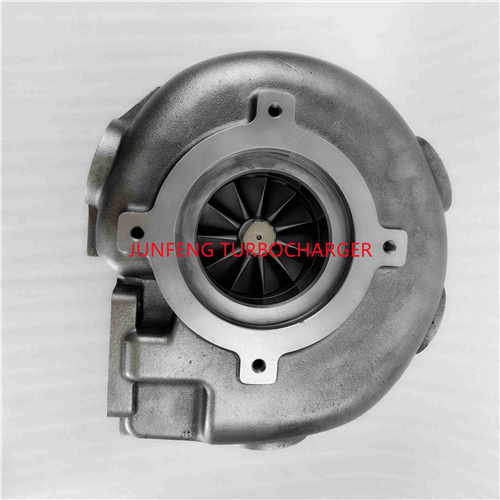

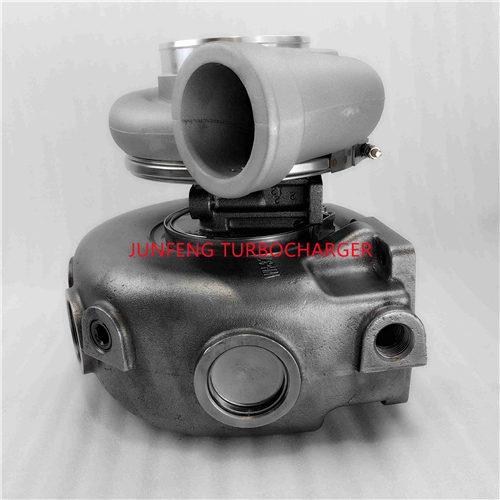

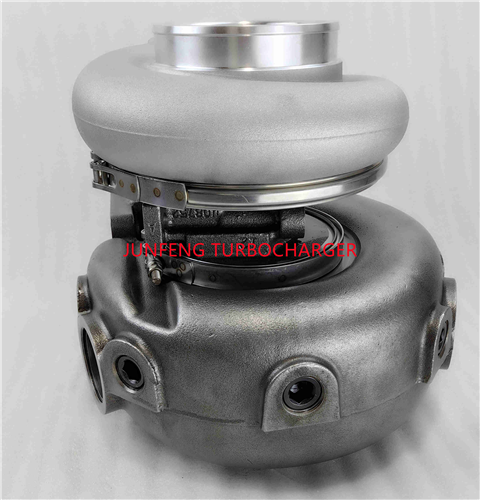

| Part Number | 465689-5001S |
| Previous Version | 465689-0001, 465689-9001, 465689-1 |
| OE number | 23502231, R23502231, 23502231R |
| Description | Marine |
| CHRA | 442032-0018 (442032-9018S)(23503193) |
| Turbo Model | TW7502 |
| Engine | 12V72T, 12V92T, 12V92TA |
| Displacement | 13963/18092 ccm, V12 Cylinders |
| KW | 440/530 HP |
| Fuel | Diesel |
| Angle α (compressor housing) | 138º |
| Angle β (turbine housing) | 340º |
| Bearing Housing | 442028-0001 (8925742, 08925742)(Oil Cooled) |
| Turbine Wheel | 442146-0005 (23514429) |
| Comp. Wheel | 441553-0016 (23514428)(Ind. 65.6 mm, Exd. 91. mm, Trm 52*75, 6+6 Blades, Superback)(1401404412) |
| Back plate | 442027-0004 (23501518, 7C4020) |
| Heat shield Number | 407967-0000 (5149173) |
| Repair Kit | 468267-0000 (23514215, 468211-0000, 3545836, 188002-0000)(1101678752) |
| Turbine Housing (Water Cooled) | 409339-0151 (1W8423, 23503600) |
| Compressor Cover | 441880-0004 (23501527) |
| Turbine Housing AR | 1.23 |
| Gasket (turbine inlet) | 409038-0001 (210835-0000, 9749, 132040, 7M7273) |
| Gasket (turbine outlet) | 210255 (Copper layers) |
| Gasket oil inlet | 210019 (409266-0004, 210019-0000, 201049, 409266-0003) |
| Gasket (oil outlet) | 210018 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) |
| NOTE | Partially restricted |
| Manufacturer | booshiwheel |
Applications
turbocharger for Detroit Diesel Marine with 12V92TA Engine
