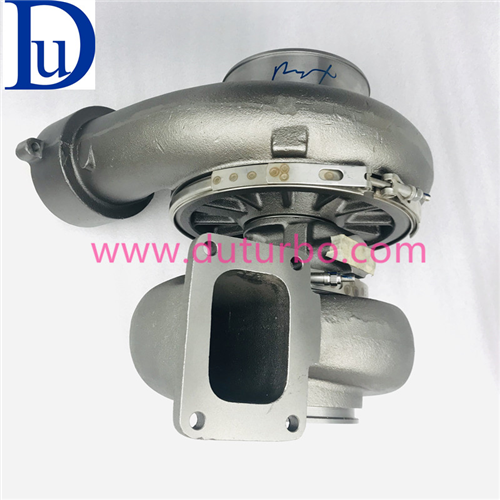

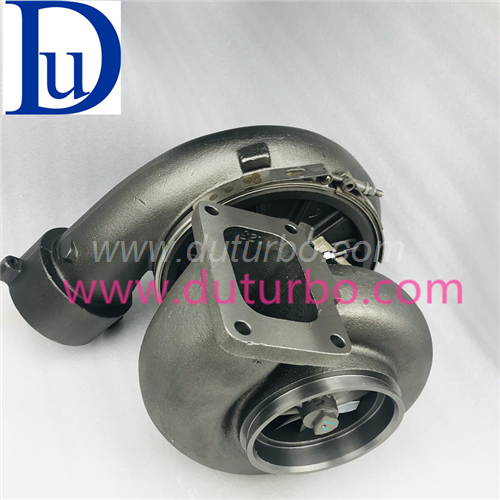

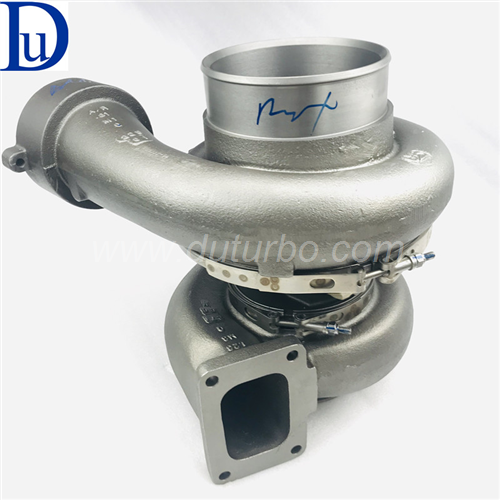

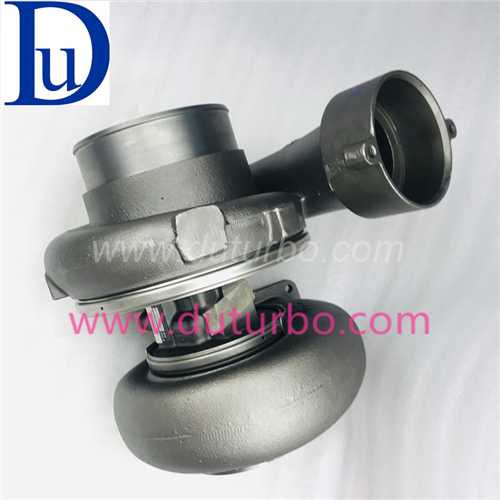

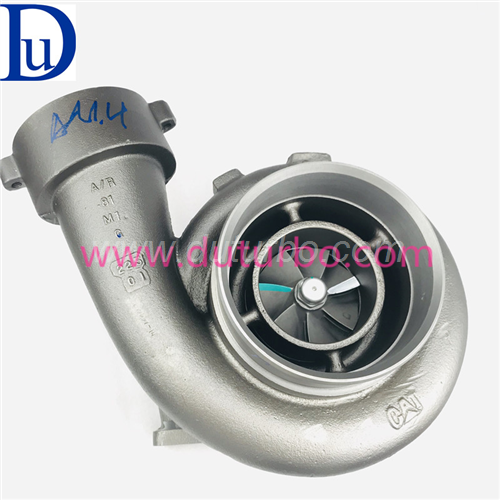

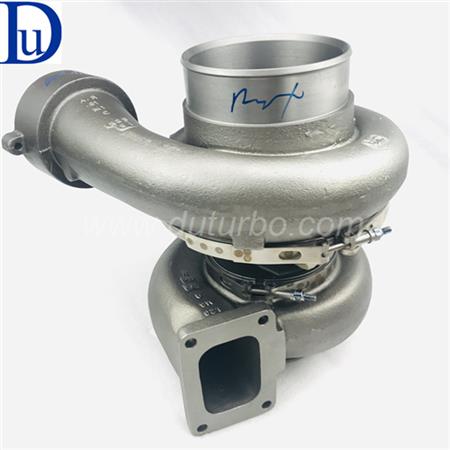

Genuine CAT 3508B 3516B Turbo BTV85 466807-5001S 10R0435 10R-0435 turbocharger for 2001- Caterpillar Generator Set Industrial Engines and Power Units

BTV8501 turbocharger 466807-5001S 10R0435
Turbo Model: BTV8501, BTVA8501 BTV85
Turbo part number: 466807-0001, 466807-9001, 466807-0003, 466807-5004S, 466807-5005S, 466807-1
OE numbers:1180398, 118-0398, 1989914, 10R0435, 207-1351, 2071351, 10R-0435, 2071351
Application:Gen Set, Industrial Engines and Power Units, Generator Set Oil Field Land Rig
CHRA:449073-0019 (449073-5019S, 712371-0028, 1488171, 10R0434, 2032155)
Brand: Caterpillar turbocharger
Displacement 34.5L, 34500 ccm, 8V Cylinders
Gen Set Engine 3516B, 3508B
Generator 3508B, 3516B
Engine Model 3508 DITAJWAC GS, 3516B DITASCAC GS

Product Detail

Genuine Turbo BTV85 466807-0001 10R-0435 turbocharger for Caterpillar Generator Set Industrial Engine 3508B 3516B

Description

Part Number	466807-5001S
Previous Version	466807-0001, 466807-9001, 466807-0003, 466807-5004S, 466807-5005S, 466807-1
OE Number	1180398, 118-0398, 1989914, 10R0435, 207-1351, 2071351, 10R-0435, 2071351
Description	Gen Set, Industrial Engines and Power Units, Generator Set Oil Field Land Rig
CHRA	449073-0019 (449073-5019S, 712371-0028, 1488171, 10R0434, 2032155) $1,910.61
Turbo Model	BTV8501, BTVA8501
Engine Model	3508 DITAJWAC GS, 3516B DITASCAC GS
Engine Manufacturer	Caterpillar
Displacement	34.5L, 34500 ccm, 8V Cylinders
Fuel	Diesel
Power Module	PM3508, PM3516
Gen Set Engine	3516B, 3508B
Generator	3508B, 3516B
S/N	1FZ1-UP, 1HZ1-155, 1HZ1-255, 1FZ1-585, 2JW1-235, 1NW1-133, 4GM303-640, 6HN303-1253, 7RN198-1576, 6PN446-698, 7RN00001-UP, 6HN00001-UP, 6PN00001-UP, 4GM00001-UP, 1NW00001-UP, 5KW00001-UP, 8NW00001-UP, 2JW00001-UP, BPD00001-UP, BLM00001-UP
Bearing Housing	449072-0001 $336.13 NEW IN STOCK
Turbine Wheel	449236-0001 $683.40 NEW IN STOCK
Comp. Wheel	449207-0002 $331.89 NEW IN STOCK
Back plate	448797-0011 (carbon seal) $284.86 NEW IN STOCK
Heat Shield	407657-0009 $76.06 NEW IN STOCK
Repair Kit	468267-0007 $95.33 NEW IN STOCK
Turbine Housing	441122-0118 (1052898) $586.95
Compressor Cover	443892-0030 (709557-0009, 1260911, 2465826, 1933279) $729.96
Turbine Housing AR	1.23
Replaced By	466807-0006
Gasket (turbine inlet)	409038-0001 (1215736, 7M7273) $13.20
Gasket oil inlet	129119 (1900000035)(201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900) $8.40
Gasket (oil outlet)	129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025)

Aplications

2001- Caterpillar Generator Set Industrial Engines and Power Units with 3508B, 3516B Engine

Quantity(Sets)	1 - 10	>10
Est. Time(days)	15	To be negotiated
