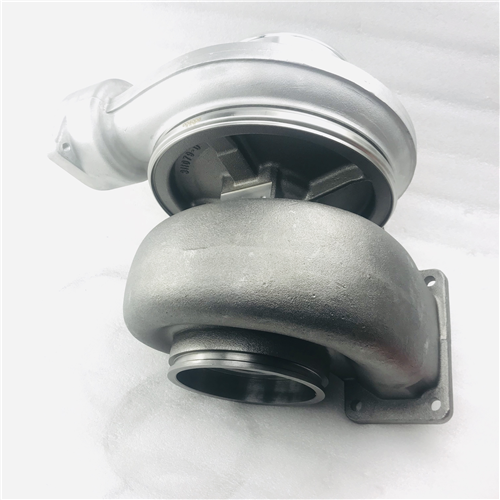

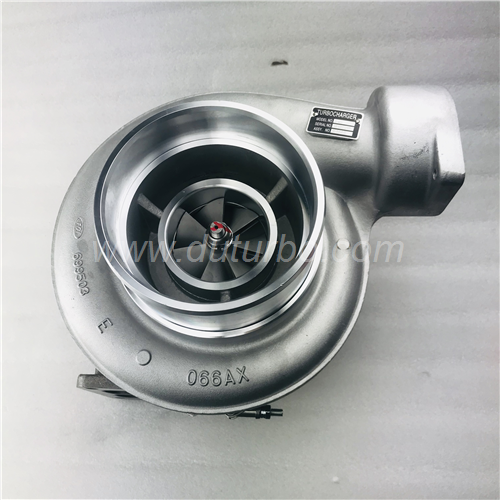

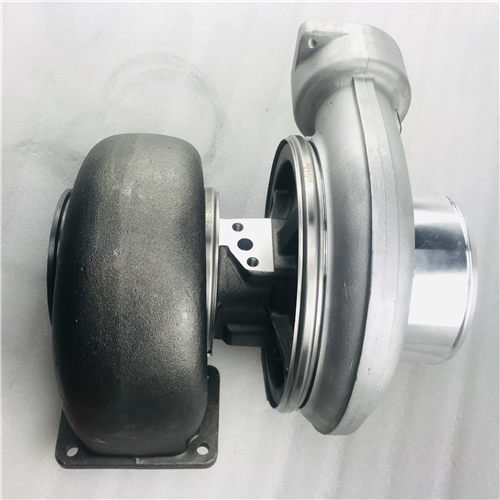

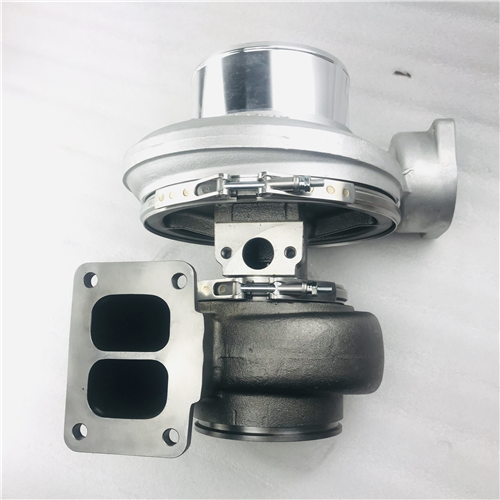

S4D turbo 168665 130-5469 1305469 0R7075 for 1995-10 Caterpillar Industrial, Truck (Off-Highway) with 3406C Engine

Part Number

168665

OE number

130-5469, 1305469, 0R7075

Description

Industrial Engine, Truck (Off-Highway)

Turbo Model

S4DS-114H55DAXM/1.58VT97H1

CHRA

199763 (169411, 1411468, 0R6606, 6I0745, 178245)(Use 178170)

Engine Model

3406C (773 & 775)

kW

313/425 HP

Rpm

1900

Fuel

Diesel

Displacement

14.6L, 3406 ccm

Cold Planer

PM-465

Machine Engine

3406, 3406B, 3406C

Generator Set Engine

3406B, 3406C, SR4, 3406C

Generator

SR4

Industrial Engine

3406B, 3406C, 3412E, HT400

Road Reclaimer

RM-350, RM-350B, RM-350B, SM-350

S/N

41Z257-UP, 41Z4926-UP, 41Z21009-UP, 41Z2438-99999, 1LS1-UP, 4ZR1-UP, 8FS1-1026, 6TB18056-UP

Bearing Housing

199765 (Oil Cooled)

Turbine Wheel

199796 (6I1193)

Comp. Wheel

169410 (1411469)(Ind. 81.3 mm, Exd. 109.2 mm, 6+6 Blades, Superback)

Insert plate

197651 (142066, 51135, 5S4556, 49162-22500, 52321523000, 52321523001, 143044-0000)(1250403300)

Repair Kit

318408 (318406, 166047)(1252419755)

Turbine Housing

168666 (1305470)

Compressor Cover

199503 (1017769)

Turbine Housing AR

1.58

Gasket oil inlet

409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)

Gasket (oil outlet)

210018 (3519763, 129120, 210018-0000,
