  3. Yanmar Marine 4TNE84T RHB31GW Turbo VA170017 MYDI 129611-18040 129579-18000 MY69 129579-18010

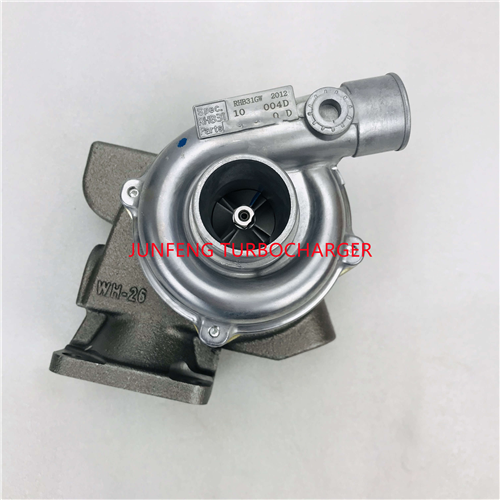

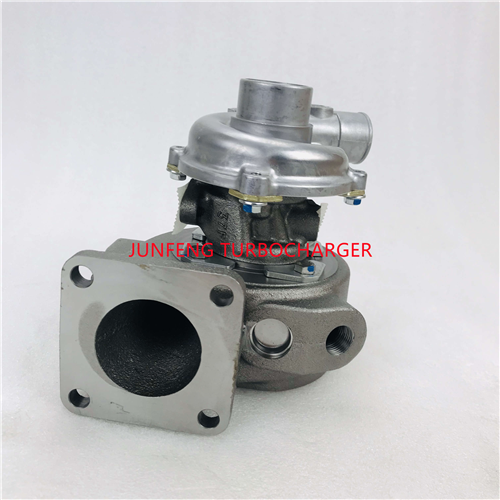

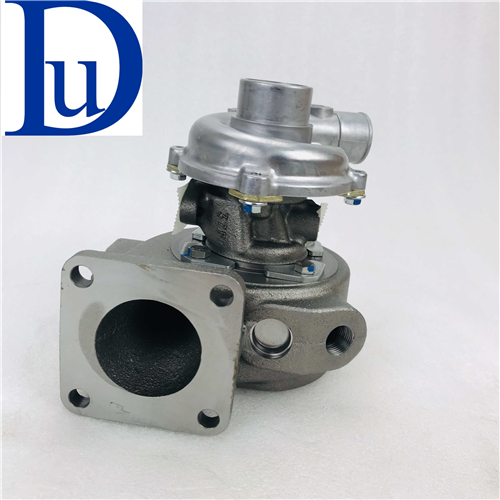

  • Yanmar Marine RHB31GW Turbo VB110073 MY69 129579-18010

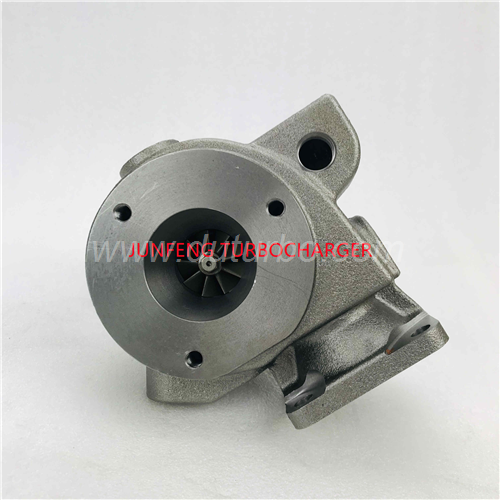

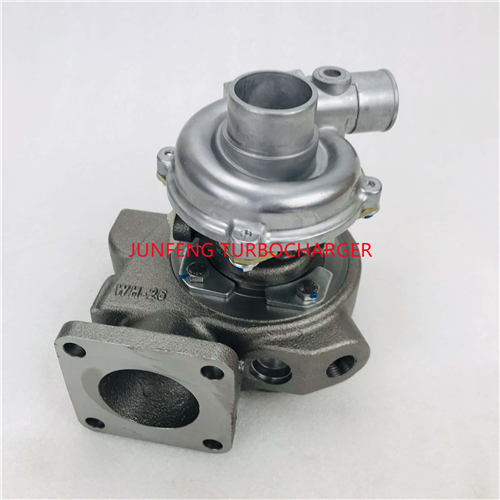

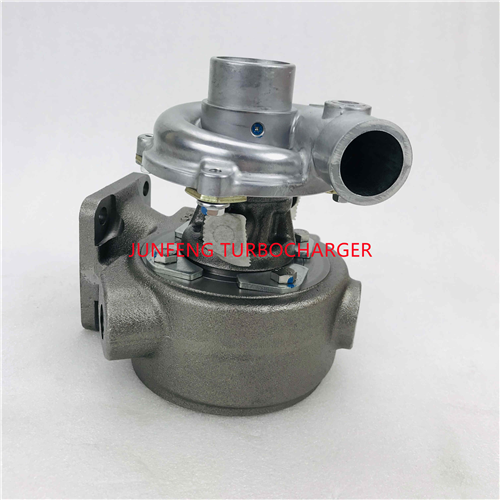

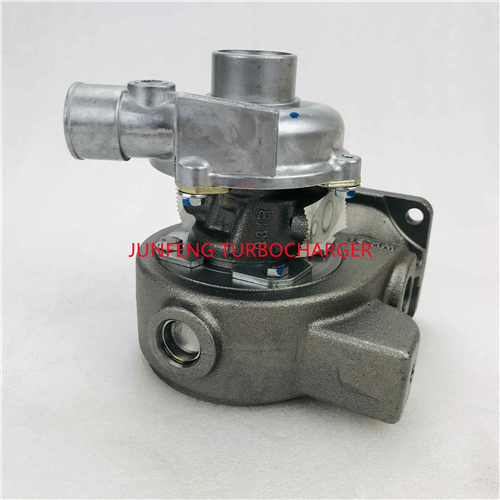

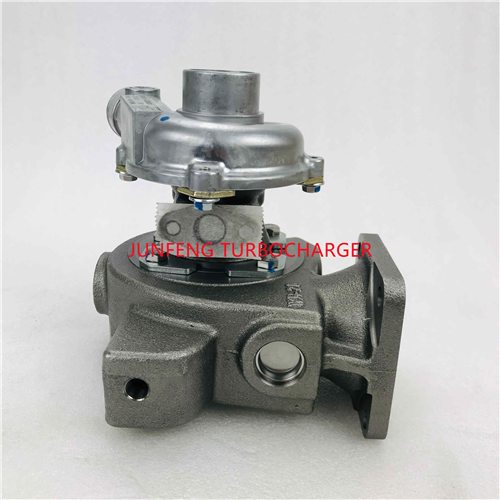

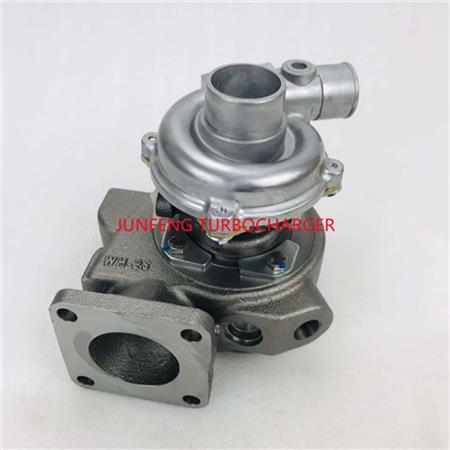

Yanmar Marine 4TNE84T RHB31GW Turbo VA170017 MYDI 129611-18040 129579-18000 MY69 129579-18010

  • MYDI 129611-18040
  • Model : RHB31GW RHB31GW-55001P12NWBRS2616D
  • Part Number VA170017 V170017 VB170017, VC170017, VD170017
  • OE Number 12961118040, 129611-18040 129611 18040 , B32CND-S0017B, B32CND-S0017G, B32CNDS0017B, B32CNDS0017G
  • V-Spec. ; MY69 MYDI MY65 MY63 MYER
  • Previous versions VA110073, VC110073 VD110073 VB110073
  • OE number 2 12957918010 129579-18010, B31CND-S0073B, B31CNDS0073B, B31CND-S0073BN
  • Previous versions 2 VA110017 VB110017, VC110017, VD110017
  • OE number B31CND-S0017B, B31CND-S0017G B31CNDS0017B B31CNDS0017G 3T510, 3T-510, 12957918000, 129579-18000 1-29579-18000
  • Engine 4JHL-HT 4TNE84T 4JHLHTE-K2
  • Displacement 4 Cylinders

Product Detail

Product Details



Part Number VA170017
Previous Part Number V170017, VB170017, VC170017, VD170017
OE Number 12961118040, 129611-18040, 129611 18040 , B32CND-S0017B, B32CND-S0017G, B32CNDS0017B, B32CNDS0017G
V-SPEC MYDI
Description Marine
Turbo Model RHB31GW-55001P12NWBRS2616D
CHRA N/A
BAUER T914080
BU 131230
HOET 4103226
Model Engine 4TNE84T
Displacement 1.95L, 1950 ccm, 4 Cylinders
Fuel Diesel
Angle α (compressor housing) 90°
Angle β (turbine housing) 338°
Bearing Housing (Oil Cooled)
Repair Kit NB139837 (NB139838, NB139922)(2445058, 2445147) $123.00 NEW IN STOCK
Turbine Housing Water Cooled
Turbine Housing AR 12
Gasket Kit 2505395 (1900100289)
Gasket (turbine inlet) 210826 (2445288, 2445280, 129477-18100)(Inox Steel)
Gasket (turbine outlet) 210827 (2445274 , 2445185,129322-18100)(Inox Steel)
Gasket (oil inlet (1203715, 1204055)(Paper)



Applications

1990-01 turbocharger for Yanmar Marine 4TNE84T

turbocharger for Yanmar Marine with 4JHL-HT Engine
