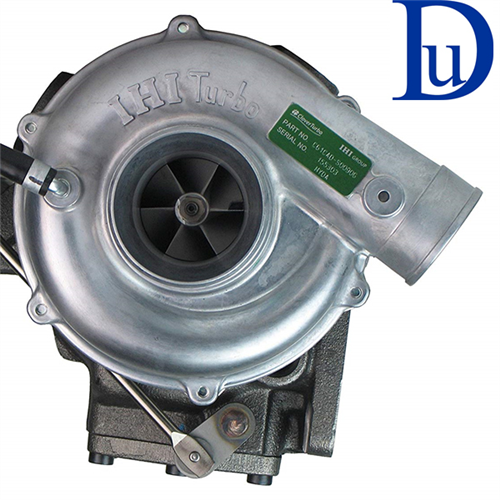

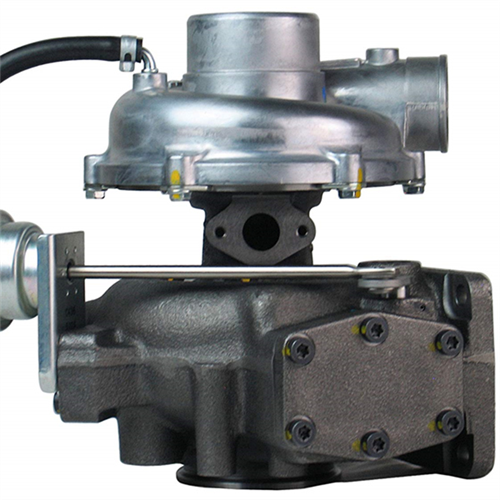

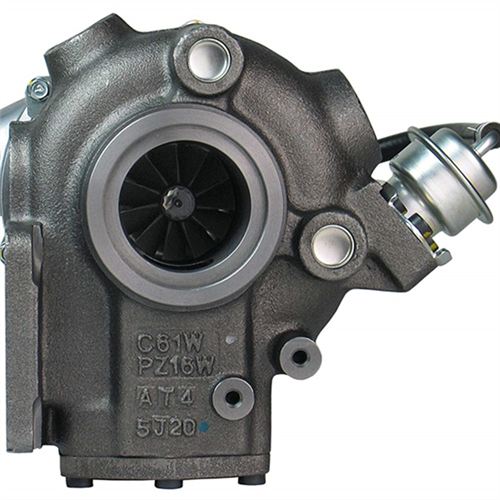

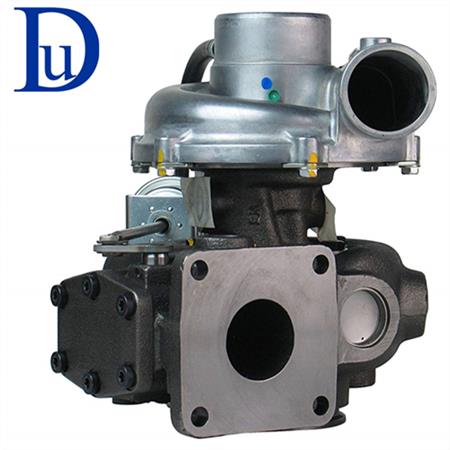

RHC61W Turbo VD240090 MYDA 119175-18031 turbocharger for Yanmar Marine with 4LHA-STE Engine
Product Details
| Part Number | VD240090 |
| Previous Part Number | VA240090, VB240090, VC240090 |
| OE number | 119175-18031, 119175-18030, 11917518031, 11917518030, C61CAD-S0090B, C61CAD-S0090G, C61CADS0090B, C61CADS0090G |
| Description | Marine |
| CHRA | NZ854798 (NZ870535) $448.00 NEW IN STOCK, MADE IN USA |
| V-SPEC. | MYDA |
| Turbo Model | RHC61W-1063P16NWBRLL4715CCZ |
| Engine | 4LHA-STE, STE-4LHA, 4LHA-STZE-YA |
| Displacement | 3.5L, 3456 ccm |
| Power | 230 HP |
| Fuel | Diesel |
| Angle α (compressor housing) | 70º |
| Angle β (turbine housing) | 182º |
| Bearing Housing | NH163376 (NH163331)(831211260)(831211090)(Oil Cooled) $143.52 NEW IN STOCK |
| Turbine Wheel | NH261301D (171012)(Ind. 62. mm, Exd. 54.71 mm, 11 Blades) $106.80 NEW IN STOCK |
| Comp. Wheel | NH265520 (170268)(Ind. 46.78 mm, Exd. 69. mm, 6+6 Blades, Superback) $125.90 NEW IN STOCK |
| Back plate | NN193012 (171124) $18.55 NEW IN STOCK |
| Heat shield Number | NH163329 (171056) $14.82 NEW IN STOCK |
| Repair Kit | NH169843 (509T-538)(171079) $129.00 NEW IN STOCK |
| Turbine Housing (Water-Cooled) | NH167595 |
| Compressor Cover | NH164718 |
| Turbine Housing AR | 16 |
| Actuator | NH961640 (NH961641) |
| Installation Kit | $79.00 |
| Gasket (turbine Outlet) | 128300-13230 |
| Gasket (oil outlet) | 210161 (128300-1323)(Gasket paper) $2.00 |
| Manufacturer | IHI |
Application
1998-01 Yanmar Marine with 4LHA-STE Engine
