Product Detail
Product Description
| Part Number | VC240101 |
| Previous Part Number | VA240101, VB240101, VD240101 |
| OE number | 119173-18040, 119173-18041, 11917318040, 11917318041, C61CND-S0101B, C61CND-S0101G, C61CNDS0101B, C61CNDS0101G |
| V-Spec. | MYDH |
| Description | Marine |
| CHRA | NZ854798 (NZ870535) |
| Turbo Model | RHC61W-1036P16NWBRLL4715CC |
| Engine | 4LHA-DTZE, 4LHA-DTE, 4LHA-DTP, 4LHA-DT(Z)E(P) |
| Displacement | 3.5L, 3456 ccm, 4 Cylinder |
| Power | 140/190/200 HP |
| Fuel | Diesel |
| Angle α (compressor housing) | 70° |
| Angle β (turbine housing) | 100° |
| Bearing Housing | NH163376 (NH163331)(831211260)(831211090)(Oil Cooled) |
| Turbine Wheel | NH261301D (171012)(Ind. 62. mm, Exd. 54.71 mm, 11 Blades) |
| Comp. Wheel | NH265520 (170268)(Ind. 46.78 mm, Exd. 69. mm, 6+6 Blades, Superback) |
| Back plate | NN193012 (171124) |
| Heat shield Number | NH163329 (171056) |
| Repair Kit | NH169843 (509T-538)(171079) |
| Compressor Cover | NH264962 |
| Turbine Housing AR | 16 |
| Actuator | NH961640 (NH961641) |
| Gasket (turbine Outlet) | 128300-13230 |
| Gasket (oil outlet) | 210161 (128300-1323, Gasket paper) |

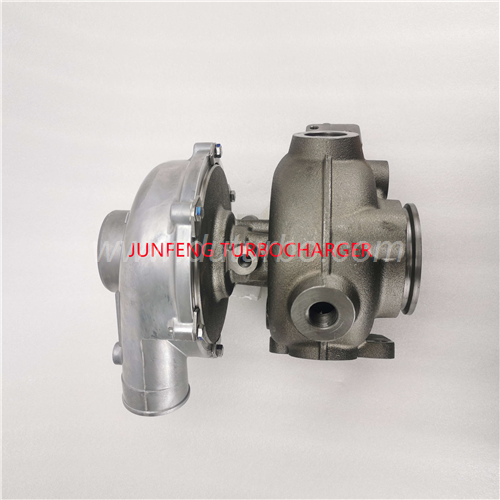

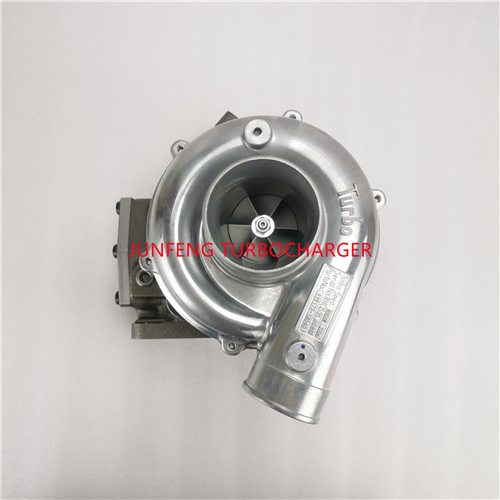

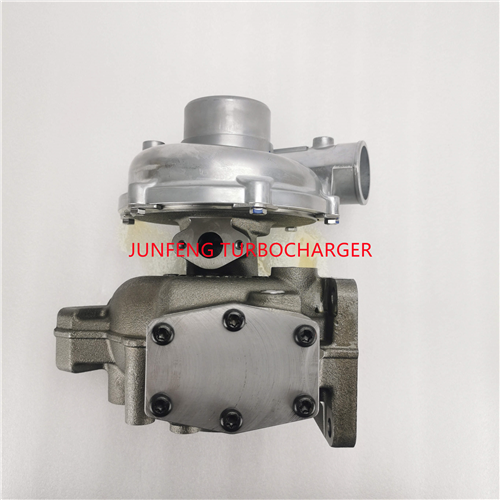

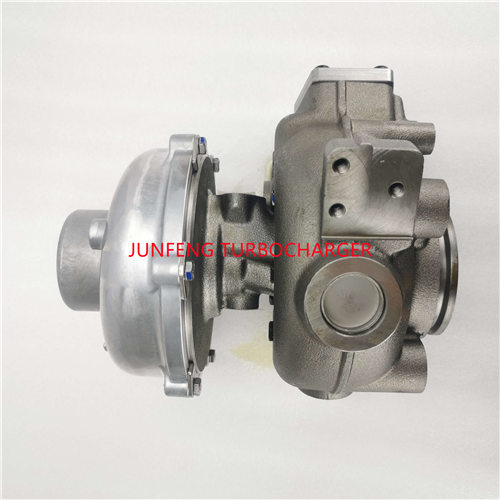

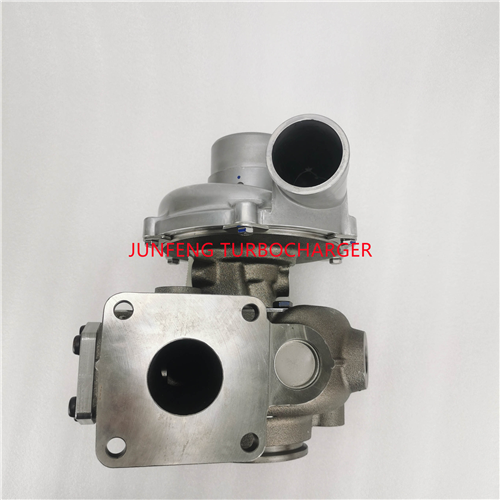

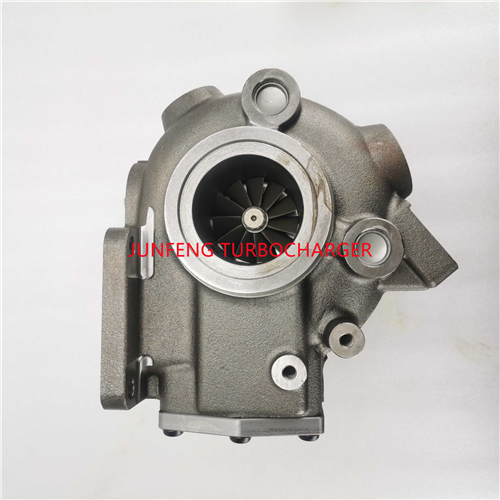

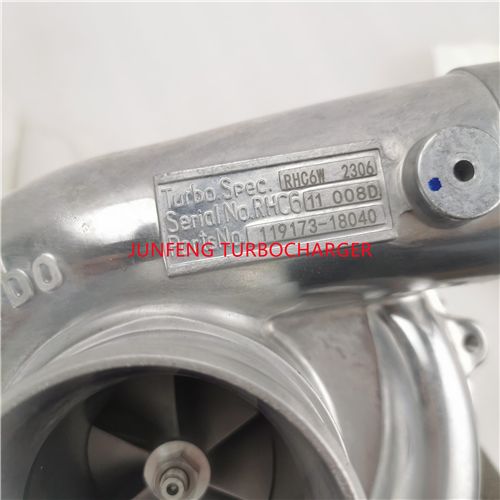

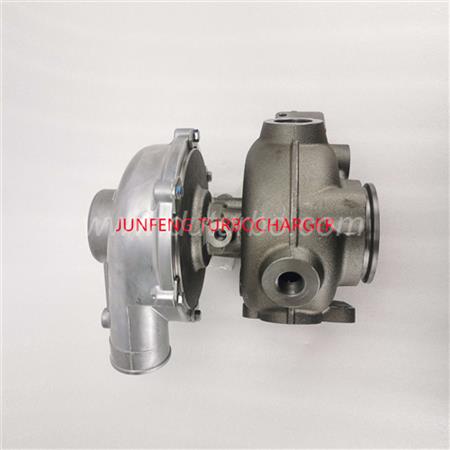

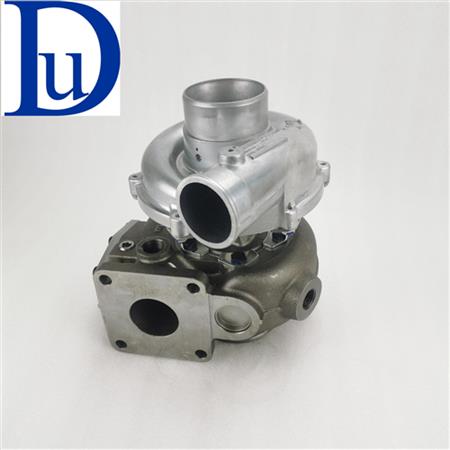

2000-01 turbocharger for Yanmar Marine with 4LHA-DTE Engine
