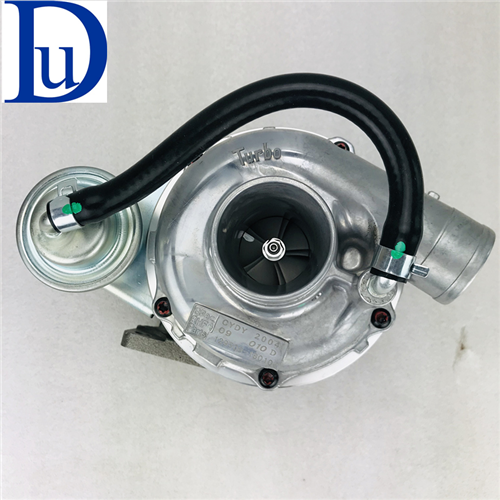

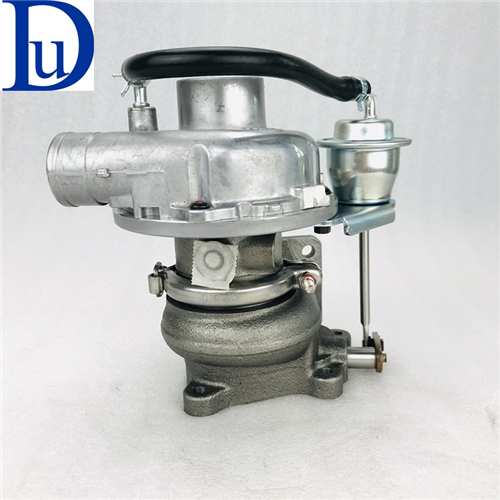

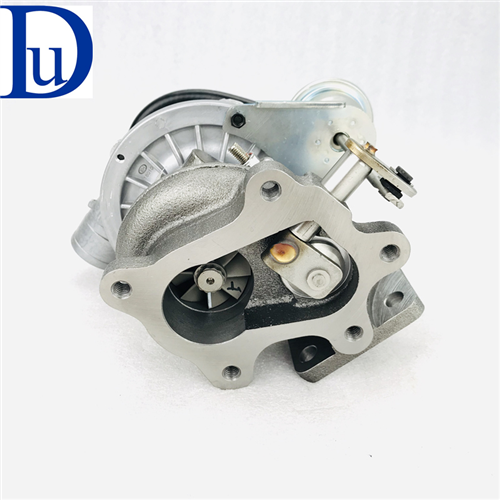

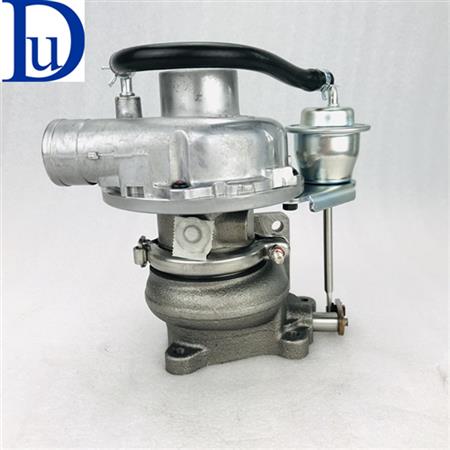

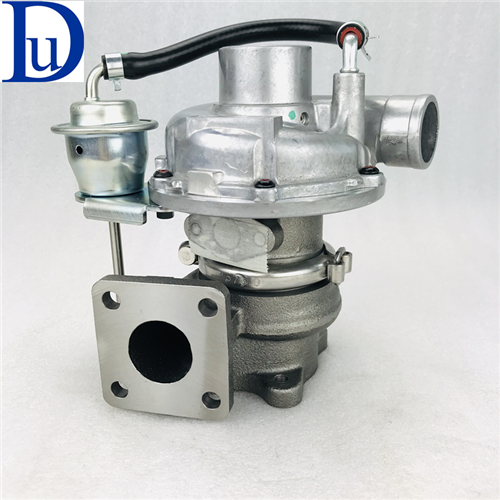

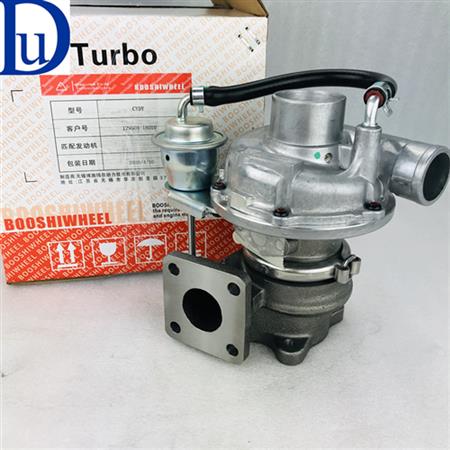

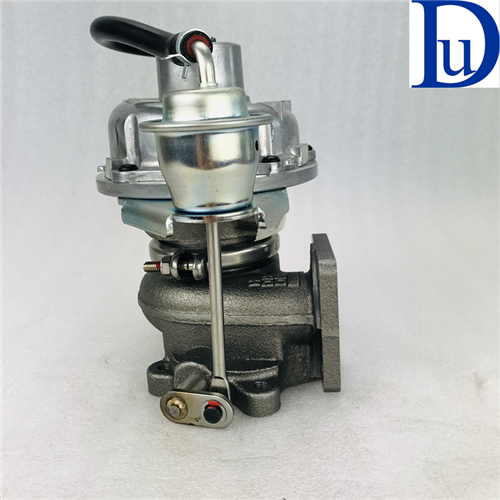

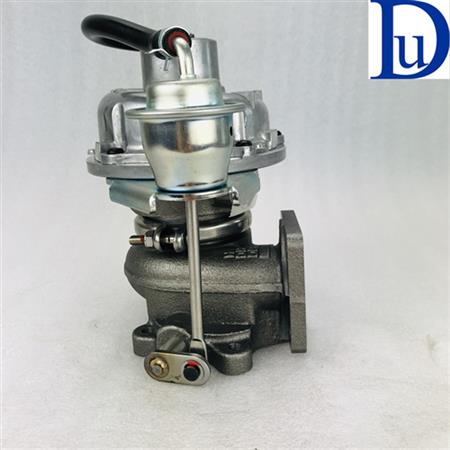

RHF4 CYDY VA420078 129508-18010 129508 18010 12950818010 Turbocharger For Yanmar Earth Moving 4TNV84T 1.5L Engine
Product Description
| Part Number | VA420078 |
| OE number | 129508-18010, 12950818010, 12950-818010, 12950818020, 12950-818020 |
| V-Spec. | CYDY, CYDY 1311 |
| Description | Earth Moving, Gen Set, Marine |
| CHRA | N/A |
| Turbo Model | RHF4-64006P12NHBRL323CAZ |
| Engine Model | 4TNV84T |
| National Stock Number (NSN) | 01-537-9970, 015379970, 2950-01-537-9970, 2950015379970 |
| Displacement | 1.469L, 14960 ccm, 4 Cylinder, Diesel,Oil Cooled |
| KW | 39 HP |
| Angle α (compressor housing) | 190º |
| Angle β (turbine housing) | 55º |
| Bearing Housing | (Oil Cooled) |
| Turbine Wheel | (Ind. 37.7 mm, Exd. 44.42 mm, 8 Blades) |
| Comp. Wheel | (Ind. 28.65 mm, Exd. 46. mm, 5+5 Blades, Flatback) |
| Turbine Housing AR | 12 |
| Gasket | 129508-18090, 129508-18080 |
Application
Yanmar Earth Moving with 4TNV84T Engine
