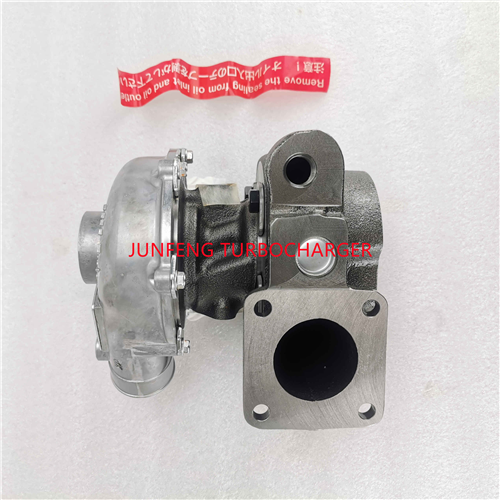

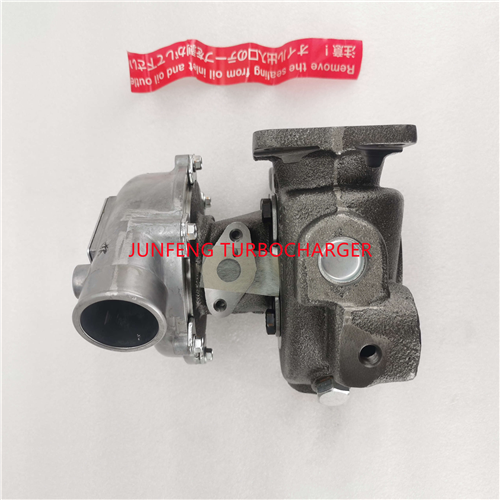

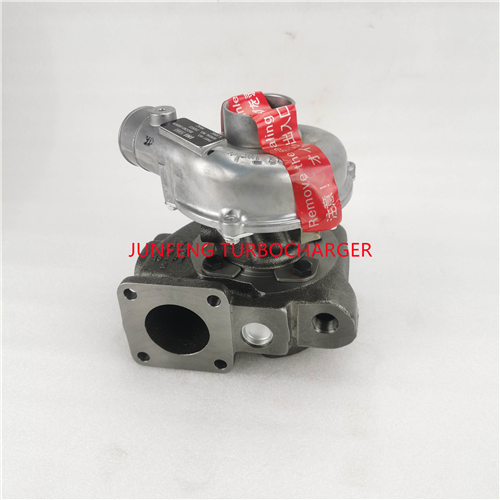

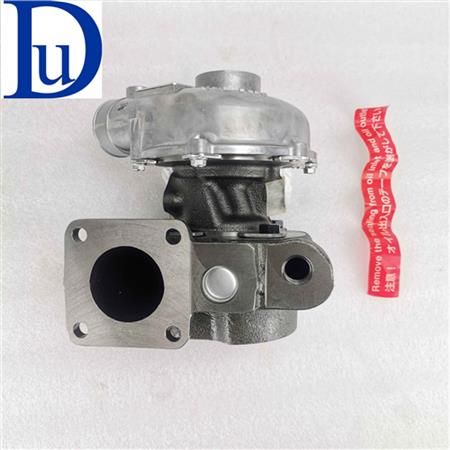

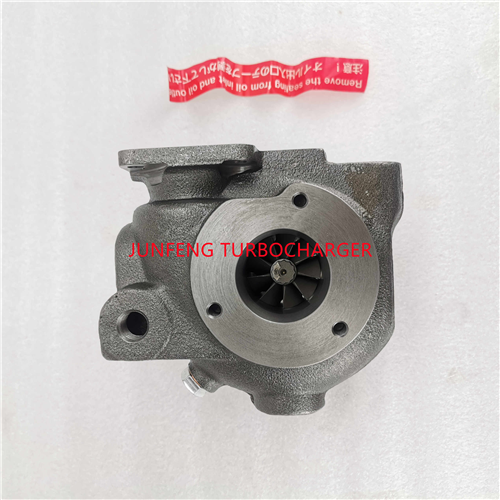

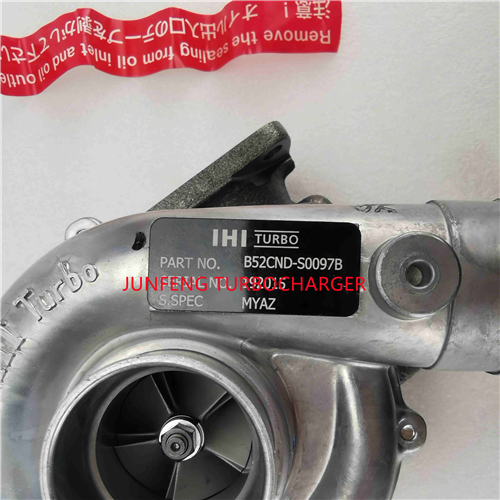

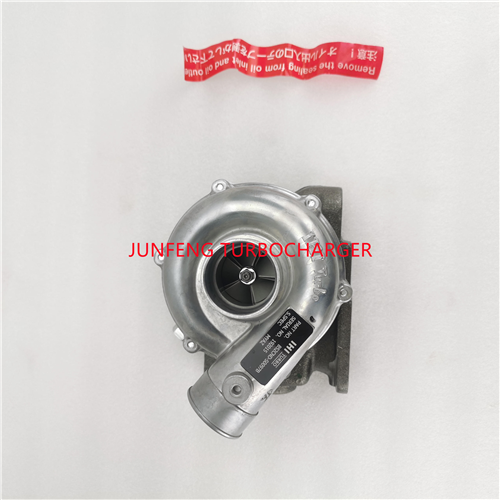

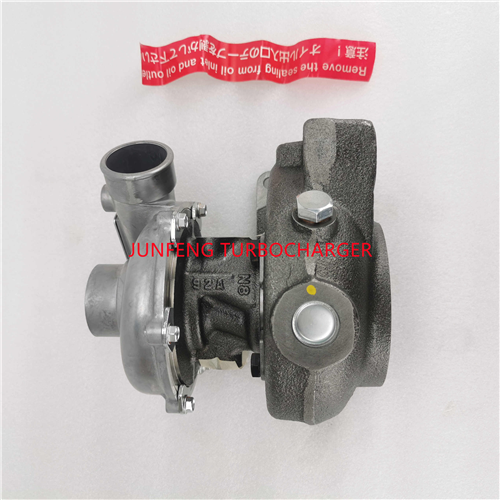

IHI Yanmar Marine 4JH2-DTE 4JH2-UTE Engine TURBO RHB52W VA180097 MYAZ 129574-18000

MYAZ 129574-18000
Model : RHB52W RHB52W-52002HP15NWBRL3611CE
part number : 12957418000, 129574-18000, 1-29574-18000, B52CND-S0097B, B52CNDS0097B
V-SPEC. MYAZ
Year 1991-99
Previous Version V-180097, V180097, VB180097, VC180097, VD180097
Engine 4JH2-DTE, 4JH2UTE
Power: 100 HP
Fuel Diesel
OE number VA180097
Applications 1991-99 Yanmar Marine with 4JH2-DTE, 4JH2-UTE Engine

Product Detail

Product Description

Part Number	VA180097
Previous Version	V-180097, V180097, VB180097, VC180097, VD180097
Year	1991-99
OE number	12957418000, 129574-18000, 1-29574-18000, B52CND-S0097B, B52CNDS0097B
V-SPEC.	MYAZ
Description	Marine
CHRA	NZ853146 (B51CND-S0085C, B51CNDS0085C)
Turbo Model	RHB52W-52002HP15NWBRL3611CE
Engine	4JH2-DTE, 4JH2UTE
Power:	100 HP
Fuel	Diesel
Angle α (compressor housing)	90°
Angle β (turbine housing)	218°
Bearing Housing	NN133382 (053T-520, NN133378, NN133362)(Oil Cooled)(1900011187) $92.50 NEW IN STOCK
Turbine Wheel	NN131502 (NN161312, NN131614, 223T-515)(Ind. 52.47 mm, Exd. 43.05 mm, Trm 8, 9 Blades)(1100016018)
Comp. Wheel	NN136613 (Ind. 36. mm, Exd. 52.13 mm, 6+6 Blades)
Back plate	NN133021 (NN133001) (64T-002)
Heat shield Number	NN137055 (38T-013)
Repair Kit	NN139922 (NN139921)(2445041, 2445092, 509T-545)
Turbine Housing (Water-Cooled)	NN139604
Compressor Cover	NN133911
Turbine Housing AR	15
Gasket (turbine Inlet)	210276 (2445051) (Inox Steel)
Gasket (turbine outlet)	210828 (Inox Steel)
Gasket (oil outlet)	210636 (2445067)(Paper)
Gasket Kit	215334

Applications

1991-99 turbocharger for Yanmar Marine with 4JH2-DTE, 4JH2-UTE Engine
