Product Detail

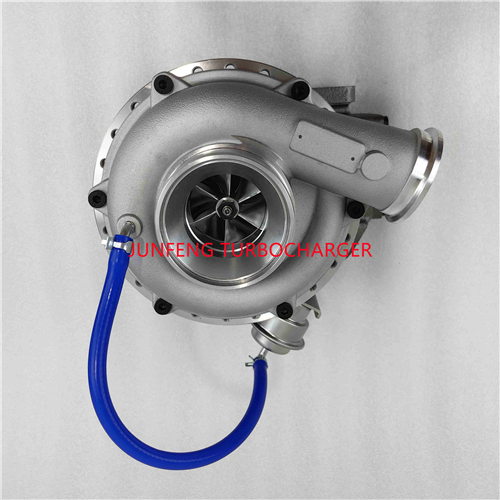

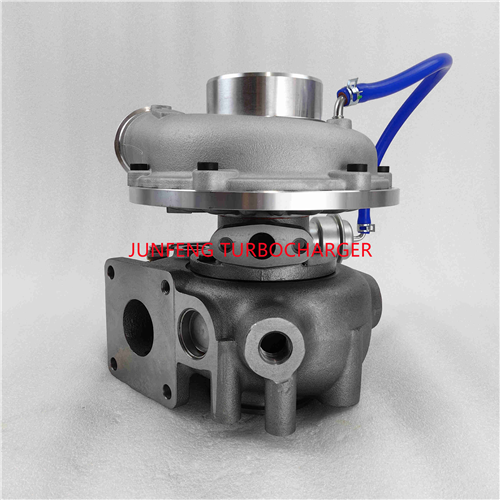

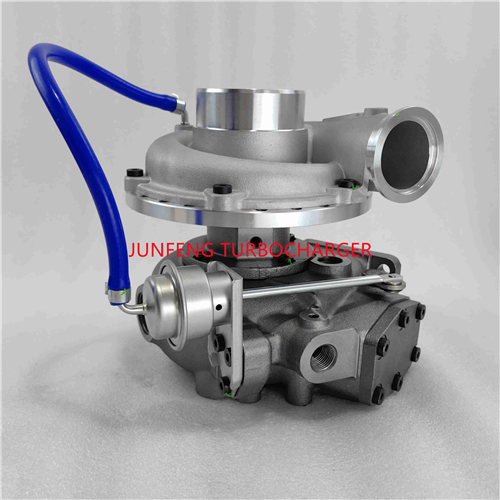

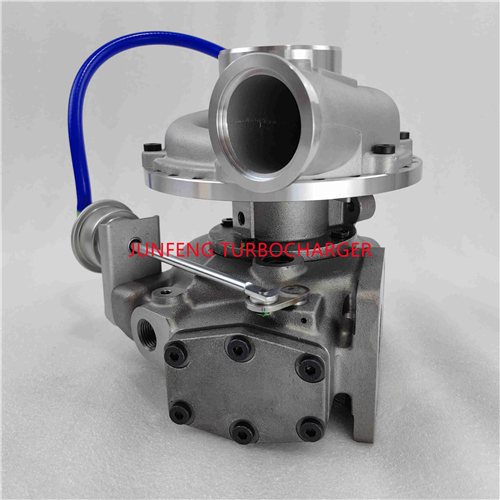

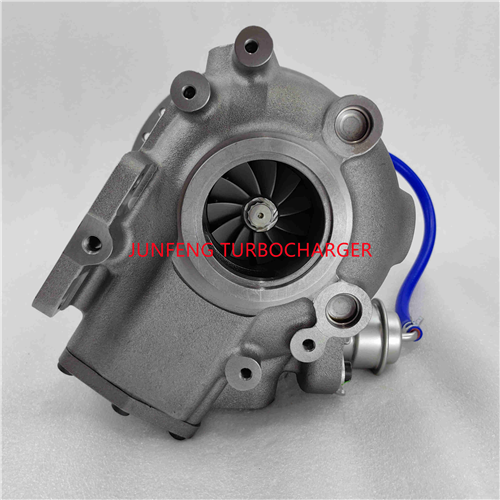

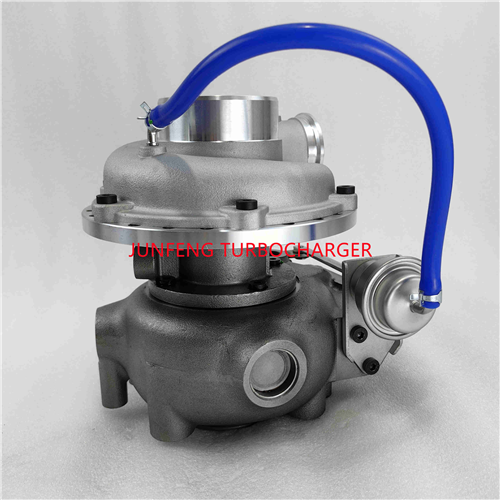

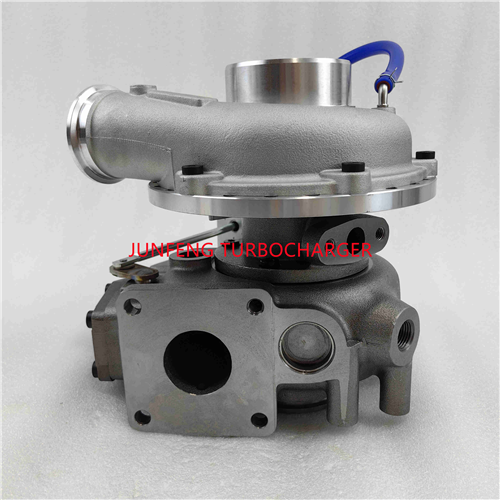

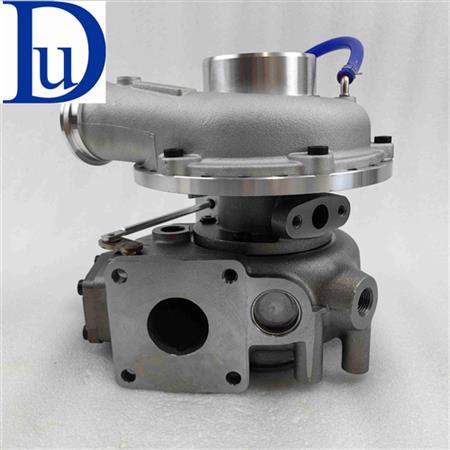

Turbo Product Description
| Part Number | VC720022 |
| Previous versions | VA720022, VB720022, VD720022 |
| OE number | 119773-18011, 11977318011, 119773-18010, 11977318010, 1-19773-18011, 1-19773-18010, E61CAD-S0022B, E61CADS0022B |
| V-SEPC. | MYAX |
| Description | Marine |
| CHRA | VAX10016 (E61CAD-S0033C, E61CADS0033C) |
| Turbo Model | RHE62W-118003P20NWBRB584CCZ |
| Engine | 6LP-DTE, 6LP-DTZE, 6LPA-DTEP, 6LPA-DTZEP |
| Displacement | 41.66L, 4166 ccm, 6 Cylinders |
| KW | 254 HP |
| Fuel | Diesel |
| Angle α (compressor housing) | 225° |
| Angle β (turbine housing) | 340° |
| Bearing Housing | NH362709 (Oil Cooled) |
| Turbine Wheel | NH361206 (Ind. 64.2 mm, Exd. 69.5 mm, 11 Blades) |
| Comp. Wheel | NH364606 (Ind. 56.3 mm, Exd. 75.06 mm, 6+6 Blades, Superback) |
| Back plate | NH362112 |
| Heat shield Number | NH365303 (NB137143, NN137055)(38T-013)(129403-18720) |
| Repair Kit | NH369801 (NH369802)(2445200) |
| Bearing | NH363001 |
| Thrust bearing | NH363051 |
| Piston Ring (turbine side) | NH261604 (070T-018) |
| Piston Ring (compressor side) | NH261605 (070T-016, 115033-0000) |
| Turbine Housing (Water-Cooled) | NH365419 |
| Compressor Cover | NH364405 |
| Turbine Housing AR | 20 |
| Actuator | NH961260 (NH961180) |
| Gasket(turbine inlet) | 119773-18250 |
| Gasket | 23414-100000 |
| Gasket | 23414-080012 |
| Gasket (turbine Outlet) | 128300-13230 |
| Silencer | 119773-18850 |
| Plug PF1/8 | 23893-010002 |
Application
1998- TURBOCHARGER FOR Yanmar Marine with 6LP-DTE, 6LP-DTZE Engine
