  3. IHI Yanmar Marine 6LY2-STE Engine Turbo MYAW RHC7W 119595-18011 VA290033 11957518010
  • Yanmar Marine engine turbo RHC7W MYAW 119575-18011 119575-18010

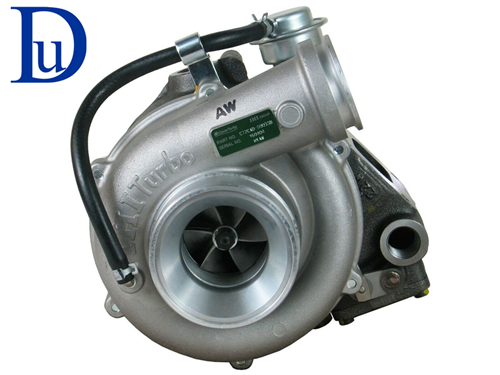

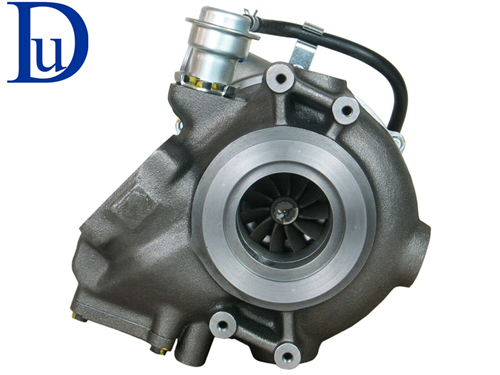

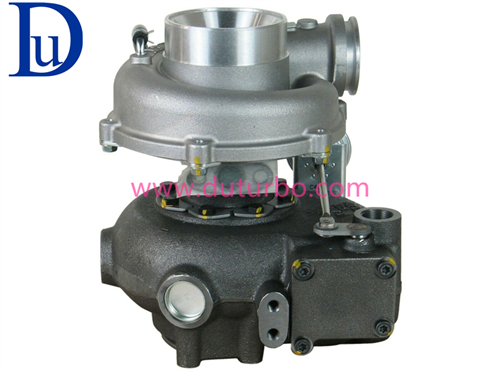

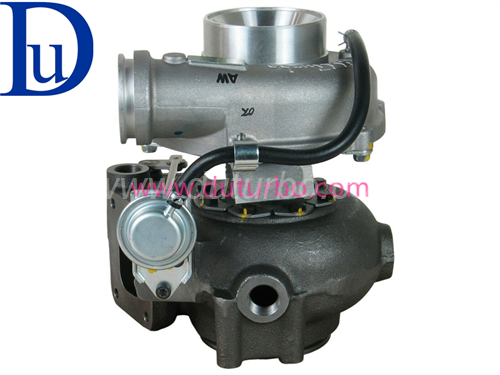

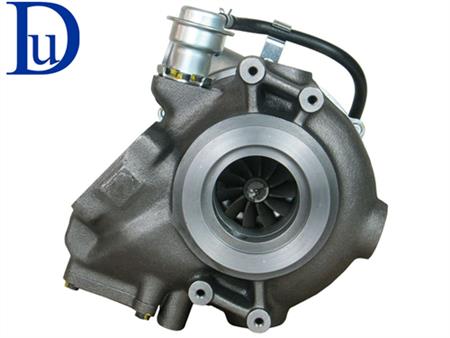

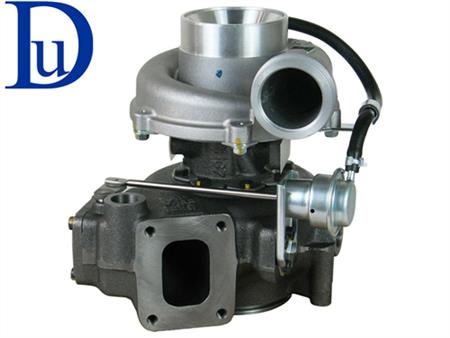

IHI Yanmar Marine 6LY2-STE Engine Turbo MYAW RHC7W 119595-18011 VA290033 11957518010

  • RHC7W 119595-18011
  • CHRA (NZ870535)(C72CAD-S0055C, C72CADS0055C)
  • OE number C72CAD-S0033B, C72CADS0033B 7T-551, 119575-18011, 119575-18010,
  • Part Number VB290033 VA290033 VC290033, VD290033
  • V-Spec. MYAW
  • Turbo Model RHC7W-12307P22NWBRB6235SUCZ
  • Displacement 5813 ccm, 6L Cylinders
  • Power 420/440 HP
  • Fuel Diesel
  • NSN 2950-01-561-1407
  • MOQ: 1PCS

Product Detail

MYAW RHC7W 11959518011 VC290033 119575-18010 IHI turbo for Yanmar Marine 6LY2-STE Engine

Product Description



Part Number VB290033
Previous versions VA290033, VC290033, VD290033
V-Spec. MYAW
OE number 7T-551, 119575-18011, 119575-18010, 11957518011, 11957518010, C72CAD-S0033B, C72CADS0033B, 7T-551, 7T551
Description Marine
CHRA  (NZ870535)(C72CAD-S0055C, C72CADS0055C) $448.00 NEW IN STOCK, MADE IN USA
Turbo Model RHC7W-12307P22NWBRB6235SUCZ
Engine 6LY2-STE
Displacement 5813 ccm, 6L Cylinders
Power 420/440 HP
Fuel Diesel
NSN 2950-01-561-1407
Angle α (compressor housing) 65°
Angle β (turbine housing) 90°
Turbine Wheel NH172002
Comp. Wheel NH175702 $807.84
Back plate NN172500 $188.50
Repair Kit NH179874
Turbine Housing (Water-Cooled) NE977160
Compressor Cover NE974250
Turbine Housing AR 22
Gasket 119593-18110 $14.45
Gasket 119593-18080 $20.90
Gasket (turbine outlet) 119574-13250 has changed to: Yanmar 119574-13251

Applications

1998-01 Yanmar Marine with 6LY2-STE Engine
